Door handle FSB 1163 1735 B

Product code
MB00008686
All prices include VAT
From €369.10
From €369.10
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Bronze door handle with round roses FSB 1163 1735
Manufacturer - FSB (Germany)
Design: Hans Kollhoff

Berlin-based architect Hans Kollhoff devised a handle design for his projects that consciously accommodates design elements of simple, discreet shapes from the 1930s.

    • made for interior doors, adaptable for exterior doors
    • innovative, sturdy FSB ASL® construction with concealed handle guide ring
    • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
    • construction durability tested on 1'000'000 cycles of use
    • integrated spring for lock load release with active angle of 45°
    • concealed handle guide ring
    • stainless steel reinforced sub-construction with stable fixed pivot axis
    • handle length: 125 mm
    • spindle: 8 mm
    • rose diameter: 55 mm
    • rose thickness: 7 mm
    • distance between fixed supporting lugs: 38 mm
    • standard set suitable for door thickness 39-58 mm
    • possible to order sets for door thickness 29-98 mm
    • handle is compatible also with square roses, short and long rectangular backplates
    • suitable door knob can be added to all rose and backplate sets
    • keyhole options: PZ, BB, WC, BAC
    • backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
    • material:
      • bronze (B)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Гарнитур ручек с круглыми розетками PZ, св.бронза
    Гарнитур ручек с круглыми розетками PZ, св.бронза
    Code: SB00001272
    Art. Nr.: 2 12 1163 01310 BG
    Price:
    From €369.10
    In Stock: 0 set

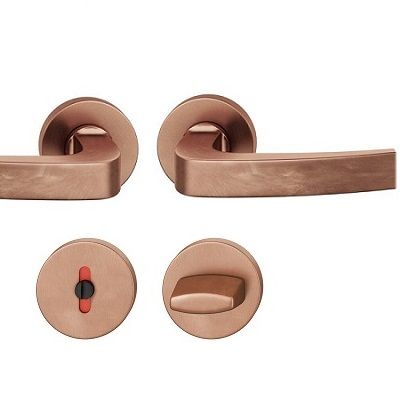

  2. Handle set on round roses WC, light bronze
    Handle set on round roses WC, light bronze
    Code: SB00001278
    Art. Nr.: 2 12 1163 01954 BG
    Price:
    From €427.46
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 7 mm
centring lug diameter 9 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
designer Hans Kollhoff
door direction universal use for DIN right and left hand doors
door thickness 39-58 mm (adaptable 29-38 mm and 59-98 mm)
fastening centre distance 38 mm
fastening type concealed screws
fastening type concealed screw fitting
fastening type concealed screws
fire safety related fireproof model available
handle construction ASL construction with stable fixed pivot axis
handle length 125 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer FSB
material bronze
material: sub-construction reinforced with stainless steel
purpose for interior doors / for exterior doors
set with split roses
suitable for emergency exits related model available, complies with EN 179 requirements
No Questions
