Door handle FSB 1267 1735 ALU
Product code
MB00009691
All prices include VAT
From
€82.52
From
€82.52
Only %1 left
Aluminium door handle with round roses FSB 1267 1735
Manufacturer - FSB (Germany)FSB pays tribute to the revered Ludwig Mies van der Rohe with this design. The FSB 1267 is more than just a replica of an original Mies van der Rohe lever handle, however. While retaining the formal thrust of its forebears, our interpretation also conforms to present-day standards and the requirements of modern architecture.
- handle set with round roses
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 137 mm
- spindle: 8 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- may be used with short or long, rectangular backplates
- matching knob can be added to all rose and backplate sets
- keyhole options: PZ, BB, WC, BAC
- material: anodised aluminium
- available finishes:
-
- F1 natural aluminium tone
- S5 medium dark bronze tone blasted
- S7 dark bronze tone blasted
- S8 black blasted
- powder coated in black RAL9005
- powder coated in white RAL9016
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

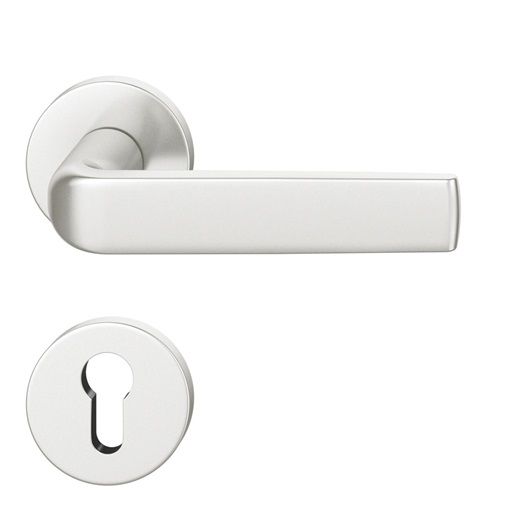

Handle set on round roses PZ, DB 39-58 mm, aluminium F1Code: SB00024924Art. Nr.: 0 12 1267 01310 0105Price:From €99.98In Stock: 0 set
-

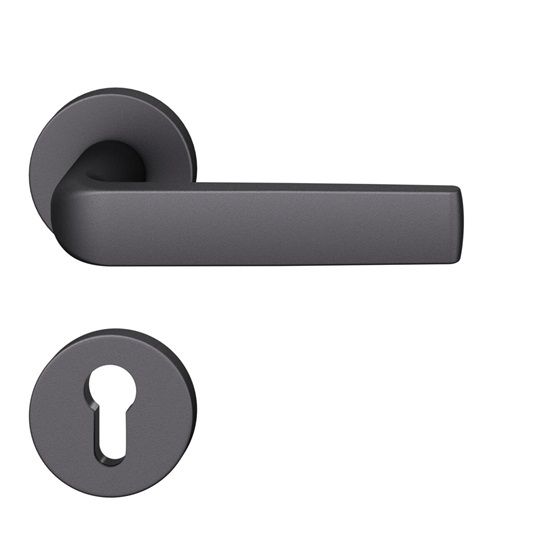

Handle set on round roses PZ, DB 39-58 mm, black blasted S8Code: SB00024955Art. Nr.: 0 12 1267 01310 0810Price:From €129.97In Stock: 0 set
-

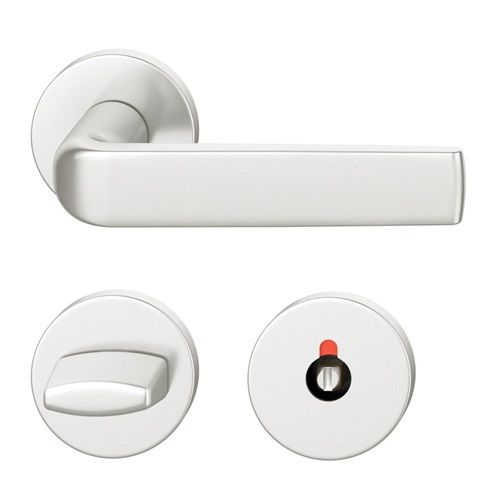

Handle set on round roses WC, DB 39-58 mm, aluminium F1Code: SB00024925Art. Nr.: 0 12 1267 01954 0105Price:From €127.84In Stock: 0 set
-

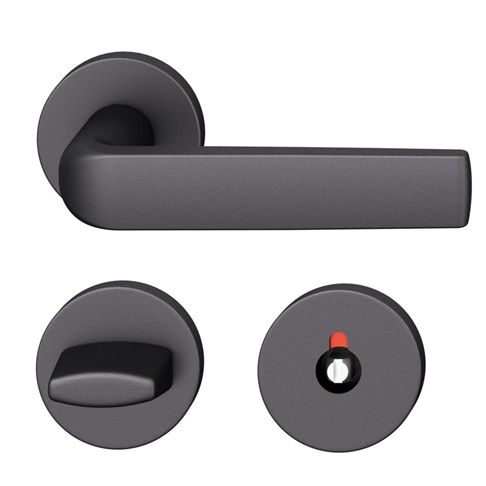

Handle set on round roses WC, DB 39-58 mm, black blasted S8Code: SB00024956Art. Nr.: 0 12 1267 01954 0810Price:From €166.19In Stock: 0 set
-

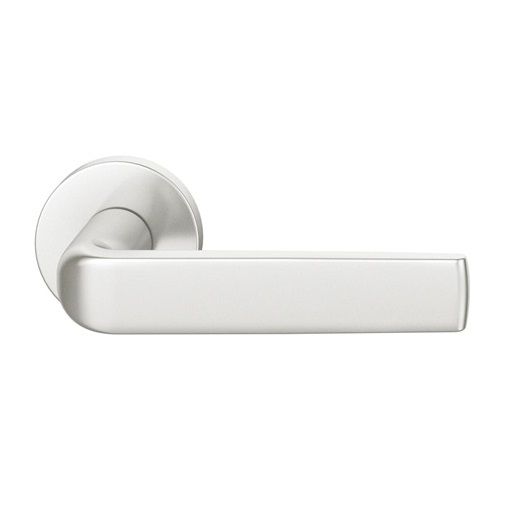

Handle set on round roses BAC, DB 39-58 mm, aluminium F1Code: SB00024922Art. Nr.: 0 12 1267 01320 0105Price:From €82.52In Stock: 0 set
-

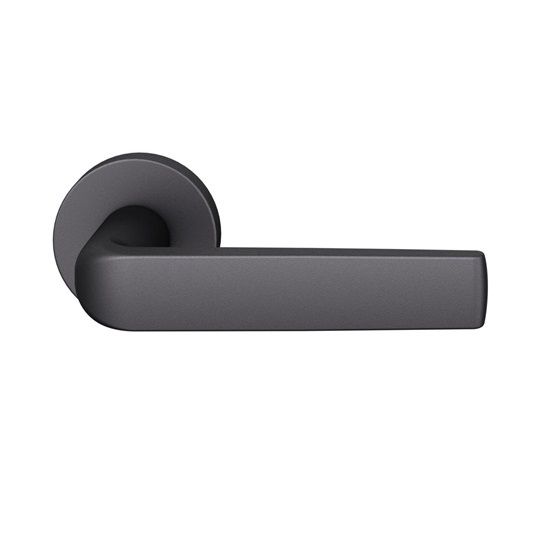

Handle set on round roses BAC, DB 39-58 mm, black blasted S8Code: SB00024954Art. Nr.: 0 12 1267 01320 0810Price:From €107.28In Stock: 0 set
Manufacturer | FSB |
---|---|
material | aluminium anodised blasted |
purpose | for interior doors / for exterior doors |
leaf material | for wooden and metal doors |
construction | lever handles on both sides |
set | split roses |
load capacity | high |
class as per EN 1906 | class 4 |
handle construction | ASL construction with stable fixed pivot axis |
handle spring | integrated holding spring to cushion the push and pull forces |
material: sub-construction | reinforced with stainless steel |
door direction | universal use for DIN right and left hand doors |
compatibility standard | German (DIN) |
door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
locking function | PZ / BB / WC / BAC |
handle length | 135 mm |
handle square spindle size | 8 mm |
backplate/rose shape | round |
backplate/rose size | Ø55 mm |
backplate/rose thickness | 7 mm |
installation type | screw on |
fastening type | concealed screw fitting |
centring lug diameter | 9 mm |
