Door handle INDIA 3108 K7 (Hermes)

Product code
All prices include VAT
From €53.16
From €53.16
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Stainless steel handle with inactive door knob INDIA 3108 (Hermes)
Manufacturer - DIECKMANN (Germany)

    • durable rose sub-construction suitable for heavy-duty doors
    • turnable stainless steel handle firmly fixed into the plastic base rose with a fixation ring
    • integrated spring to cushion the push and pull forces
    • handle guide made of self-lubricating plastic
    • base rose with fixed supporting lugs for metric screws M5 x 30 mm
    • roses: Ø 55 mm
    • fixed supporting lugs: Ø 8 mm
    • additional flush screw in handle for higher level of resistance
    • keyhole options: PZ, BB, WC
    • handle length: 130 mm
    • spindle: 8 mm
    • corresponds to grade 3 in use and durability according to EN 1906, suitable for medium heavy-duty to heavy-duty doors and can be used for public buildings
    • certified by the North Rhine-Westphalia building product certification body (MPA NRW)
    • material:
      • stainless steel
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

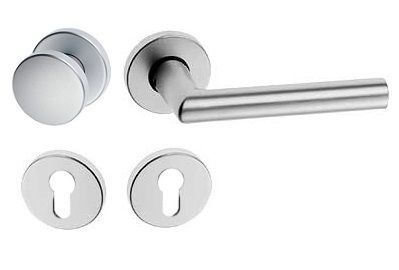

  1. INDIA 3108 (Hermes) Handle set PZ with door knob, class 3, stainless steel
    INDIA 3108 (Hermes) Handle set PZ with door knob, class 3, stainless steel
    Code: SB00011207
    Art. Nr.: 3108/0786/00
    From €53.16
    In Stock: 13 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 8 mm
centring lug diameter 7 mm
class as per EN 1906 class 3
compatibility standard German (DIN)
construction lever handle / inactive door knob
distance from leaf surface to outer edge of handle 69 mm
door direction universal use for DIN right and left hand doors
door knob shape round
door knob size Ø50 mm
door thickness 38-58 mm (WC 38-48 mm)
fastening centre distance 38 mm
fastening elements included in set
fastening type concealed
fastening type covered
fastening type covered
fire safety not suitable for fire safety doors
handle construction with stable fixed pivot axis
handle length 136 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ - with profile cylinder hole
Manufacturer DIECKMANN
material: sub-construction plastic
material stainless steel
purpose for interior doors
set with split roses
