Door handle ONDA 530 PL

Product code
MB00000424
All prices include VAT
From €54.45
From €54.45
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Door handle ONDA 530 PL
Manufacturer - LINEA CALI (Italy)

    • suitable for interior doors with low usage only
    • backplates
    • keyhole options: PZ, BB, WC, BAC
    • centre distance: PZ, BB - 72 mm, WC - 78 mm
    • spindle square: 8 mm
    • handle length: 130 mm
    • backplate size: 250 x 42 mm
    • backplate thickness: 12 mm
    • available finishes:
      • matt bronze tone (BM)
      • brass bronze tone (OG)
      • polished brass (OL)
      • brass satin (OS)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

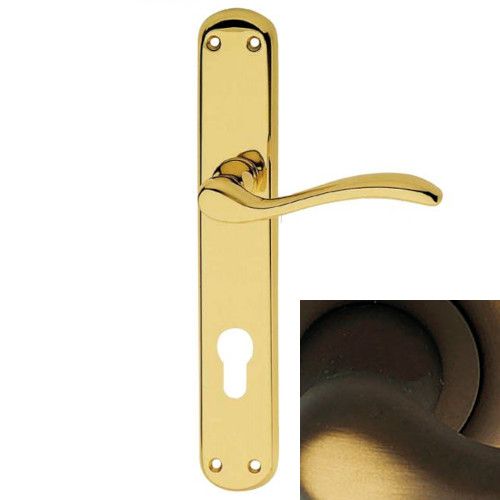

  1. ONDA handle set with backplates PZ, brass matt bronzed
    ONDA handle set with backplates PZ, brass matt bronzed
    Code: SB00010752
    Art. Nr.: 811 530PLPZ72BM
    Price:
    From €54.45
    In Stock: 0 pc.

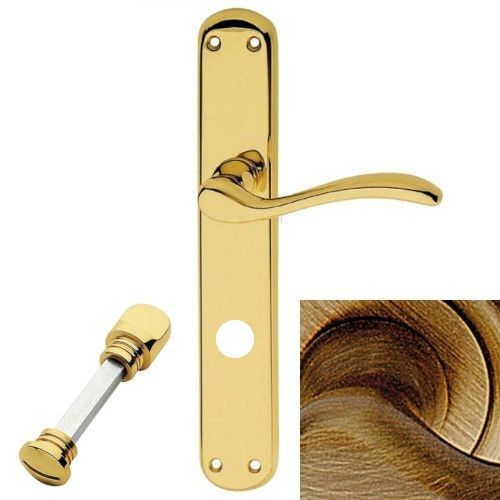

  2. ONDA handle set with backplates WC, bronzed brass
    ONDA handle set with backplates WC, bronzed brass
    Code: SB00010753
    Art. Nr.: 811 530PW78OG
    Price:
    From €71.39
    In Stock: 0 set
backplate/rose shape round
backplate/rose size 250 x 42 mm
backplate/rose thickness 12 mm
centre distance WC 78 mm
centre distance BB 72 mm
centre distance PZ 72 mm
class as per EN 1906 not certified
construction lever handles on both sides
door direction universal use for DIN right and left hand doors
fastening elements included in set
fastening type visible screws
fastening type visible screws
fastening type visible screws
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
handle total length (from rose/backplate edge) 130 mm
installation type screw on
leaf material for wooden and metal doors
load capacity middle
locking function PZ / BB / WC / BAC
Manufacturer LINEA CALI
material brass / steel
purpose for interior doors
set with long backplates
