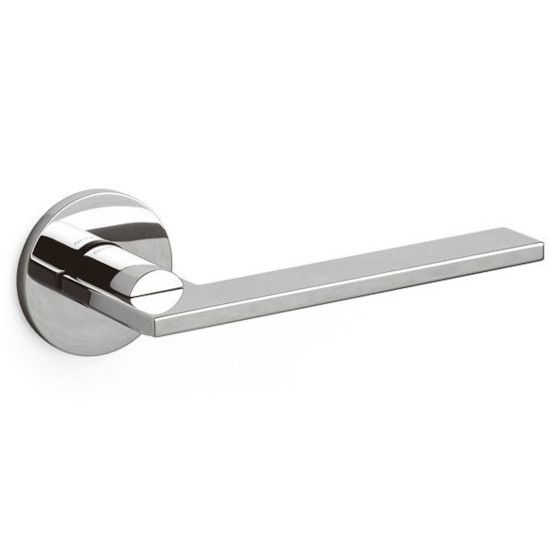

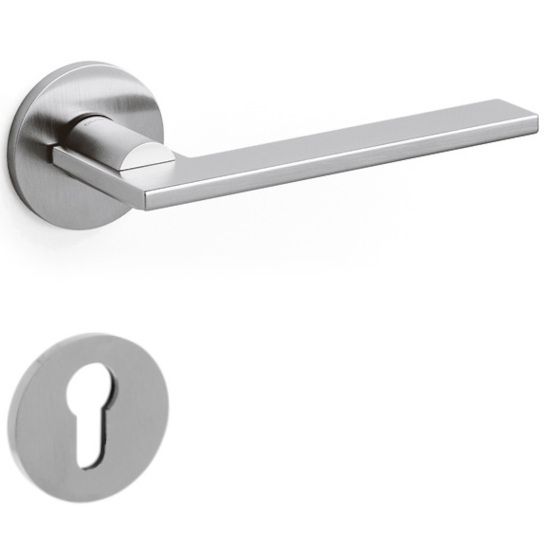

Door handle OPEN M249
Manufacturer - OLIVARI (Italy)
Design: Rem Koolhaas, 2015
-
- patented construction with thin roses (only 5 mm)
- keyhole: BAC
- integrated handle spring
- spindle square: 8 mm
- total length of handle (from outer edge of rose): 150 mm
- rose diameter: 51 mm
- rose thickness: 5 mm
- material:
-
-
- brass chrome-plated / chrome-plated matt (CA)

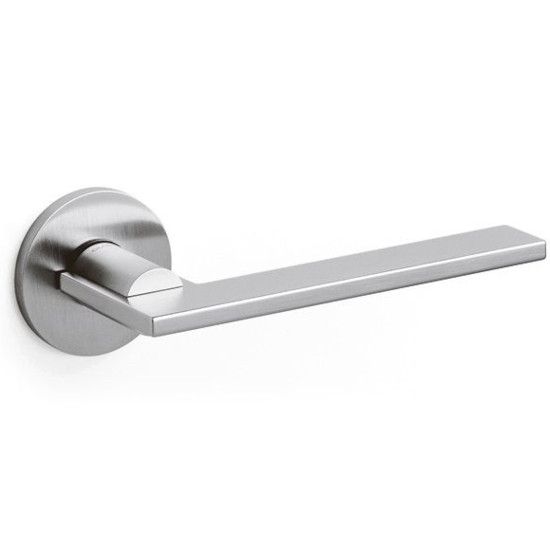

- brass chrome-plated matt (CO)

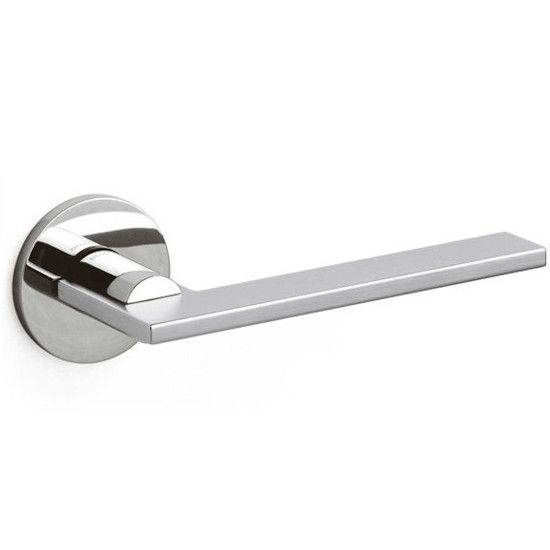

- brass chrome-plated polished (CR)
-
- Products
- Price
- In Stock
- Quantity
-
OPEN handle/rose set.BAC, chrome/matt chromeCode: SB00017905Art. Nr.: M249RSB8B CAPrice:From €210.60In Stock: 0 set
-
OPEN handle/rose set.BAC, matt chromeCode: SB00017906Art. Nr.: M249RSB8B COPrice:From €220.03In Stock: 0 set
-
OPEN handle/rose set.BAC, polished chromeCode: SB00017907Art. Nr.: M249RSB8B CRPrice:From €203.04In Stock: 0 set
backplate/rose shape | round |
---|---|
backplate/rose size | Ø51 mm |
backplate/rose thickness | 5 mm |
class as per EN 1906 | not certified |
compatibility standard | German (DIN) |
construction | lever handles on both sides |
designer | Rem Koolhaas |
distance from leaf surface to outer edge of handle | 62 mm |
door direction | universal use for DIN right and left hand doors |
fastening elements | included in set |
fastening type | covered |
fastening type | covered |
fastening type | concealed |
fire safety | to be certified in door tests as component of equipment |
handle square spindle size | 8 mm |
handle spring | integrated holding spring to cushion the push and pull forces |
handle total length (from rose/backplate edge) | 150 mm |
installation type | screw on |
leaf material | for wooden and metal doors |
load capacity | high |
locking function | PZ / BB / WC / BAC |
Manufacturer | OLIVARI |
material | brass |
material properties (for specific finishes see tech. data) | ultra resistant coating - suitable for use in aggressive environments |
purpose | for interior doors / for exterior doors |
set | with split roses |
