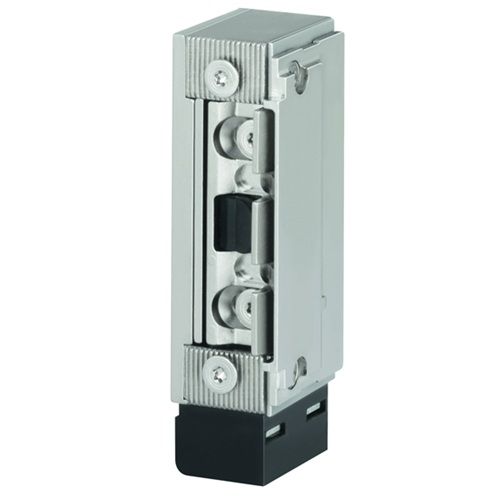

Preload electric strike EFF EFF 332.238 F91

Name: Preload electric strike EFF EFF 332.238 F91
SKU: MB00009807
Price: 618.01 EUR
Availability: InStock

Product code

MB00009807

All prices include VAT

From €618.01

Only %1 left

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

NORMAL OPEN emergency exit electric strike 332.238 Profix2 24V DC

Manufacturer - EFF-EFF (Germany)

mortise EMS for all standard doors and standard locks
function: NORMAL CLOSED (FAIL SECURE)
without daytime latch
features monitoring contact
adjustable (3 mm) static radius latch Profix2
symmetrical shape
compact size, suitable for all types of doors
universal for left and right hand doors
casing height: 78.7 mm, width: 21.5 mm, depth: 27.5 mm
tested in 250,000 continuous test cycles
resistance: 3000 N
operational temperature range from -15°C to +40°C
vertical and horizontal installation available
devices of the Profix 2 series can be used in non-rebated doors without cuttings in frame for the latch
maximum pressure resistance for sealed doors when connected to DC 24V = 3000N
certified according to EN 13637 for use in emergency exit routes
not suitable for use outdoors

Show only in-stock products

All prices include VAT

Manufacturer	EFF-EFF
Series	Eff-Eff 332
electric operation type	NORMAL OPEN (Fail Safe)
strike latch	Profix2 / TOP
weather resistance	not suitable for outdoor use
switch for day function	no
door direction	universal use for DIN right and left hand doors
constant voltage	24V DC
increased PRELOAD force	yes
supply voltage	24 V
anti-intruder security	3000 N
maximum pressure resistance when DC 24V	3000 N
additional functions	monitoring contact
adjustment	adjustable latch
operational temperature range	-15°C līdz +40°C
body dimensions	78.7 x 21.5 x 27.5mm
fire safety	no
EN 13637 certified for emergency exit route control	yes
