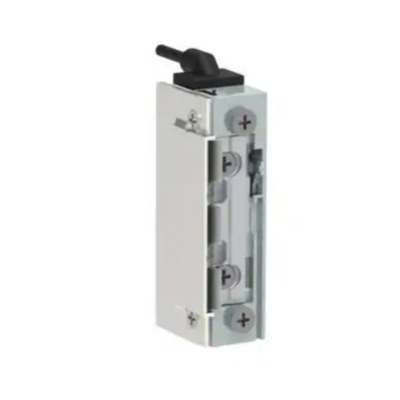

Leak-proof electric strike DORCAS SW99 NDF TOP DOUBLE

Product code
MB00009919
DORCAS
main product photo
All prices include VAT
From €62.92
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

NORMAL CLOSED leak-proof electric strike SW99 NDF TOP DOUBLE 10-24V AC/DC

Manufacturer - DORCAS (Spain)

    • mortise EMS for all standard doors and standard locks
    • function: NORMAL CLOSED (FAIL SECURE)
    • suitable for doors and gates in high-humidity environment
    • made of materials with anti-corrosion treatment
    • power supply: 10-24 V AC/DC
    • daytime latch
    • adjustable radius latch
    • latch adjustment: +2/-1 mm
    • compact size, suitalbe for all types of doors
    • universal for left and right hand doors
    • symmetrical shape
    • casing height: 66 mm, width: 20.5 mm, depth: 25.5 mm
    • tested in 200,000 continuous test cycles
    • resistance: 3500 N
    • operational temperature range from -25°C to +50°C
    • IP rating for electrical parts: IP68
    • vertical and horizontal installation available
    • maximum pressure resistance for sealed doors when connected to relevant voltage:
      • AC 12V = 250N
      • AC 24V = 360N
      • DC 12V = 55N
      • DC 24V = 220N
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. NC Leak-proof electric strike SW99 NDF TOP 10-24V AC/DC
    NC Leak-proof electric strike SW99 NDF TOP 10-24V AC/DC
    Code: SB00028027
    Art. Nr.: SW9902WJE1------
    Price:
    From €62.92
    In Stock: 2 pc.
    Visma Quote
Manufacturer DORCAS
Series Dorcas 99
electric operation type NORMAL CLOSED (Fail Secure)
strike latch TOP
weather resistance suitable for outdoor use
daytime latch yes
door direction universal use for DIN right and left hand doors
IP rating IP68
constant voltage 12V DC
increased PRELOAD with relevant power supply
supply voltage 10-24 V
anti-intruder security 3500 N
maximum pressure resistance when AC 12V 250 N
maximum pressure resistance when AC 24V 360 N
maximum pressure resistance when DC 12V 55 N
maximum pressure resistance when DC 24V 220 N
adjustment adjustable latch
operational temperature range -25°C to +50°C
body dimensions 66 x 20.5 x 25.5 mm
fire safety not suitable for fire safety doors
Certified according to EN 13637 for emergency exit no
