Emergency exit/panic door lock with latch WILKA 467F
Product code
MB00009699
All prices include VAT
From
€88.39
Only %1 left

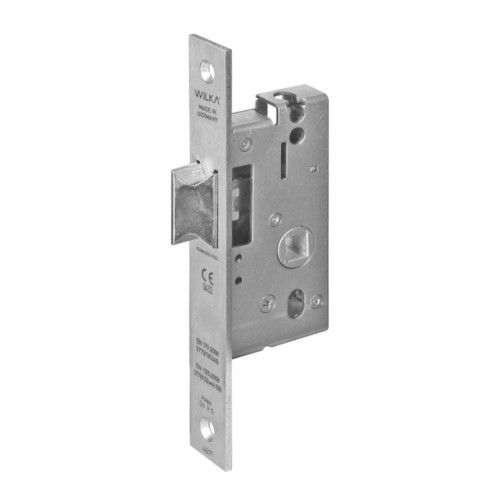

Emergency exit/panic door lock with latch WILKA 467F
Manufacturer - WILKA- non-lockable lock (latch only) for single-leaf and double-leaf frame doors
- corresponds with EN 179 technical requirements for emergency exit doors and with EN 1125 technical requirements for panic doors
- suitable for use only with certified handle sets
- correspond with fire safety requirements according to EN 1634-1 and DIN 4102-18
- galvanised, closed lock case
- non-split handle hole: 9 mm
- reversible nickel latch
- latch projection: 12 mm
- other options for spindle depth D: 30 / 35 / 40 / 45 mm
- casing widht: 45 / 50 / 55 / 60 mm
- end-to-end screw holes
- stainless steel forend, angular: 24 x 146 x 3 mm
Function
Inside: Activation of the lever or touch bar/push bar causes the latch bolt to retract.
Outside: A fi xed door knob is on the outside of the door.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
467F Mēlītes slēdzene profilrāmju evakuācijas durvīm, 35/24x3x146 mm, nerūs.tēraudsCode: SB00022286Art. Nr.: 467F D35 F24Price:From €88.39In Stock: 0 pc.
| Manufacturer | WILKA |
|---|---|
| lock type | single-point lock for hinged doors |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors / for exterior doors |
| leaf material | for framed doors |
| load capacity | high |
| class as per EN 12209 (DIN 18251) | class 3 according to EN 122209 / DIN 18251 |
| suitable for emergency exits | complies with 179 and EN 1125 - emergency/panic door equipment |
| fire safety | complies with EN standard fire safety requirements |
| compatibility standard | German (DIN) |
| possible spindle depth | 30/35/40/45 mm |
| door direction | universal use for DIN right and left hand doors |
| locking function | BAC - without key hole |
| lock case | galvanised closed |
| latch material | nickel-coated |
| sound insulation | no |
| handle square spindle size | 9 mm |
| bundling options | lock compatible with split spindle |
| face plate shape | square |
| face plate width | 24 mm |
| face plate length | 146 mm |
| face plate finish | nerūsējošais tērauds |
