Emergency exit/panic door lock WILKA 4667 E

Product code
MB00000661
All prices include VAT
From €162.83
From €162.83
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

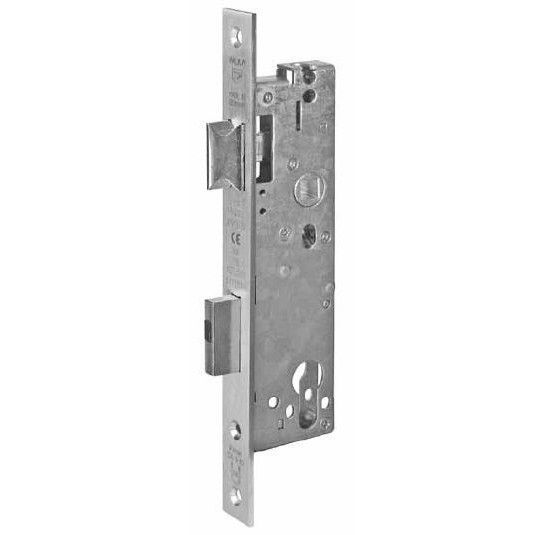

Emergency exit/panic door lock WILKA 4667 E
Manufacturer - WILKA

    • corresponds with EN 179 technical requirements for emergency exit doors and with EN 1125 technical requirements for panic doors
    • suitable for use only with certified handle sets
    • correspond with fire safety requirements according to EN 1634-1 and DIN 4102-18
    • lock function E
    • galvanised, closed lock case
    • PZ keyhole, key-retractable single turn latch
    • non-split handle hole: 9 mm
    • bolt and latch - galvanised metal
    • bolt projection: 15 mm
    • centre distance: 92 mm
    • standard spindle depth D: 30 mm
    • other options for spindle depth D: 30 / 35 / 40 / 45 mm
    • connecting screw holes
    • available finishes: stainless steel (face plate)
    •

NB!
The key must always be taken out of the cylinder after locking/unlocking!





All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 4667 E narrow framed door panic lock 30/F24x3x245, left, stainless steel
    4667 E narrow framed door panic lock 30/F24x3x245, left, stainless steel
    Code: SB00015325
    Art. Nr.: 834 4667/000001
    Price:
    From €162.83
    In Stock: 0 pc.
  2. 4667 E narrow framed door panic lock 30/F24x3x245, right, stainless steel
    4667 E narrow framed door panic lock 30/F24x3x245, right, stainless steel
    Code: SB00015326
    Art. Nr.: 834 4667/000002
    Price:
    From €162.83
    In Stock: 0 pc.
bolt projection 15 mm
centre distance PZ 92 mm
class as per EN 12209 (DIN 18251) class 3 according to EN 122209 / DIN 18251
compatibility standard German (DIN)
door direction when ordering please indicate door swing direction
evacuation function E
face plate width 24 mm
face plate finish nerūsējošais tērauds
face plate length 245 mm
face plate shape square
fire safety complies with EN standard fire safety requirements
handle square spindle size 9 mm
installation type mortise
latch key-retractable
latch material galvanised metal
leaf material for framed doors
load capacity high
lock bolt single turn
lock bolt material galvanised metal
lock case galvanised closed
lock operation mechanical
lock type lock for framed doors
locking function PZ - with profile cylinder hole
Manufacturer WILKA
possible spindle depth 30/35/40/45 mm
purpose for interior doors / for exterior doors
sound insulation no
suitable for emergency exits complies with 179 and EN 1125 - emergency/panic door equipment
Evakuācijas durvju slēgšanas funkcijas. Informācija.
Evakuācijas un trauksmes durvis, kurās iebūvētas pēc EN 179 vai EN 1125 atbilstošas slēdzenes vai vairākpunktu slēdzenes, evakuācijas virzienā bez atslēgas var atvērt vienmēr - arī - aizslēgtā stāvoklī. Evakuācijas funkcija nosaka evakuācijas durvju ...
Durvju vērtņu virzieni saskaņā ar DIN 107
Vērtnes virzienu nosaka tajā durvju pusē, kur aizvērtā stāvoklī ir redzamas eņģes: redzamas eņģes vērtnes labajā pusē = DIN labā vērtne redzamas eņģes vērtnes kreisajā pusē = DIN kreisā vērtne
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Galvenie slēgšanas veidi: PZ - profilciindra atslēgas caurums - izmantojams iekšdurvīm un ārdurvīm BB - atslēgas caurums vienkāršai istabas atslēgai - izmantojams iekšdurvīm WC - slēdzene ar aizgriezni tualetēm / vannasistabām BAC (F) - slēdzene...
Slēdzenes uzbūve un svarīgākie parametri.
Svarīgākie parametri, kas nepieciešami slēdzenes izvēlē: slēgšanas veids  ass dziļums (D) centru attālums priekšplāksnes platums un garums
Durvju furnitūras kopšanas norādījumi.
1. Slēdzeņu un furnitūras virsmas ir regulāri jākopj atbilstoši to materiālam un apstrādei. Metāla virsmām (nerūsējošais tērauds, cinkojums utt.) izmantot tikai atšķaidītus, maigus, ph-neitrālus tīrīšanas līdzekļus. Nekādā gadījumā neizmantot agresīvus...
