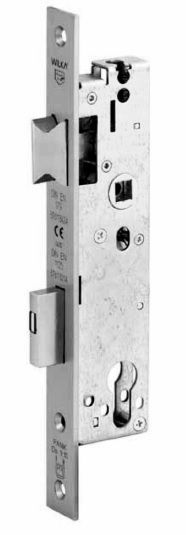

Emergency exit/panic door lock WILKA 4677 B
Manufacturer - WILKA

    • corresponds with EN 179 technical requirements for emergency exit doors and with EN 1125 technical requirements for panic doors
    • suitable for use only with certified handle sets
    • correspond with fire safety requirements according to EN 1634-1 and DIN 4102-18
    • lock function B
    • galvanised, closed lock case
    • PZ keyhole, single turn latch, not key-retractable
    • split handle hole: 9 mm
    • bolt and latch - galvanised metal
    • bolt projection: 15 mm
    • centre distance: 92 mm
    • standard spindle depth D: 30 mm
    • other options for spindle depth D: 30 / 35 / 40 / 45 mm
    • connecting screw holes
    • lock compatible with divided emergency door handle spindle and matching handles
    • available finishes: stainless steel (face plate)
    •

NB!
The key must always be taken out of the cylinder after locking/unlocking!





All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 4677 B narrow framed panic door lock 30/24x3x245, left, stainless steel
    4677 B narrow framed panic door lock 30/24x3x245, left, stainless steel
    Code: SB00015331
    Art. Nr.: 834 4677/000001
    Price:
    From €229.71
    In Stock: 1 pc.
  2. 4677 B narrow framed door panic lock 35/24x3x245, left, stainless steel
    4677 B narrow framed door panic lock 35/24x3x245, left, stainless steel
    Code: SB00015333
    Art. Nr.: 834 4677/000003
    Price:
    From €229.71
    In Stock: 0 pc.
  3. 4677 B narrow framed panic door lock 30/24x3x245,right, stainless steel
    4677 B narrow framed panic door lock 30/24x3x245,right, stainless steel
    Code: SB00015332
    Art. Nr.: 834 4677/000002
    Price:
    From €229.71
    In Stock: 0 pc.
  4. 4677 B narrow framed door panic lock 35/24x3x245, right, stainless steel
    4677 B narrow framed door panic lock 35/24x3x245, right, stainless steel
    Code: SB00015334
    Art. Nr.: 834 4677/000004
    Price:
    From €229.71
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity

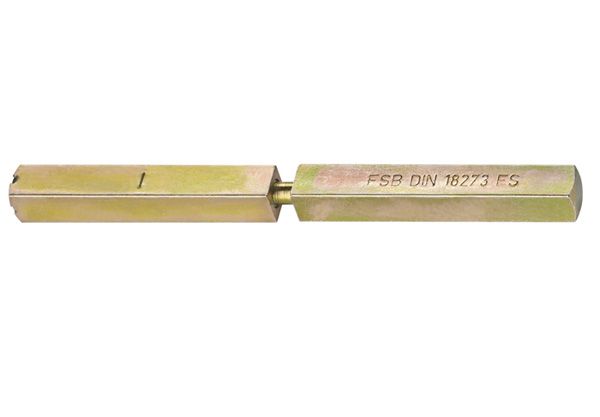

  1. ANTI-PANIK split handle spindle for panic doors 9x64/59 mm
    ANTI-PANIK split handle spindle for panic doors 9x64/59 mm
    Code: SB00000516
    Art. Nr.: 2 05 0125 00606 ZN
    Price:
    From €20.74
    In Stock: 0 pc.
  2. ANTI-PANIK Spindle, split, for emergency exit doors 60/60x8/9/8 mm
    ANTI-PANIK Spindle, split, for emergency exit doors 60/60x8/9/8 mm
    Code: SB00004787
    Art. Nr.: 54 32.23.1570
    Price:
    From €11.58
    In Stock: 14 pc.
  3. ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
    ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
    Code: SB00011057
    Art. Nr.: 813 0562 PT
    Price:
    From €9.14
    In Stock: 16 pc.
bolt projection 15 mm
bundling options lock compatible with split spindle
centre distance PZ 92 mm
class as per EN 12209 (DIN 18251) class 3 according to EN 122209 / DIN 18251
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
evacuation function B
face plate width 24 mm
face plate finish nerūsējošais tērauds
face plate length 245 mm
face plate shape square
fire safety complies with EN standard fire safety requirements
handle square spindle size 9 mm
installation type mortise
latch not key-retractable
latch material galvanised metal
leaf material for framed doors
load capacity high
lock bolt single turn
lock bolt material galvanised metal
lock case galvanised closed
lock operation mechanical
lock type lock for framed doors
locking function PZ - with profile cylinder hole
Manufacturer WILKA
possible spindle depth 30/35/40/45 mm
purpose for interior doors / for exterior doors
sound insulation no
suitable for emergency exits complies with 179 and EN 1125 - emergency/panic door equipment
