EVO EV 835E50 Adjustable hydraulic hinge for glass interior and exterior doors

Product code
MB00009842
SIMONSWERK View catalogue of manufacturer
main product photo
All prices include VAT
From €284.59
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

EVO EV 835E50 Adjustable hydraulic hinge for glass interior and exterior doors

Manufacturer  - SIMONSWERK GROUP / COLCOM (Italy)

  • hinge for all-glass doors with hydraulic self-closing function ensuring soft and controlled door closure
  • connection: glass/glass
  • suitable for single-action doors and exterior doors that are protected from severe weather conditions (such as heavy rainstorms etc.)
  • also fit for use indoors for dividing doors in spaces such as medical practices or in large open-plan spaces
  • elegant and smart solution for modern office and public spaces with high aesthetic and functional standards
  • certified according to EN 1154, grade 3 / 500 000 test cycles
  • adjustable closing speed according to door weight, width and user needs
  • constant braking control



Technical data

  • max door opening angle: 180°
  • automated closing from 80°
  • hold open: 90°
  • rebate depth: 30 - 50 mm
  • glass thickness: 8 - 21.52 mm
  • max door leaf weight: 100 kg (2 hinges per leaf)
  • min leaf width: 800 mm
  • max leaf width: 1000 mm
  • operational temperature range: from -15 °C to +40 °C
  • hinge with loading - to be used on doors with closing stop
  • for installation in aggressive environment (such as high levels of humidity, acid or saline), please consult product distributors first
  • available finishes:
    • EV1 natural silver tone, anodised 20μm (002)
    • chrome tone, polished (014)
    • black, satin anodised (005)
    • stainless steel tone PVD, matt (013)
    • gold tone PVD, polished (016)
    • RAL 9005 black, electrostatic coated (062)
    • RAL 9016 white, electrostatic coated (095)

Classification code according to EN 1154:

3 8 3/6* 0 1 4

*Due to the small hinge size, the torques achieved, depending on door size, may differ from the EN 1154:2006 indicated value. For this reason, the third value of the code is a split number. Its front digit indicates the torques achieved and the efficiency, the rear digit indicates the maximum door weight in accordance with EN 1154:2006

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

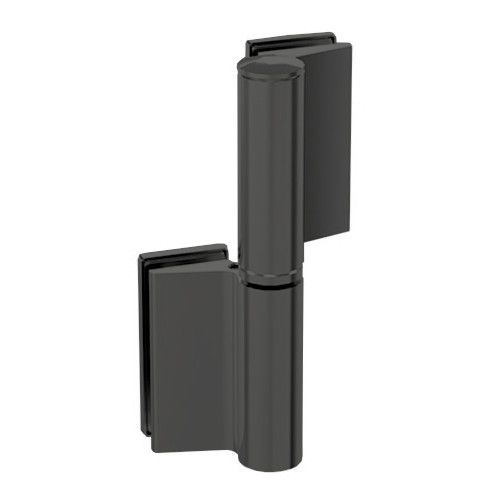

  1. EV 835E50 Adjustable hydraulic hinge glass/glass, anodised, satin black (005), LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, anodised, satin black (005), LEFT
    Code: SB00026559
    Art. Nr.: 835E50L05
    Price:
    From €287.64
    In Stock: 0 pc.
    Visma Quote
  2. EV 835E50 RAdjustable hydraulic hinge glass/glass, anodised, satin black (005), RIGHT
    EV 835E50 RAdjustable hydraulic hinge glass/glass, anodised, satin black (005), RIGHT
    Code: SB00026560
    Art. Nr.: 835E50R05
    Price:
    From €287.64
    In Stock: 0 pc.
    Visma Quote
  3. EV 835E50 Adjustable hydraulic hinge glass/glass, matt white RAL9016, LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, matt white RAL9016, LEFT
    Code: SB00026571
    Art. Nr.: 835E50L95
    Price:
    From €342.53
    In Stock: 0 pc.
    Visma Quote

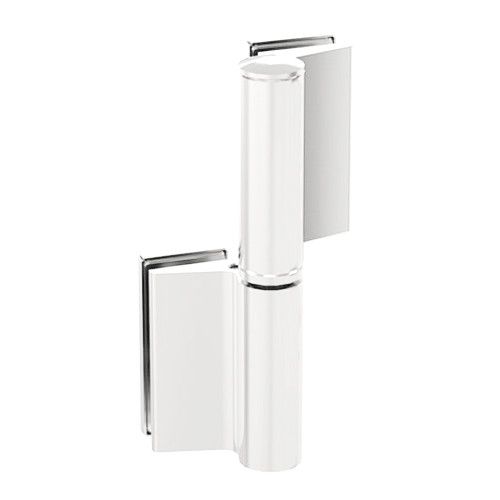

  4. EV 835E50 Adjustable hydraulic hinge glass/glass, matt white RAL9016, RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, matt white RAL9016, RIGHT
    Code: SB00026572
    Art. Nr.: 835E50R95
    Price:
    From €342.53
    In Stock: 0 pc.
    Visma Quote
  5. EV 835E50 Adjustable hydraulic hinge glass/glass, matt black RAL9005, LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, matt black RAL9005, LEFT
    Code: SB00026569
    Art. Nr.: 835E50L62
    Price:
    From €311.02
    In Stock: 0 pc.
    Visma Quote

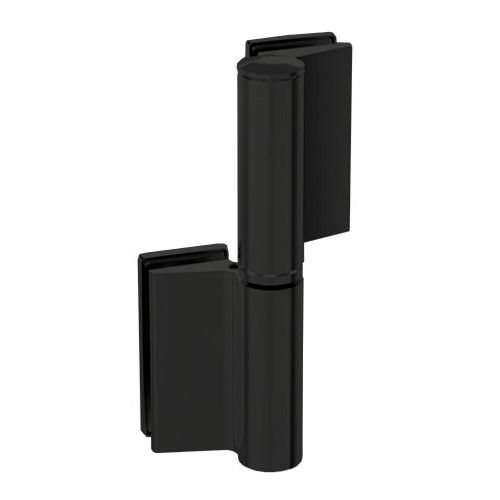

  6. EV 835E50 Adjustable hydraulic hinge glass/glass, matt black RAL9005, RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, matt black RAL9005, RIGHT
    Code: SB00026570
    Art. Nr.: 835E50R62
    Price:
    From €311.02
    In Stock: 0 pc.
    Visma Quote

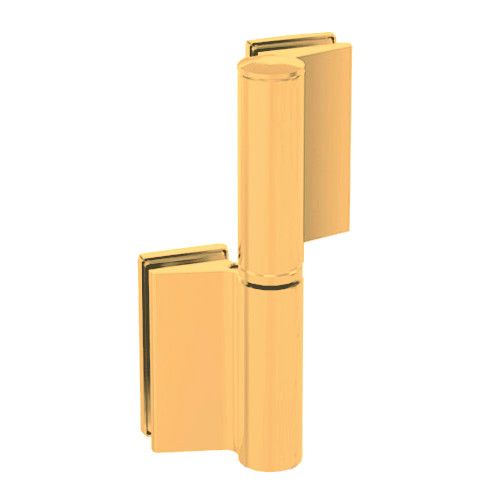

  7. EV 835E50 Adjustable hydraulic hinge glass/glass, matt gold tone (017), LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, matt gold tone (017), LEFT
    Code: SB00026567
    Art. Nr.: 835E50L17
    Price:
    From €313.05
    In Stock: 0 pc.
    Visma Quote
  8. EV 835E50 Adjustable hydraulic hinge glass/glass, matt gold tone (017), RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, matt gold tone (017), RIGHT
    Code: SB00026568
    Art. Nr.: 835E50R17
    Price:
    From €313.05
    In Stock: 0 pc.
    Visma Quote
  9. EV 835E50 Adjustable hydraulic hinge glass/glass, polished chrome tone (014), LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, polished chrome tone (014), LEFT
    Code: SB00026563
    Art. Nr.: 835E50L14
    Price:
    From €297.81
    In Stock: 0 pc.
    Visma Quote

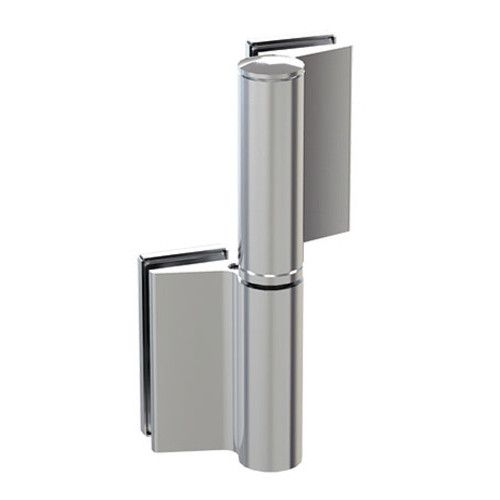

  10. EV 835E50 Adjustable hydraulic hinge glass/glass, polished chrome tone (014), RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, polished chrome tone (014), RIGHT
    Code: SB00026564
    Art. Nr.: 835E50R14
    Price:
    From €297.81
    In Stock: 0 pc.
    Visma Quote
  11. EV 835E50 Adjustable hydraulic hinge glass/glass, stainless steel tone PVD (013), LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, stainless steel tone PVD (013), LEFT
    Code: SB00026561
    Art. Nr.: 835E50L13
    Price:
    From €306.95
    In Stock: 0 pc.
    Visma Quote

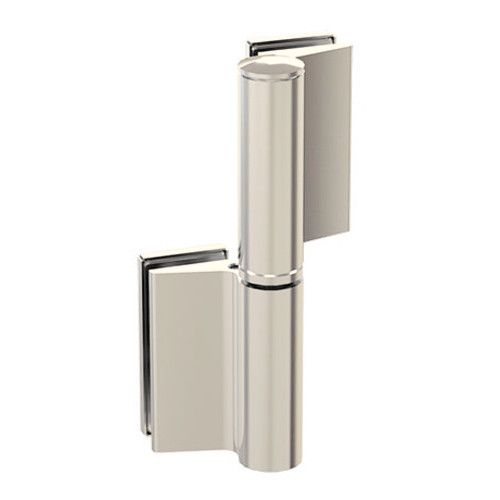

  12. EV 835E50 Adjustable hydraulic hinge glass/glass, stainless steel tone PVD (013), RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, stainless steel tone PVD (013), RIGHT
    Code: SB00026562
    Art. Nr.: 835E50R13
    Price:
    From €306.95
    In Stock: 0 pc.
    Visma Quote
  13. EV 835E50 Adjustable hydraulic hinge glass/glass, gold tone polished PVD (016), LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, gold tone polished PVD (016), LEFT
    Code: SB00026565
    Art. Nr.: 835E50L16
    Price:
    From €313.05
    In Stock: 0 pc.
    Visma Quote

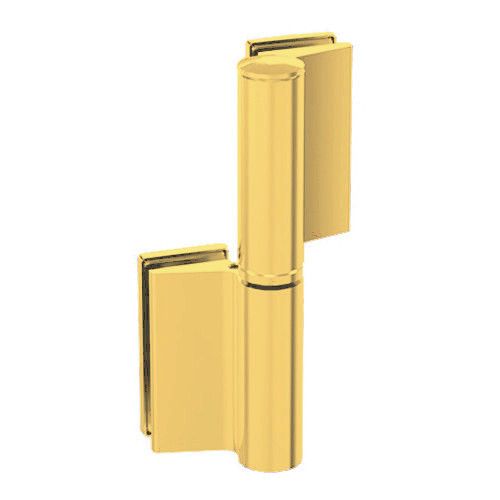

  14. EV 835E50 Adjustable hydraulic hinge glass/glass, gold tone polished PVD (016), RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, gold tone polished PVD (016), RIGHT
    Code: SB00026566
    Art. Nr.: 835E50R16
    Price:
    From €313.05
    In Stock: 0 pc.
    Visma Quote

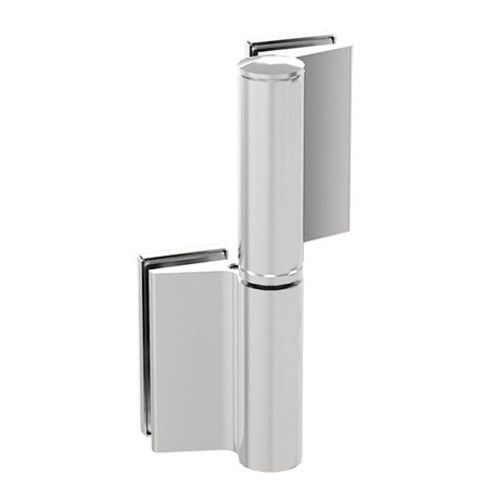

  15. EV 835E50 Adjustable hydraulic hinge glass/glass, natural silver tone, anodised (002), LEFT
    EV 835E50 Adjustable hydraulic hinge glass/glass, natural silver tone, anodised (002), LEFT
    Code: SB00026557
    Art. Nr.: 835E50L02
    Price:
    From €284.59
    In Stock: 0 pc.
    Visma Quote
  16. EV 835E50 Adjustable hydraulic hinge glass/glass, natural silver tone, anodised (002), RIGHT
    EV 835E50 Adjustable hydraulic hinge glass/glass, natural silver tone, anodised (002), RIGHT
    Code: SB00026558
    Art. Nr.: 835E50R02
    Price:
    From €284.59
    In Stock: 0 pc.
    Visma Quote
Manufacturer SIMONSWERK
Series EVO
connection glass / glass
hinge type self-closing hinge
shape L-veida abpusēja
leaf material glass
leaf maximum weight 100 kg
class as per EN 12209 (DIN 18251) Klase 3 pēc EN 1154
adjustment adjustable
operational temperature range -15 °C to +40 °C
fire safety not suitable for fire and smoke safety doors
material properties (for specific finishes see tech. data) PVD coating - suitable for use in aggressive environments
Aizvēršanās funkcijas darbības diapazons 80° - 0°
anti-corrosion resistance Klase 4 pēc EN 1154 - ļoti augsta
hold open 90°
glass thickness 8 - 21.52 mm
leaf width 800 - 1000 mm
