FH 19 WC fire-resistant lock for bathroom doors
Product code
MB00010108
All prices include VAT
From
€49.61
Only %1 left
FH 19 WC fire-resistant lock for bathroom doors
Manufacturer - SSF (Germany)
- mortise lock for a WC / bathroom doors
- complies with the requirements for fire- and smoke-resistant doors in accordance with EN 12209 and DIN 18251-1
- category of use 3 according to EN 12209
- galvanised steel follower with polyamide bushings
- latch and deadbolt made of galvanised steel, with thermally bonded polyamide guide elements for noise reduction in the lock and on the latch
- fully enclosed, galvanised lock case
- type of closure: WC
- centre distance: 78 mm
- follower size: 9 mm
- backset: 55 / 60 / 65 mm
- rounded stainless steel faceplate
- faceplate length: 235 mm
- faceplate width: 20 / 24 mm
- please specify the door handing when ordering
Classification key in accordance with EN 12209:
| 3 | M | 5 | 1 | 0 | G | 0 | H | G | 2 | 0 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
FH 19 65/78/9-8/24R fire-resistant WC lock, stainless steel, LEFTCode: SB00025343Art. Nr.: A1907 8L/541 FHPrice:From €49.61In Stock: 0 pc. -

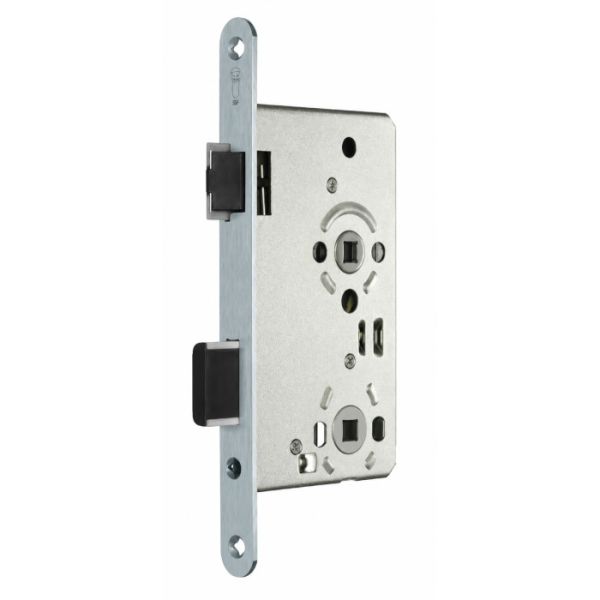

FH 19 65/78/9-8/24R fire-resistant WC lock, stainless steel, RIGHTCode: SB00029768Art. Nr.: A1907 8L/542 FHPrice:From €49.61In Stock: 1 pc.
| Manufacturer | SSF |
|---|---|
| lock type | single-point lock for hinged doors |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| load capacity | high |
| fire safety | complies with EN standard fire safety requirements |
| Compatibility standard | German (DIN) |
| possible spindle depth | 55 / 60 / 65 mm |
| door direction | when ordering please indicate door swing direction |
| locking function | WC - with turning knob for WC and bathrooms |
| centre distance WC | 78 mm |
| lock case | galvanised closed |
| latch material | galvanized steel |
| lock bolt material | galvanised steel |
| sound insulation | latch and bolt with sound insulation |
| handle square spindle size | 9 mm |
| face plate shape | rounded |
| face plate width | 24 mm |
| face plate length | 235 mm |
| face plate finish | nerūsējošais tērauds |
