FLUX+FLAT central ventilation device with heat recovery
Product code
MB00009857
All prices include VAT
From
€2,759.60
Only %1 left
Flux + Flat ERV central ventilation device with heat recovery
Manufacturer - RENSON (Belgium)
- demand-driven ventilation device with heat recovery
- controlled air supply and exhaust for private homes and apartments
- mechanical supply of fresh, filtered air to dry rooms, and mechanical extraction of polluted air from humid rooms
- air flow is automatically adjusted to air quality, which is continuously measured in the extracted air with temperature, humidity, CO2 and VOC sensors
- optimal indoor climate is achieved using minimum air flow rate and lowest possible energy consumption
- maintains constant balance between air supply and exhaust
- max nominal air throughput: 225 / 275 / 370 m3/h at air pressure of 200 Pa
- Breeze function reduces the risk of overheating in apartments
- energy-efficient device with quiet motor
- operated via app
- CE certified
- suitable for new developments and renovation projects
- simple and convenient installation that can be done single-handedly
Technical data
- connection diameter: 160 mm
- sensors: H2O, VOC, CO2
- height: 745 mm
- width: 300 mm
- installed on ceiling or vertically on wall
- heat recovery rate: up to 91%
- sound insulation: up to 50,5 dB(A)
- max electricity consumption: 2 x 42 W (225 m3/h) / 2 x 53 W (275 m3/h) / 2 x 83 W (370 m3/h)
- supply voltage: 230 V AC -15% / +10% (50 Hz, 60 Hz)
- operational temperature range: 0 °C to +40°C.
- weight: 25 kg
- right or left position can be set via installation app
- compact connection to air ducts with 2 connections on each side
- installation app with semi-automated calibration significantly reduces installation time
- standard set includes 2 pc. G4 filters Classic Protection ISO Coarse 65 %
- optionally available: 1 pc. F7 filter Urban Protection ePM1 55 % and 1 pc. G4 filter Classic Protection ISO Coarse 65 %
- includes power cable 2 m
- energy efficiency class: A+

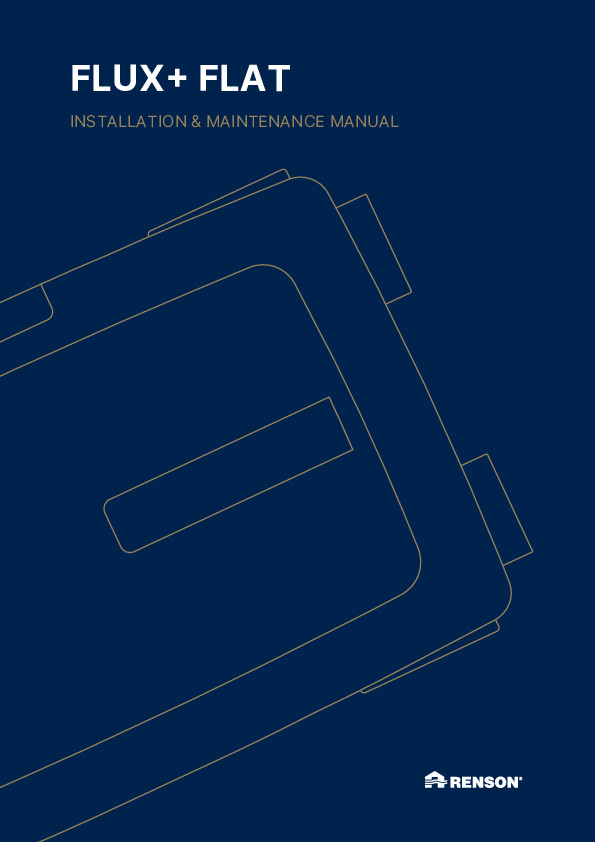

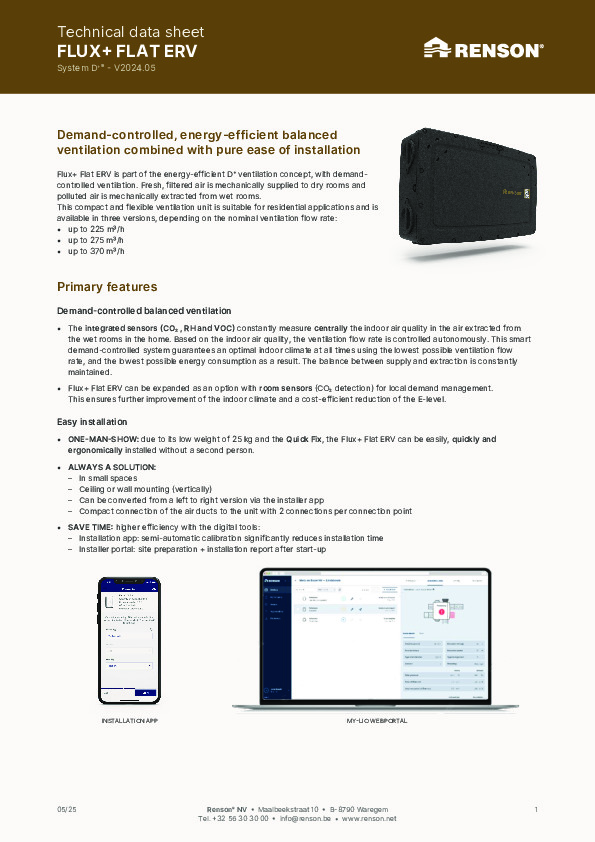

TECHNICAL DOCUMENTS
VIDEO - FLUX + FLAT installation (NL)
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Flux+ Flat 225 central ventilation unit with built-in CO2, humidity, and odor sensorsCode: SB00026749Price:From €2,759.60In Stock: 0 pc. -
Flux+ Flat 275 central ventilation unit with built-in CO2, humidity, and odor sensorsCode: SB00026750Price:From €2,846.56In Stock: 0 pc.
-
Flux+ Flat 370 central ventilation unit with built-in CO2, humidity, and odor sensorsCode: SB00026751Price:From €2,990.83In Stock: 0 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
Flux+ Flat Dry siphonCode: SB00026752Art. Nr.: 17792Price:From €44.50In Stock: 0 kit
| Manufacturer | RENSON |
|---|---|
| ventilation type | active ventilation |
| ventilation device type | for building into external walls/ceiling |
| operating mode | air intake and extraction |
| device operating mode control | automatic |
| device control | centralised, with installation app |
| air throughput | 225 / 275 / 370 m3/h |
| installation | on wall or ceiling |
| supply voltage | 230 V AC -15 % / +10 % (50 Hz, 60 Hz) |
| energy efficiency class | A+ |
| electrically operated blower | yes |
| with heat recovery | yes |
| humidity sensor | yes |
| air quality (VOC/CO2) sensor | yes |
| suitable for bedrooms | yes |
| suitable for bathrooms | yes |
| weight | 25 kg |
| body dimensions | 1188 x 745 x 300 mm |
| sound insulation | 43.5 / 46.0 / 50.5 dB |
| routing hole amount and size | 4 x 160 mm |
| operational temperature range | 0 °C to +40 °C |
| colour / finish | black |
