Door handle FSB 1244 1735 NT
Product code
MB00008690
All prices include VAT
From
€173.64
From
€173.64
Only %1 left

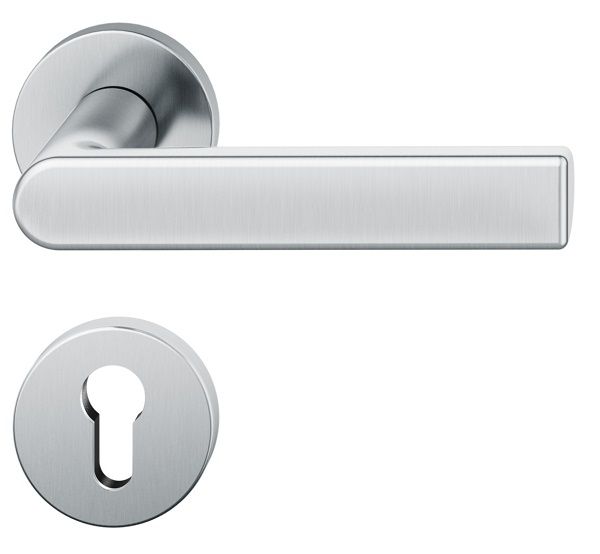

Stainless steel door handle with round roses FSB 1244 1735
Manufacturer - FSB (Germany)
Design: Architecture studio GMP
True to the adage that simple is (generally) right, the architecture studio GMP have designed a door lever handle with particularly pared-down credentials. Their FSB 1244 door handle model incorporates the simplest of geometric forms. Its linear front face cites the curvature of its neck and is terminated by a rectangular section. The grip’s cross-section is made up of half a circle and half a square, a compound shape that provides a pleasurable gripping substance for the hand.
Manufacturer - FSB (Germany)
Design: Architecture studio GMP
True to the adage that simple is (generally) right, the architecture studio GMP have designed a door lever handle with particularly pared-down credentials. Their FSB 1244 door handle model incorporates the simplest of geometric forms. Its linear front face cites the curvature of its neck and is terminated by a rectangular section. The grip’s cross-section is made up of half a circle and half a square, a compound shape that provides a pleasurable gripping substance for the hand.
-
- handle set with round roses
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 140 mm
- spindle: 8 mm
- rose diameter: 55 mm
- rose thickness: 7 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- standard set with round roses, compatible with short or long rectangular backplates
- suitable door knob can be added to all rose and backplate sets
- keyhole options: PZ, BB, WC, BAC
- material: stainless steel
- available finishes:
-
-
- brushed satin matt (standard)
- polished (on request)
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Handle set on round roses PZ, stainless steel mattCode: SB00001347Art. Nr.: 0 12 1244 01310 6204Price:From €204.13In Stock: 0 set -
Handle set on round roses BB, stainless steel mattCode: SB00001345Art. Nr.: 0 12 1244 01302 6204Price:From €204.13In Stock: 0 set
-
Handle set on round roses BAC, stainless steel mattCode: SB00001350Art. Nr.: 0 12 1244 01320 6204Price:From €173.64In Stock: 0 set
| backplate/rose size | Ø55 mm |
|---|---|
| backplate/rose thickness | 7 mm |
| centring lug diameter | 9 mm |
| class as per EN 1906 | class 4 |
| construction | lever handles on both sides |
| designer | architecture studio GMP |
| door direction | universal use for DIN right and left hand doors |
| door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
| fastening centre distance | 38 mm |
| fastening type | concealed screws |
| fastening type | concealed screws |
| fastening type | concealed screw fitting |
| fire safety | related fireproof model available |
| handle construction | ASL construction with stable fixed pivot axis |
| handle length | 140 mm |
| handle square spindle size | 8 mm |
| handle spring | integrated holding spring to cushion the push and pull forces |
| installation type | screw on |
| leaf material | for wooden and metal doors |
| load capacity | high |
| locking function | PZ / BB / WC / BAC |
| Manufacturer | FSB |
| material: sub-construction | reinforced with stainless steel |
| material | stainless steel |
| set | with split roses |
| suitable for emergency exits | related model available, complies with EN 179 requirements |
