Receiver STV113/56 3-D BREIT
Product code
MB00000494
All prices include VAT
From
€25.54
From
€25.54
Only %1 left

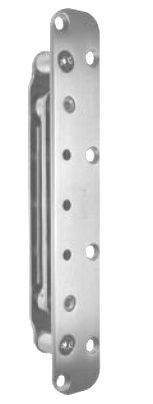

Receiver STV113/56 3-D BREIT
Manufacturer - BaSys (Germany)
Manufacturer - BaSys (Germany)
-
- suitable for hollow-core door frames
- 3-dimensional adjustment, 3 mm in all directions
- integrated pull-out protection
- solid steel or stainless steel front plate, material thickness: 4 mm
- compatible with all BaSys heavy duty hinges with 56 mm connection
- size: 220 x 35 mm
- screws: Spax 5
- max load: 200 kg (pair)
- material: stainless steel
Montāžas instrukcijas
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
STV113/56 3-D BREIT receiver, st.steelCode: SB00016200Art. Nr.: 039456Price:From €25.54In Stock: 6 pc.
| width | 35 mm |
|---|---|
| adjustment | adjustable |
| anti-corrosion resistance | class 4 according to EN 1935 - very high |
| anti-intruder protection | yes |
| base assortment | Yes |
| bundling options | compatible with all BaSys heavy duty hinges with grip |
| class as per EN 1935 | not certified |
| corner radius | R12 |
| door construction | for non-rebated and rebated doors |
| door direction | universal use for DIN right and left hand doors |
| fastening elements | must be ordered separately |
| fire safety | suitable for fire and smoke safety doors |
| height | 220 mm |
| hinge shape | rounded |
| hinge type | heavy duty hinge receiver |
| installation template | available to order |
| leaf maximum weight | 200 kg |
| load capacity | very high |
| maintenance | recommended 1x a year |
| Manufacturer | BASYS |
| material thickness | 7 mm |
| material | stainless steel |
| suitable for aluminium frames | suitable |
| suitable for industrial frames | suitable |
| suitable for steel frames | suitable |
| suitable for timber frames | suitable |
