Automatic door seal ATHMER RAINSTOP L-24/20 WS

Product code
MB00001762
All prices include VAT
From €114.50
From €114.50
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Automatic door seal ATHMER RAINSTOP L-24/20 WS
Manufacturer - Athmer (Germany)

    • automatic drop seal for wooden, metal and aluminium hinged doors
    • conforms with barrier-free building requirements in accordance with DIN 18024, combined with zero threshold (Gutmann Zero) provides barrier-free solution with completely even floor
    • protects against cold, wind, driving rain, smoke, dust and smells; reduces noise
    • quick and safe installation, easy maintenance, tool-free adjustment
    • noise reduction up to 54 dB
    • self-extinguishing silicone profile, corresponds with fire and smoke safety door requirements
    • automatically evens height and levels, adapts to changing weather conditions
    • suitable for both left and right hand doors
    • single-sided actuation: fixing latch either hinge side or lock side
    • integrated overload protection
    • max length: 2000 mm
    • min length (non-reducible): 230 mm
    • standard lengths: 750, 900, 1050, 1200, 1250 mm
    • shortening range: 150 mm
    • max seal throw: 16 mm
    • groove: 24 x 20 mm
    • outer profile: anodised silver tone
    • option: factory pre-adapted for use with inactive door bolt or automatic flush bolt (Ø up to 10 mm)

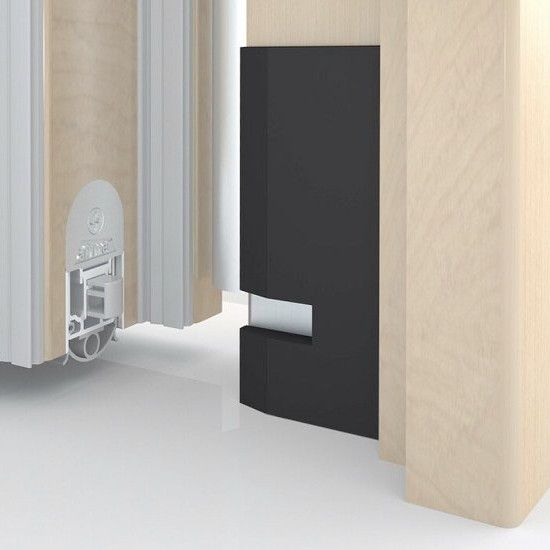

    • special fixing element for corners with water-repellent foam for installation into wooden doors
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Automatic seal for exterior doors Rainstop L-24/20 WS 750mm, single-sided
    Automatic seal for exterior doors Rainstop L-24/20 WS 750mm, single-sided
    Code: SB00006790
    Art. Nr.: 1-955-0750
    Price:
    From €114.50
    In Stock: 0 pc.
  2. Automatic seal for exterior doors Rainstop L-24/20 WS 1050mm, single-sided
    Automatic seal for exterior doors Rainstop L-24/20 WS 1050mm, single-sided
    Code: SB00006792
    Art. Nr.: 1-955-1050
    Price:
    From €121.93
    In Stock: 1 pc.
  3. Automatic seal for exterior doors Rainstop L-24/20 WS 1200mm, single-sided
    Automatic seal for exterior doors Rainstop L-24/20 WS 1200mm, single-sided
    Code: SB00006794
    Art. Nr.: 1-955-1200
    Price:
    From €125.63
    In Stock: 0 pc.
activation type one-sided
anti-corrosion resistance yes
body dimensions 20 x 24 mm
environmental accessibility yes
fire safety yes
heat insulation yes
installation type flush-mounted
length standard lengths: 750 / 900 / 1050 / 1200 / 1250 mm
maximum length 2000 mm
Manufacturer ATHMER
material aluminium
minimum length 230 mm
passive leaf option built-in flush bolt or hole for flush bolt rod
purpose for exterior doors
resistance to environment factors rain and wind gust resistant
sealing profile self-extinguishing silicone
shortening section 150 mm (tikai standarta garumiem)
smoke resistance yes
sound insulation 54 dB
throw 16 mm
