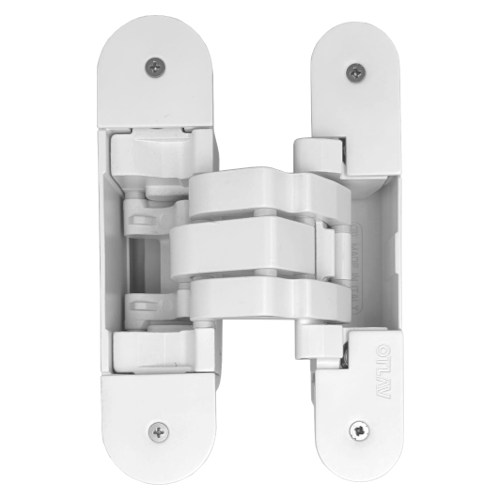

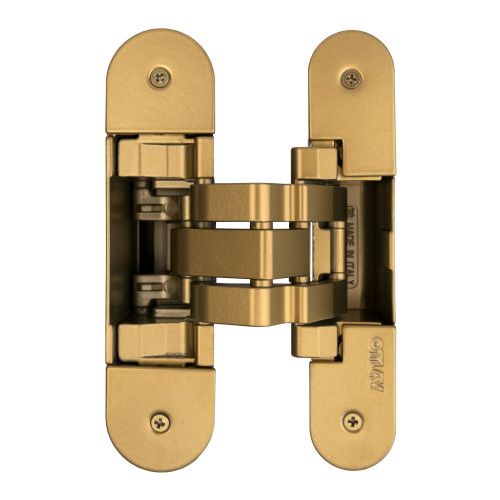

Concealed hinge for panel doors with deeper recess INVISACTA IN570

Concealed hinge for panel doors with deeper recess INVISACTA IN570

• concealed hinges for panel doors
• may be leaf or frame-mounted
• suitable for wooden and aluminium doors with deeper frame recess and for spaces with wall and ceiling panelling of thickness up to 18 mm
• use category 2 according EN 1935
• corrosion resistance very high - class 4 according EN 1935
• door thickness: 40-44 mm
• may be installed in doors with seal of thickness up to 6 mm
• 3-dimensional adjustability: side (+/- 1.5 mm), depth (+/- 1 mm) and height (+/- 2 mm)
• adjustable with hexagonal key
• suitable for both left and right hand doors
• maximum load capacity: 60 kg (2 hinges per leaf)hinge height: 130 mm
• leaf section width: 32 mm
• frame section width: 25 mm
• leaf section depth: 53 mm
• frame section depth: 31 mm
• opening angle: 180°
• high level of durability, smooth opening/closing and higher load capacity is ensured by the 7 joint hinges
• durable HT receiver prevents hinge support components from touching
• separate screws for mounting and adjusting ensure long-term stability and impeccable hinge position
• set includes aluminium caps
• joint hinge material: aluminium
• material ZAMAK
• available finishes:
  • matt silver tone
  • white
  • black
