Concealed hinges for doors with cladding TECTUS TE 540 3D A8
Product code
MB00000104
All prices include VAT
From
€109.70
Only %1 left
Concealed hinges for doors with cladding TECTUS TE 540 3D A8
Manufacturer - SIMONSWERK (Germany)
Classification code according to DIN EN 1935
4 7 5 1 1 *1 1 12a
*depending on surface finish
Manufacturer - SIMONSWERK (Germany)
-
- 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1 mm) and height (+/- 3 mm)
- opening angle: 180°
- height: 200 mm
- milling Ø: 24 mm
- max load: 100 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- may be adjusted without removing the door from its frame
- maintenance-free bearings
- CE and IFT certified, UL certified
- material:
-
-
- plastic coating F1 tone
- plastic coating F2 tone
- stainless steel tone
- black
- white
- brass-plated, polished
- nickel-plated, polished
- nickel-plated, matt
- chrome-plated, matt
- bronze tone
-
Classification code according to DIN EN 1935
4 7 5 1 1 *1 1 12a
*depending on surface finish
Montāžas instrukcija
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

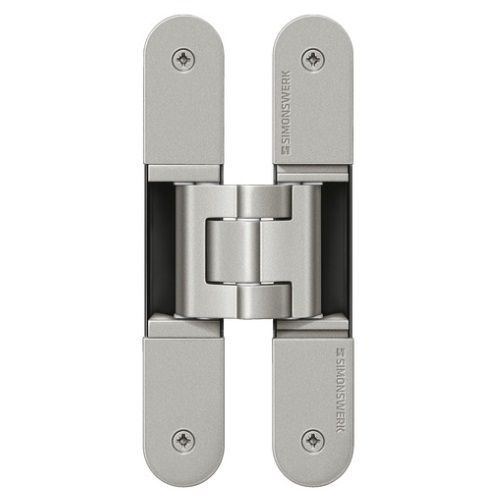

TECTUS TE 540 3D A8 slēptā eņģe F2Code: SB00008921Art. Nr.: 5 400615 0 12502Price:From €109.70In Stock: 0 pc. -

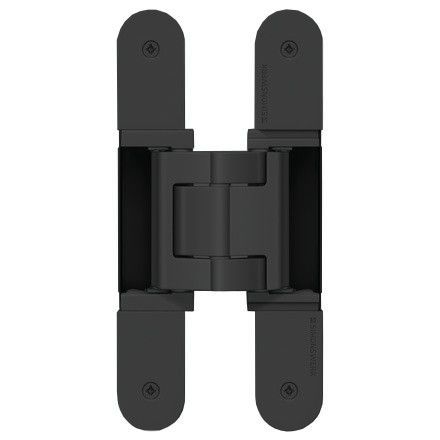

TECTUS TE 540 3D A8 concealed hinge, blackCode: SB00019313Art. Nr.: 500003976Price:From €125.54In Stock: 4 pc.
-

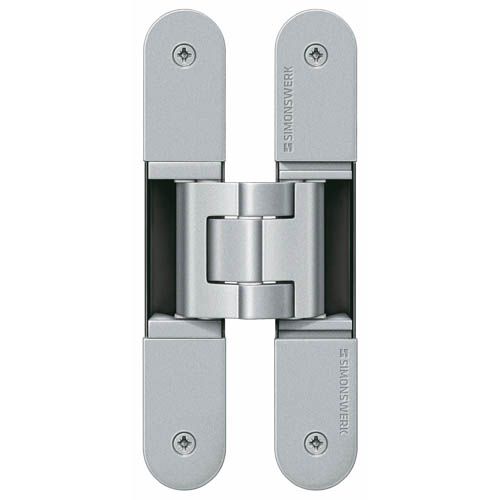

TECTUS TE540 3D A8 concealed hinge F1Code: SB00008896Art. Nr.: 500003977Price:From €114.68In Stock: 8 pc.
Additional products
- Products
- Price
- In Stock
- Quantity
-
TECTUS TE 540 3D FZ/1 fxing plate, galvanizedCode: SB00008873Art. Nr.: 500004492Price:From €14.36In Stock: 0 pc.
| Manufacturer | SIMONSWERK |
|---|---|
| hinge type | concealed hinge |
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | class 4 |
| fire safety | suitable for fire and smoke safety doors |
| purpose | for functional doors with cladding |
| leaf material | wood |
| load capacity | high |
| leaf maximum weight | 100 kg |
| suitable for aluminium frames | suitable using additional mounting parts |
| suitable for steel frames | suitable using additional mounting parts |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | certified according to EN 1935 - depending on finish |
| adjustment | adjustable |
| adjustment type | may be adjusted without removing door from its frame |
| groove for leaf seal | yes |
| anti-intruder protection | yes |
| cutter diameter | 24 mm |
| collar ring | 30 mm |
| height | 200 mm |
| maintenance | not required (self-lubricating bearings) |
| installation template | available for sale or rent |
| fastening elements | included in set |
| material | ZAMAK |
| Series | TECTUS |
