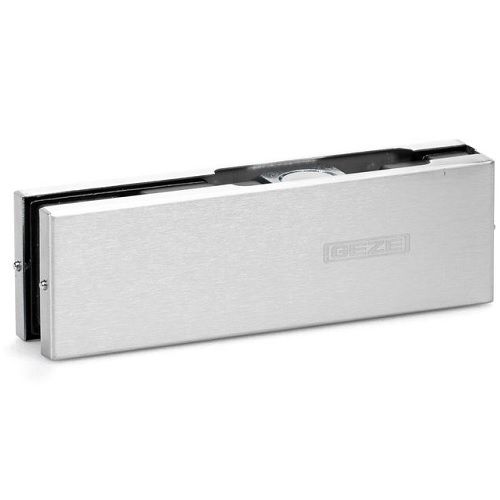

Lower fitting angle for all-glass doors GEZE PT10

Product code
MB00000415
All prices include VAT
From €74.87
From €74.87
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

Lower hinge for all-glass doors PT 10

Manufacturer - GEZE (Germany)

  • lower hinge cover caps for all-glass doors with/without fanlight
  • for use with floor spring
  • suitable for standard single-action door and swing door, as well as fixed partitions
  • suitable for single and double leaf doors
  • suitable for use indoors and outdoors
  • made of high-quality materials with refined surface
  • max leaf weight: 100 kg
  • max leaf width: 1000 mm
  • max leaf height: 2800 mm
  • glass thickness: 10-12 mm
  • torque: screws M6 - max 15 Nm / screw M8 - max 20 Nm
  • size: 163 x 32 x 51 mm
  • material: stainless steel


Assembly options

Without fanlight


With fanlight



Technical details
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Lower fitting angle for all-glass doors GEZE PT10
    Lower fitting angle for all-glass doors GEZE PT10
    Code: SB00004509
    Art. Nr.: 169752
    Price:
    From €74.87
    In Stock: 1 pc.
Manufacturer GEZE
product type hinge and corner connecting joint
shape square
door direction universal use for DIN right and left hand doors
material stainless steel
leaf material for glass doors
spindle diameter 15 mm
leaf maximum weight 100 kg
leaf height up to 2800 mm
leaf width up to 1000 mm
weather resistance suitable for outdoor use
hinge type flush hinge
installation type glass fasteners
glass thickness 10-12 mm
