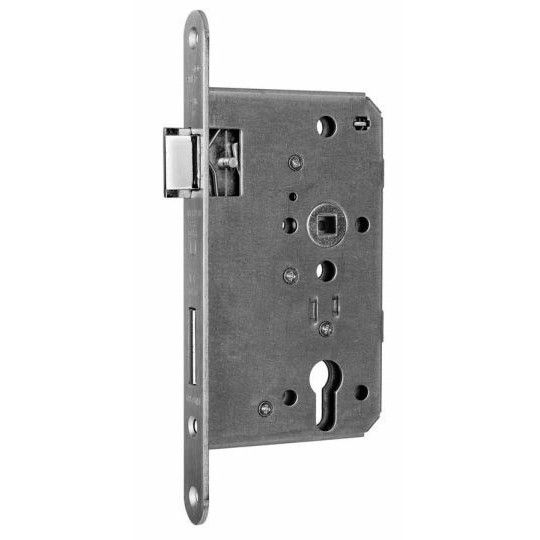

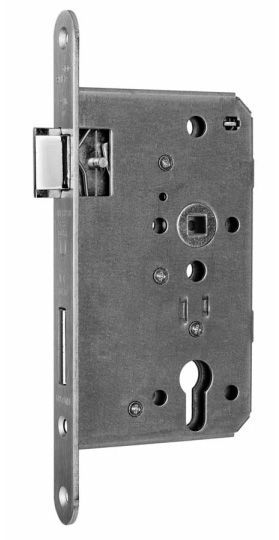

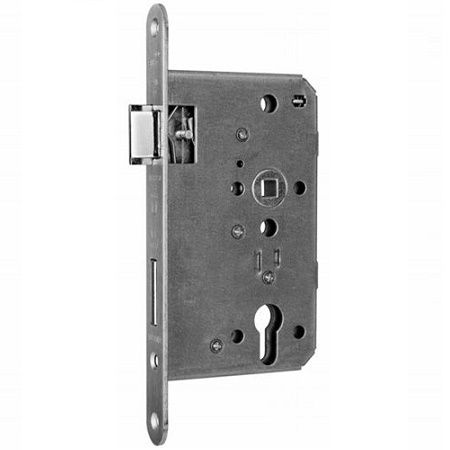

Emergency exit door lock BMH 1013 D

Name: Emergency exit door lock BMH 1013 D
SKU: MB00000655
Price: 41.35 EUR
Availability: InStock

Product code

MB00000655

View catalogue of manufacturer

Skip to the end of the images gallery

Skip to the beginning of the images gallery

All prices include VAT

From €41.35

Only %1 left

Want to save? CLICK HERE and buy in bulk!

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

Description

Emergency exit door lock BMH 1013 D

Manufacturer - BMH

- correspond with fire safety requirements according to EN 1634-1 and DIN 4102-18
- suitable for wooden and metal doors with high usage
- correspond with EN 179 technical requirements for emergency exit doors and with EN 1125 technical requirements for panic doors
- suitable for use only with certified handle sets
- lock function D
- galvanised, closed lock case
- PZ keyhole
- split handle hole: 9 mm
- bolt and latch - galvanised metal
- bolt projection: 15 mm
- centre distance: 72 mm
- standard spindle depth D: 65 mm
- other options for spindle depth D: 55 / 60 / 65 / 80 / 100 mm
- connecting screw holes
- stainless steel face plate
- lock compatible with split emergency door handle spindle and matching handles
- available finishes: stainless steel (face plate)

NB!
The key must always be taken out of the cylinder after locking/unlocking! Leaving the key in the cylinder can block the escape door function.
It is not allowed to use this lock in combination with knob cylinders.

E-shop

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

1013 D panic door lock PZ55/72/20, left, stainless steel
Code: SB00013414

Art. Nr.: 1013.000009

Price:

From €82.69

In Stock: 0 pc.

Quantity:

1013 D panic door lock PZ55/72/20, right, stainless steel
Code: SB00013415

Art. Nr.: 1013.000010

Price:

From €82.69

In Stock: 0 pc.

Quantity:

1013 D panic door lock PZ65/72/20, left, stainless steel
Code: SB00013420

Art. Nr.: 1013.000029

Price:

From €57.84

In Stock: 2 pc.

Quantity:

1013 D panic door lock PZ65/72/20, right, stainless steel
Code: SB00013421

Art. Nr.: 1013.000030

Price:

From €57.84

In Stock: 2 pc.

Quantity:

1013 D panic door lock PZ65/72/24, left, stainless steel
Code: SB00013424

Art. Nr.: 1013.000039

Price:

From €42.76

In Stock: 14 pc.

Quantity:

1013 D panic door lock PZ65/72/24, left, galvanized
Code: SB00013422

Art. Nr.: 1013.000037

Price:

From €41.35

In Stock: 0 pc.

Quantity:

1013 D panic door lock PZ65/72/24, right, galvanized
Code: SB00013423

Art. Nr.: 1013.000038

Price:

From €41.35

In Stock: 0 pc.

Quantity:

1013 D panic door lock PZ65/72/24, right, stainless steel
Code: SB00013425

Art. Nr.: 1013.000040

Price:

From €42.76

In Stock: 18 pc.

Quantity:

Additional products

Products
Price
In Stock
Quantity

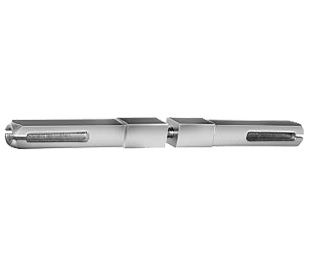

ANTI-PANIK split handle spindle for panic doors 9x60/60 mm
Code: SB00011057

Art. Nr.: 0566/6060/00

Price:

From €4.84

In Stock: 69 pc.

Quantity:

ANTI-PANIK Spindle, split, for emergency exit doors 60/60x8/9/8 mm
Code: SB00004787

Art. Nr.: 32.23.1570

Price:

From €11.58

In Stock: 9 pc.

Quantity:

Technical details

Manufacturer	BMH
lock type	single-point lock for hinged doors
lock operation	mechanical
installation type	mortise
purpose	for interior doors / for exterior doors
leaf material	for wooden and metal doors
load capacity	high
class as per EN 12209 (DIN 18251)	class 4 according to DIN 18251 (EN class 3)
suitable for emergency exits	complies with 179 and EN 1125 - emergency/panic door equipment
evacuation function	D
fire safety	complies with EN standard fire safety requirements
compatibility standard	German (DIN)
possible spindle depth	55/60/65/80/100 mm
door direction	when ordering please indicate door swing direction
locking function	PZ - with profile cylinder hole
centre distance PZ	72 mm
lock case	galvanised closed
latch material	galvanised metal
latch	not key-retractable
lock bolt material	galvanised metal
bolt projection	15 mm
lock bolt	single turn
sound insulation	no
handle square spindle size	9 mm
bundling options	lock compatible with split spindle
face plate shape	rounded
face plate width	20 / 24 mm
face plate length	235 mm
face plate finish	stainless steel
