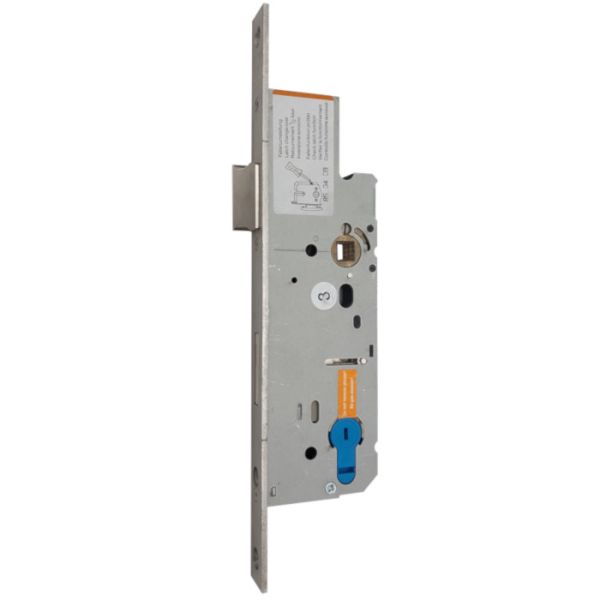

Emergency exit/panic door lock KFV 99 EP

Emergency exit/panic door lock KFV 99 EE/PE/EP
Manufacturer – KFV

• • EP99 corresponds with EN 179 and EN 1125 technical requirements for emergency exit and panic doors, set includes: lever gandle + panic bar
  • suitable for use only with certified handle sets
  • locking function B, C, D, E
  • corresponds with fire safety requirements according to EN 1634-1 and DIN 4102-18
  • galvanised, closed lock case
  • PZ keyhole, key-retractable single turn latch
  • split handle hole: 9 mm
  • bolt and latch - galvanised metal
  • bolt projection: 15 mm
  • centre distance: 92 mm
  • standard spindle depth D: 30 mm
  • other options for spindle depth D: 30 / 35 / 40 / 45 mm
  • connecting screw holes
  • stainless steel face plate
  • lock compatible with divided emergency door handle spindle and matching handles

---

Advantages

• • to lock or unlock, the key needs only half a turn maximum
  • adjustable direction of door swing and emergency path
  • compatible with all locking function types, function E available for locks with distance D of minimum 35 mm

Set
Face plates

• flat face plate:

280 x 16 mm
280 x 20 mm
280 x 24 mm

• U-shape face plate:

6 x 22 x 6 mm
8 x 22 x 8 mm
6 x 24 x 6 mm
8 x 24 x 8 mm

• face plate material: stainless steel

NB!
The key must always be taken out of the cylinder after locking/unlocking!

---
