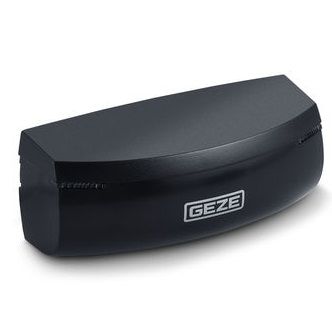

GEZE POWERTURN electromechanical swing door drive

GEZE POWERTURN electromechanical swing door drive

Manufacturer - GEZE

• electromechanical door drive for single-leaf doors up to 600 kg
• combines with either a guide rail or link arm
• suitable for both right and left hand doors
• suitable for interior and exterior doors with high usage
• drive body can be mounted on the push or pull side of the door leaf or frame
• continuous closing force adjustment EN4-7
• individually adjustable opening and closing speed
• mechanical latching action when the device is disconnected from the power supply, and electric latching action in standard mode
• complies with DIN 18650 and EN 16005 requirements

Functions

• smart swing function ensures easy manual opening
• low-energy function opens and closes the door at a reduced speed in accordance with increased safety requirements
• servo function provides motorised support when opening the door manually
• windscreen function regulates the opening and closing of doors located one behind the other

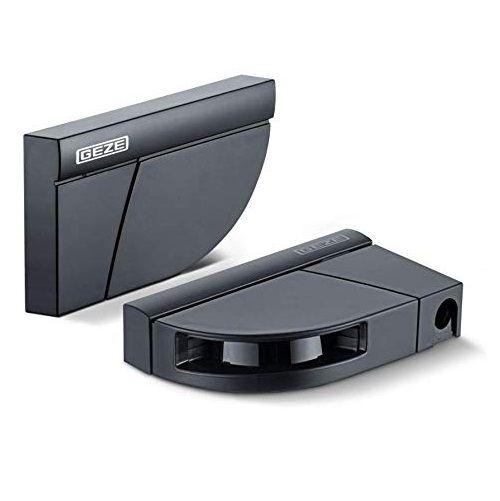

• obstacle detection function detects obstacles in the door's path and stops the door if it comes into contact with one
• automatic reversing detects an obstacle and returns to the opening position
• Push & Go function triggers the automatic drive following light manual pressure on the door leaf

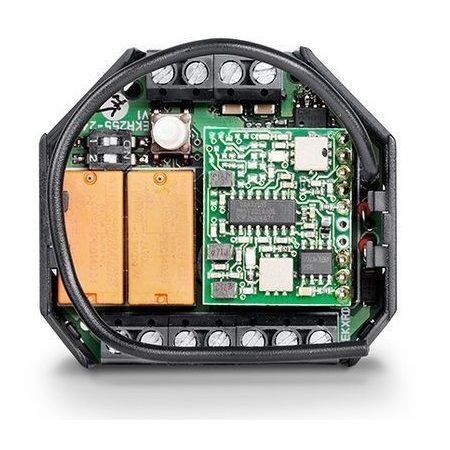

• additional option: radio control plate for wireless connection

Technical data

• device dimensions (width x height x depth): 720 x 70 x 130 mm
• max. door weight: 600 kg
• door width: 800 - 1600 mm
• max. frame depth: 560 mm (for set with a link arm)
• motor type: electromechanical
• max. opening angle: 136º
• initial spring tension: EN4 - EN7
• activation delay: adjustable up to 10 seconds
• supply voltage: 230 V
• rated power consumption: 200 W
• power supply for external consumers (24 V DC): 1200 mA
• operating temperature range: -15°C to +50°C
• IP rating: IP30

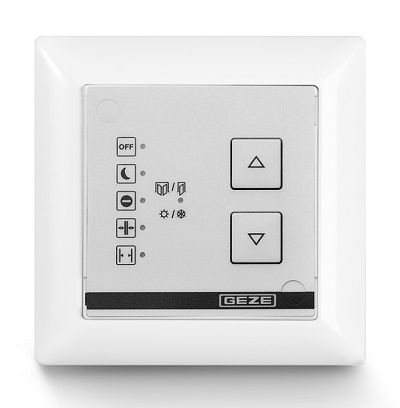

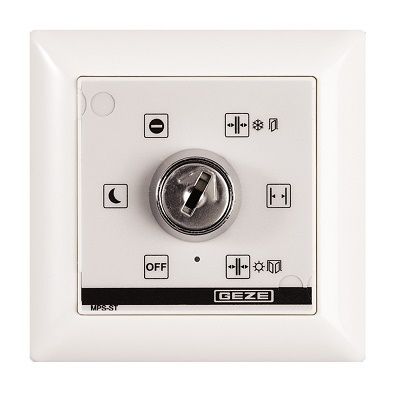

• operating modes:
  • fully automatic mode
  • permanently open position
  • store closing mode
  • night mode
  • off
• available finishes:
  • EV1 silver (standard finish)
  • any tone from the RAL tone chart is available upon request (price and delivery time specified upon request)

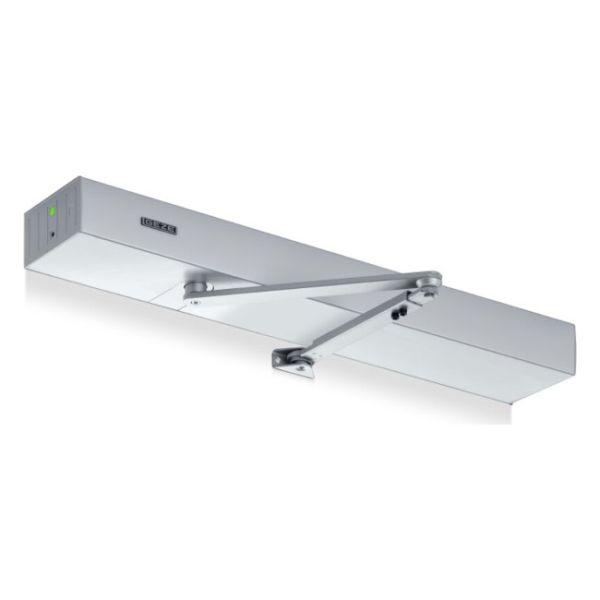

Set with link arm

• more precisely adjustable closing force - essential in difficult situations, especially on facades with the risk of strong crosswinds
• a door stop must be installed

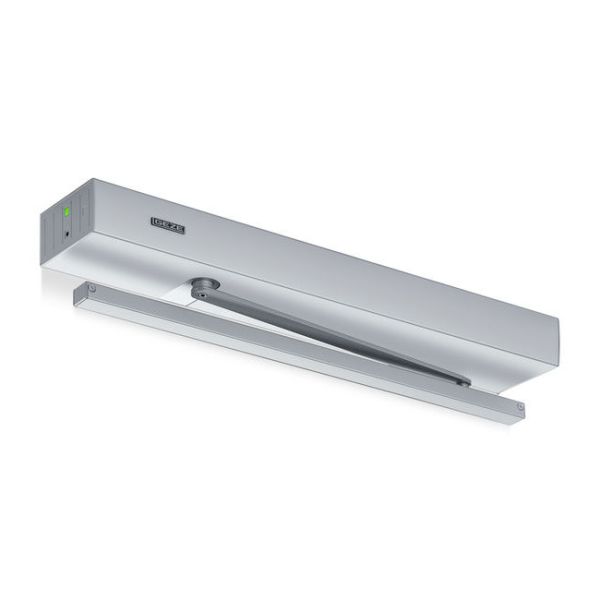

Set with guide rail

• elegant, more refined look
• integrated opening restrictor - door stop ir not required

Setup example
