HAWA JUNIOR 80 B sliding door system for minimal installation height

Product code
JUNIOR-80B
Hawa View catalogue of manufacturer
main product photo

From €522.36

->>> Manufacturer's system planner
(The manufacturer's system planner is for informational purposes only. Products cannot be purchased from it. To purchase a product, please use the SB UN PARTNERI e-shop system.)
Reset selection
Junior 80 top track (standard length 6000 m), alu plain anodized, predrilled (variable length, price for 1000 mm)   €63.03
Code: SB00008198
Art. Nr.: 10186
In Stock. Available: 47.5 m
Can be ordered in full packages of pcs.

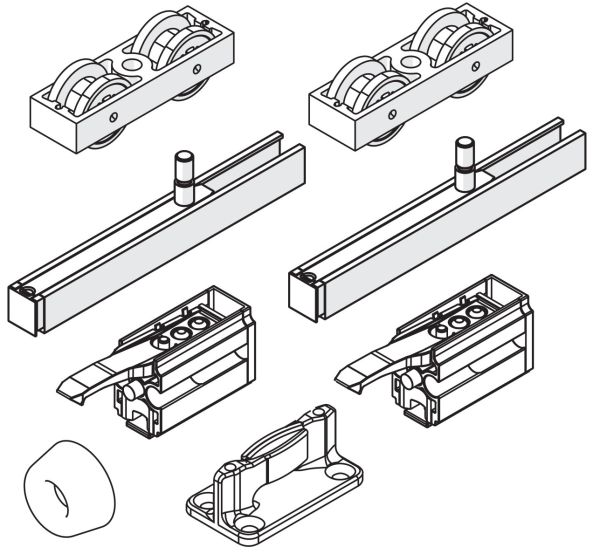

HAWA-Junior 80/B sliding door fitting for 1 leaf, without track   €396.30
Code: SB00008548
Art. Nr.: 24617
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.

Price as configured €522.36

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

HAWA JUNIOR 80 B sliding door system with minimal installation height

Manufacturer - HAWA (Switzerland)

  • mechanism system for sliding wooden doors with one or more leaves
  • The discreetly integrated suspension in the sash support profile allows for a maximum reduction in the installation distance from the track to the door - only 6-8 mm
  • plastic roller mechanism with slide bearings guarantees quiet, smooth and easy sliding
  • Aesthetically refined, discreet design; rails with a particularly aesthetic surface finish – stainless steel effect – blend harmoniously into even the most sophisticated designs without additional finishing
  • With a special mounting wedge for front suspension fixing, installation without any gap is possible - the door extends all the way to the ceiling
  • patented rail stopper, which can be precisely adjusted to the specific door weight, ensures ease of use, smooth braking and locking of the door
  • patented stable floor guide prevents any vibration during door sliding or under the influence of drafts
  • adjustable door leaf installation height ± 4 mm
  • Installation: wall-mounted / ceiling-mounted
  • Max. load: 80 kg
  • Max. door height: 4000 mm
  • Max. door width: 3000 mm
  • Max. door thickness: 35-80 mm
  • perforated rail, standard length: 6000 mm (can be cut to size as required)
  • rail material: anodized aluminum
  • Rails with a particularly aesthetic surface finish – stainless steel effect – blend harmoniously into even the most sophisticated designs without additional finishing
  • Wide range of additional accessories and versatile expansion options
  • Can be combined with the special Junior wall profile for side mounting
  • Additional equipment: HAWA SoftMove motion damper can be integrated into the track, which, depending on the weight and speed of the door, brakes the door optimally and gently and pulls it into its end position:
    • Single-sided SoftMove for doors from 690 mm
    • Double-sided SoftMove (2 pcs.) for doors from 1030 mm

->>> Manufacturer's system planner
(The manufacturer's system planner is for informational purposes only. Products cannot be purchased from it. To purchase a product, please use the SB UN PARTNERI e-shop system.)


Technical documentation and additional
information
HAWA Junior 80 B - system catalog HAWA Junior 80 B - system catalog



VIDEO - HAWA Junior 80 B


VIDEO - HAWA Junior SoftMove

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Junior 80 top track (standard length 6000 m), alu plain anodized, predrilled (variable length, price for 1000 mm)
    Junior 80 top track (standard length 6000 m), alu plain anodized, predrilled (variable length, price for 1000 mm)
    Code: SB00008198
    Art. Nr.: 10186
    Price:
    From €63.03
    In Stock: 47.5 m
  2. HAWA-Junior 80/B sliding door fitting for 1 leaf, without track
    HAWA-Junior 80/B sliding door fitting for 1 leaf, without track
    Code: SB00008548
    Art. Nr.: 24617
    Price:
    From €396.30
    In Stock: 0 pc.
    Visma Quote

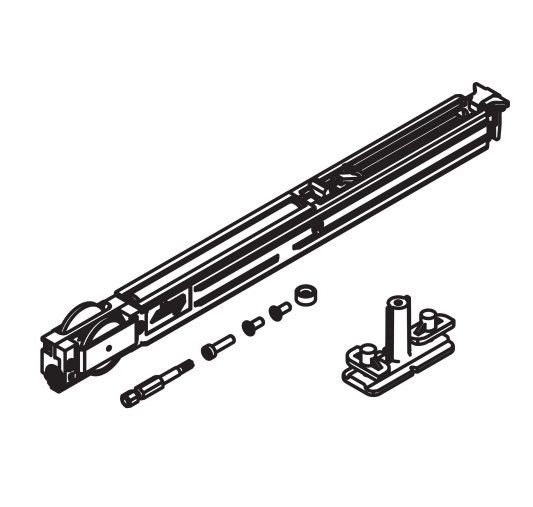

  3. Soft closing mechanism SoftMove 80 for HAWA Junior/80
    Soft closing mechanism SoftMove 80 for HAWA Junior/80
    Code: SB00008526
    Art. Nr.: 22444
    Price:
    From €170.56
    In Stock: 4 pc.
    Visma Quote
  4. Floor guide HAWA-Junior 40/80/120
    Floor guide HAWA-Junior 40/80/120
    Code: SB00008272
    Art. Nr.: 14427
    Price:
    From €13.09
    In Stock: 82 pc.
  5. HAWA Junior 80/100 track stop softstop, adjustable force
    HAWA Junior 80/100 track stop softstop, adjustable force
    Code: SB00019113
    Art. Nr.: 27771
    Price:
    From €41.44
    In Stock: 0 pc.
Manufacturer Hawa
Series JUNIOR
system type straight sliding door system
mode of operation manual
installation type to wall / to ceiling
SOFT CLOSE possible
maximum opening width 2950 mm
purpose for indoors
leaf material wood
leaf maximum weight 80 kg
leaf width up to 3000 mm
leaf thickness 35-80 mm
leaf height up to 4000 mm
height adjustment +/-4 mm
