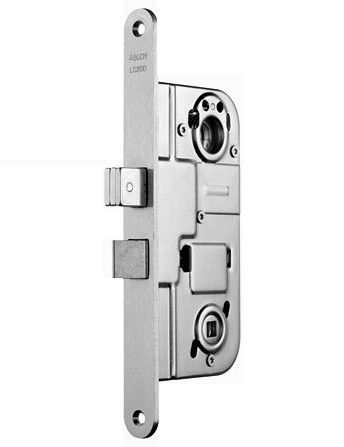

Mortise lock case ABLOY LC200
Manufacturer - ABLOY

    • Scandinavian range mechanical lock case for wooden/steel doors
    • deadbolt throw 20 mm
    • suitable for fire safety doors, fire resistance grade EI30
    • multilayer bolt, construction reinforced with solid hard metal plate
    • compatible with Scandinavian standard cylinders
    • suitable for interior and exterior doors with high usage
    • bolt throw: 20 mm
    • face plate - rounded
    • face plate size: 22 x 225 x 4 mm
    • spindle depth: 50 mm
    • lock case depth: 78 mm
    • mortise standard: SFS 5208, SS 81 73 83
    • available finishes:
      • Fe/ZL galvanised chrome-plated, varnished steel

Functionality
    • the deadbolt is locked and retracted by turning the key or thumbturn 90°.
    • a further 5° turn will retract the latchbolt as well
    • the latchbolt is retracted also by the lever handles
    • WC function available if combined with adapter for WC knob

Set
Strike plates:
LP712, LP717, LP722, LP732, 0034, 0079

Cylinders:
ABLOY® NOVEL
ABLOY® PROTEC2


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Mortise lock case ABLOY LC200 Fe/ZL, left
    Mortise lock case ABLOY LC200 Fe/ZL, left
    Code: SB00009719
    Art. Nr.: 805 LC200_0202000000
    Price:
    From €25.52
    In Stock: 0 pc.
  2. Mortise lock case ABLOY LC200 Fe/ZL, right
    Mortise lock case ABLOY LC200 Fe/ZL, right
    Code: SB00009720
    Art. Nr.: 805 LC200_0203000000
    Price:
    From €25.52
    In Stock: 0 pc.
bolt projection 20 mm
bundling options WC function possible with adapter for WC lock 854
class as per EN 12209 (DIN 18251) class 2 according to EN 12209
compatibility standard Scandinavian
door direction when ordering please indicate door swing direction
face plate width 22 mm
face plate finish cinkoti hromēts, lakots tērauds
face plate length 225 mm
face plate shape rounded
fire safety complies with EN standard fire safety requirements
fire safety class EI30
handle square spindle size 8 mm
installation type mortise
latch retractable with handle, key, knob
leaf material for wooden and metal doors
load capacity high
lock operation mechanical
lock type single-point lock for hinged doors
Manufacturer ABLOY
possible spindle depth 50 mm
purpose for interior doors / for exterior doors
sound insulation no
total depth 78 mm
