Heavy-duty mortise lock BMH 450

Product code
MB00001133
All prices include VAT
From €16.94
From €16.94
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

Heavy-duty mortise lock BMH 450

Manufacturer - BMH

    • grade 4 lock, suitable for public buildings and doors with heavy usage
    • galvanised, closed lock case
    • Ø 8 mm metal ceramic follower for spindle
    • latch and bolt made from nickel-plated cast metal
    • stainless steel face plate: 20 mm / 24 mm
    • holes for affixing backplate
    • clamping follower
    • key-retractable double turn latch for PZ lock
    • double turn latch with 1 room key for BB lock
    • single turn latch for WC lock
    • standard spindle depth D: 55 mm, other available spindle depths: 50 - 100 mm
    • centre distance for PZ un BB locks: 72 mm, for WC locks: 78 mm
    • lock types: PZ, BB, WC, BAC/F
    • suitable for interior and exterior doors with high usage
    • corresponds with EN 12209 standard, classification code: 3 M 5 0 0 C 3 H C 2 0
    • face plate rounded (standard) or rectangular
    • face plate finishe: stainless steel

Available extras
  • handle spindle hole of 9 mm
  • self-retracting latch
  • latch with reduced noise
  • latch and bolt with black teflon coating
  • special finish for rooms with higher humidity
  • compliance with SKG**




    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. BMH 450 mortise lock PZ 55-2/72/20/O, stainless steel, LEFT
    BMH 450 mortise lock PZ 55-2/72/20/O, stainless steel, LEFT
    Code: SB00013374
    Art. Nr.: 0450.000055
    Price:
    From €16.94
    In Stock: 49 pc.

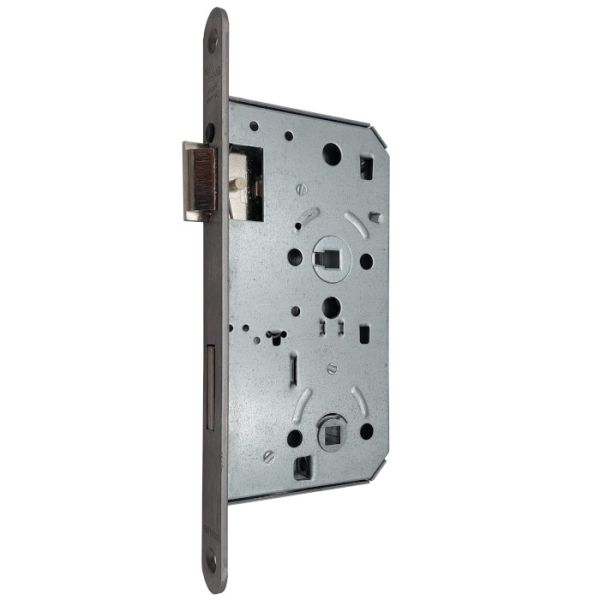

  2. BMH 450 mortise lock WC 55-2/78/20/O, stainless steel, LEFT
    BMH 450 mortise lock WC 55-2/78/20/O, stainless steel, LEFT
    Code: SB00013370
    Art. Nr.: 0450.000001
    Price:
    From €16.94
    In Stock: 0 pc.
  3. Visma Quote
    BMH 450 mortise lock WC65-2/78/24/O, stainless steel, LEFT
    BMH 450 mortise lock WC65-2/78/24/O, stainless steel, LEFT
    Code: SB00013372
    Art. Nr.: 0450.000031
    Price:
    From €21.36
    In Stock: 0 pc.
  4. Visma Quote
    BMH 450 mortise lock PZW 55/72/24/K, faceplate angular, stainless steel, LEFT
    BMH 450 mortise lock PZW 55/72/24/K, faceplate angular, stainless steel, LEFT
    Code: SB00020929
    Art. Nr.: 0450.000249
    Price:
    From €19.70
    In Stock: 0 pc.

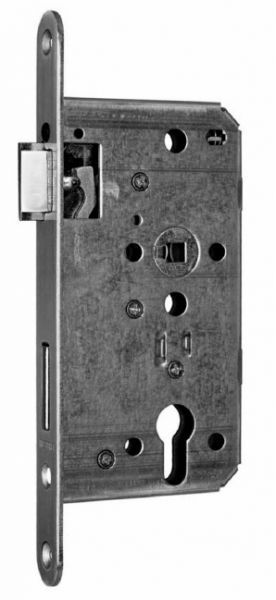

  5. BMH 450 mortise lock PZ 55-2/72/20/O, stainless steel, RIGHT
    BMH 450 mortise lock PZ 55-2/72/20/O, stainless steel, RIGHT
    Code: SB00013375
    Art. Nr.: 0450.000056
    Price:
    From €16.94
    In Stock: 37 pc.
  6. BMH 450 mortise lock WC 55-2/78/20/O, stainless steel, RIGHT
    BMH 450 mortise lock WC 55-2/78/20/O, stainless steel, RIGHT
    Code: SB00013371
    Art. Nr.: 0450.000002
    Price:
    From €16.94
    In Stock: 25 pc.
  7. Visma Quote
    BMH 450 mortise lock WC65-2/78/24/O, stainless steel, RIGHT
    BMH 450 mortise lock WC65-2/78/24/O, stainless steel, RIGHT
    Code: SB00013373
    Art. Nr.: 0450.000032
    Price:
    From €21.36
    In Stock: 1 pc.
  8. Visma Quote

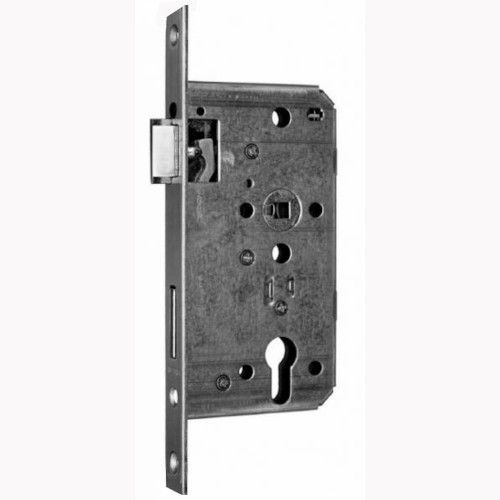

    BMH 450 mortise lock PZW 55/72/24/K, faceplate angular, stainless steel, RIGHT
    BMH 450 mortise lock PZW 55/72/24/K, faceplate angular, stainless steel, RIGHT
    Code: SB00020928
    Art. Nr.: 0450.000250
    Price:
    From €19.70
    In Stock: 0 pc.
Manufacturer BMH
lock type single-point lock for hinged doors
lock operation mechanical
installation type mortise
purpose for interior doors / for exterior doors
leaf material for wooden and metal doors
load capacity very high
class as per EN 12209 (DIN 18251) class 4 according to DIN 18251 (EN class 3)
fire safety not suitable for fire safety doors
compatibility standard German (DIN)
possible spindle depth standarta: 55 mm (pēc pasūtījuma 50-100 mm)
door direction when ordering please indicate door swing direction
locking function PZ / BB / WC / BAC
centre distance PZ 72 mm
centre distance BB 72 mm
centre distance WC 78 mm
lock case galvanised closed
latch material cast, nickel-coated metal
latch key-retractable (PZ)
lock bolt material cast, nickel-coated metal
bolt projection 22 mm
lock bolt double turn
sound insulation Soft-Lock latch (additional equipment)
handle square spindle size 8 mm
face plate shape Noapaļota (iespējama arī kantaina)
face plate width 20 / 24 mm
face plate length 235 mm
face plate finish nerūsējošais tērauds
