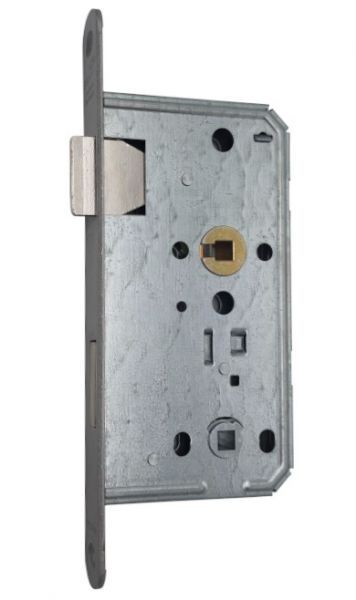

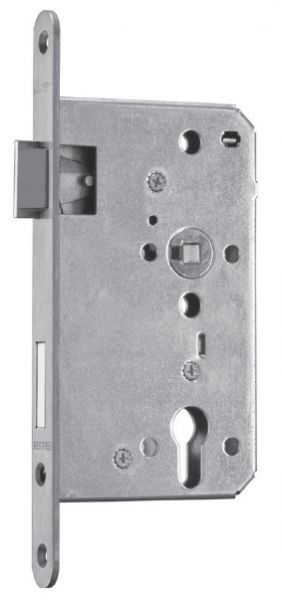

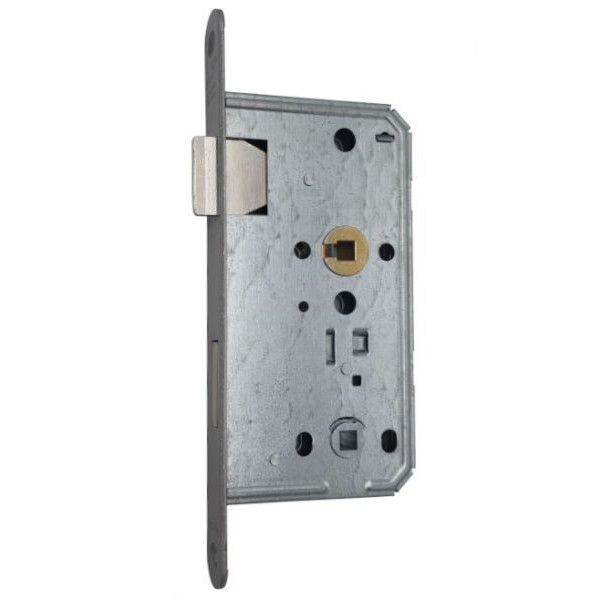

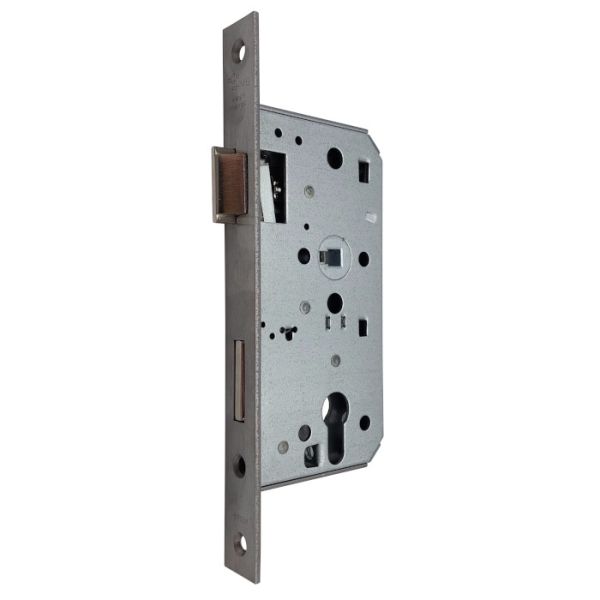

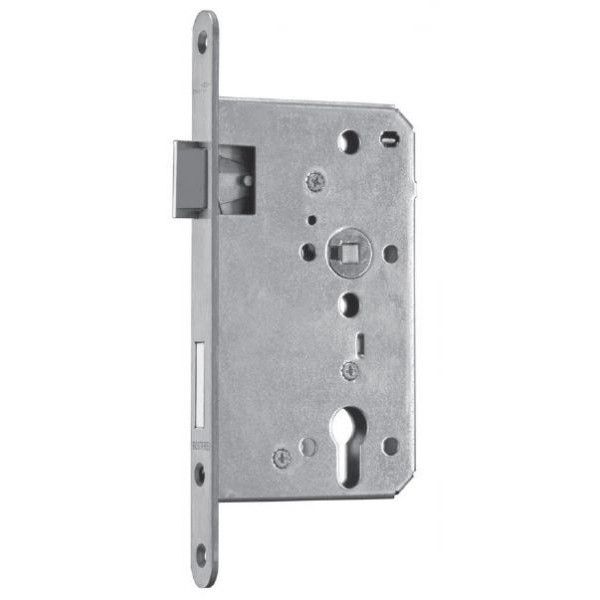

Mortise lock BMH 300
Manufacturer - BMH

    • grade 3 lock suitable for public buildings and doors with heavy usage
    • galvanised, closed lock case
    • Ø 8 mm metal ceramic follower for spindle
    • latch and bolt made from nickel-plated cast metal
    • holes for affixing backplate
    • clamping follower
    • stainless steel face plate: 20 mm / 24 mm
    • key-retractable double turn latch for PZ lock
    • standard spindle depth D: 55 mm, other available spindle depths: 50 - 100 mm
    • centre distance for PZ un BB locks: 72 mm, for WC locks: 78 mm
    • corresponds with EN 12209 standard, classification code: 3 M 5 0 0 C 2 H C 2 0
    • available finishes: stainless steel (face plate)
    •

Available extras
  • handle spindle hole of 9 mm
  • self-retracting latch
  • latch with reduced noise
  • latch and bolt with black teflon coating
  • special finish for rooms with higher humidity

    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 300 PZW 50-2/72-24, left, rectangular faceplate, stainless steel
    300 PZW 50-2/72-24, left, rectangular faceplate, stainless steel
    Code: SB00013343
    Art. Nr.: 820 0300.000121
    Price:
    From €37.50
    In Stock: 2 pc.
  2. Mortise lock 300 PZW 55-2/72-20, left, st.steel
    Mortise lock 300 PZW 55-2/72-20, left, st.steel
    Code: SB00013503
    Art. Nr.: 820 300 KR NT
    Price:
    From €12.92
    In Stock: 35 pc.
  3. Mortise lock 300 WC 55/78-20, stainless steel, left
    Mortise lock 300 WC 55/78-20, stainless steel, left
    Code: SB00013510
    Art. Nr.: 820 300 WC KR NT
    Price:
    From €12.92
    In Stock: 24 pc.
  4. 300 PZW 65-2/72-20,left, stainless steel
    300 PZW 65-2/72-20,left, stainless steel
    Code: SB00013350
    Art. Nr.: 820 0300.000193
    Price:
    From €13.89
    In Stock: 9 pc.
  5. 300 PZW 80-2/72-20, left, stainless steel
    300 PZW 80-2/72-20, left, stainless steel
    Code: SB00013502
    Art. Nr.: 820 300 KR 80 20 NT
    Price:
    From €27.68
    In Stock: 1 pc.
  6. 300 PZW 50-2/72-24, right, stainless steel
    300 PZW 50-2/72-24, right, stainless steel
    Code: SB00013344
    Art. Nr.: 820 0300.000122
    Price:
    From €37.50
    In Stock: 1 pc.
  7. Mortise lock 300 PZW 55-2/72-20, right, st.steel
    Mortise lock 300 PZW 55-2/72-20, right, st.steel
    Code: SB00013508
    Art. Nr.: 820 300 LA NT
    Price:
    From €12.92
    In Stock: 26 pc.
  8. Mortise lock 300 WC 55/78-20, stainless steel, right
    Mortise lock 300 WC 55/78-20, stainless steel, right
    Code: SB00013512
    Art. Nr.: 820 300 WC LA NT
    Price:
    From €12.92
    In Stock: 25 pc.
  9. 300 PZW 65-2/72-20, right, stainless steel
    300 PZW 65-2/72-20, right, stainless steel
    Code: SB00013351
    Art. Nr.: 820 0300.000194
    Price:
    From €13.89
    In Stock: 20 pc.
  10. 300 PZW 80-2/72-20, right, stainless steel
    300 PZW 80-2/72-20, right, stainless steel
    Code: SB00013506
    Art. Nr.: 820 300 LA 80 20 NT
    Price:
    From €27.68
    In Stock: 1 pc.
WC square spindle size 8 mm
bolt projection 22 mm
centre distance WC 78 mm
centre distance PZ 72 mm
class as per EN 12209 (DIN 18251) class 3 according to EN 122209 / DIN 18251
compatibility standard German (DIN)
door direction when ordering please indicate door swing direction
face plate width 20 / 24 mm
face plate finish nerūsējošais tērauds
face plate length 235 mm
face plate shape square or with rounded edges
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
installation type mortise
latch key-retractable (PZ)
latch material cast, nickel-coated metal
leaf material for wooden and metal doors
load capacity high
lock bolt double utrn (PZ)
lock bolt material cast, nickel-coated metal
lock case galvanised closed
lock operation mechanical
lock type single-point lock for hinged doors
locking function PZ / WC
Manufacturer BMH
possible spindle depth 55 mm
purpose for interior doors / for exterior doors
sound insulation Soft-Lock latch (additional equipment)
