Mortise lock KFV 65 1/2
Manufacturer - KFV

    • grade 4 lock for doors with increased anti-intruder protection
    • galvanised and closed lock case
    • bright nickel-plated latch (replaceable) and bolt
    • handle hole: 8 mm
    • spindle depth D: 40 mm, 45 mm, 50 mm, 55 mm, 60 mm
    • centre distance for PZ and BB locks: 72 mm, for WC locks: 78 mm
    • please indicate door swing direction upon order
    • face plate type: rectangular or with rounded ends
    • face plate width: 18, 20 or 24 mm
    • for interior and exterior doors with low to high usage
    • available finishes:
      • stainless steel (face plate)
      • coloured, browned (face plate)
      • matt brass (face plate)
      • titanium tone, varnished (face plate)
    • classification code according to EN 12209:
      • 65 1/2 PZW (rebated), 65 PZW (non-rebated) 3 S 8 0 0 G 4 B C 2 0
      • 65 1/2 WC (rebated), 65 WC (non-rebated) 3 S 8 0 0 G 4 B G 2 0



All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Mortise lock 65-1/2-PZ 55/72-20, brass matt, LH
    Mortise lock 65-1/2-PZ 55/72-20, brass matt, LH
    Code: SB00003348
    Art. Nr.: 49 168503
    Price:
    From €53.37
    In Stock: 3 pc.
  2. Mortise lock 65-1/2-PZ 55/72, brass matt, RH
    Mortise lock 65-1/2-PZ 55/72, brass matt, RH
    Code: SB00003435
    Art. Nr.: 49 291807
    Price:
    From €53.37
    In Stock: 4 pc.

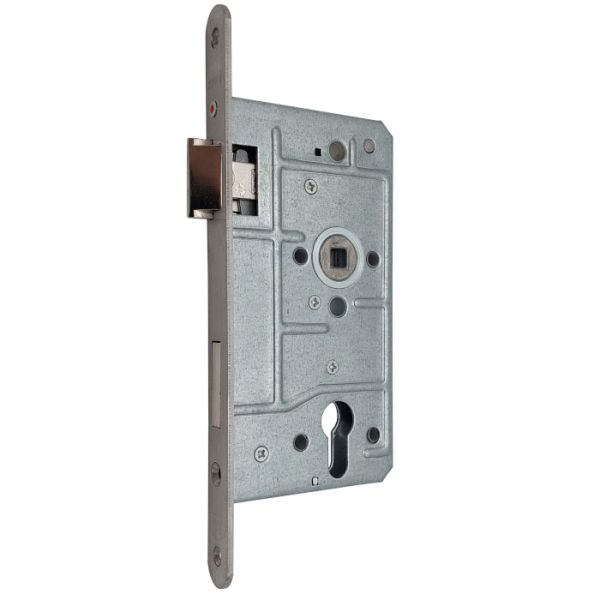

  3. Mortise lock 65-1/2-PZ 55/72-20, stainless steel, LH
    Mortise lock 65-1/2-PZ 55/72-20, stainless steel, LH
    Code: SB00003317
    Art. Nr.: 49 132233
    Price:
    From €55.60
    In Stock: 3 pc.
  4. Mortise lock 65-1/2-PZ 55/72-20, stainless steel, RH
    Mortise lock 65-1/2-PZ 55/72-20, stainless steel, RH
    Code: SB00003318
    Art. Nr.: 49 132234
    Price:
    From €55.60
    In Stock: 6 pc.

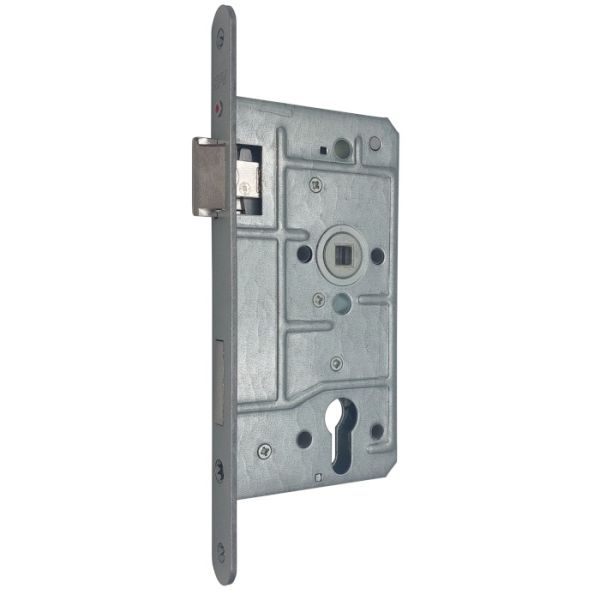

  5. Mortise lock 65-1/2-PZ 55/72, titan laquered, LH
    Mortise lock 65-1/2-PZ 55/72, titan laquered, LH
    Code: SB00003496
    Art. Nr.: 49 336750
    Price:
    From €47.95
    In Stock: 10 pc.
  6. Mortise lock 65-1/2-PZ 55/72, titan laquered, RH
    Mortise lock 65-1/2-PZ 55/72, titan laquered, RH
    Code: SB00003495
    Art. Nr.: 49 336749
    Price:
    From €47.95
    In Stock: 7 pc.

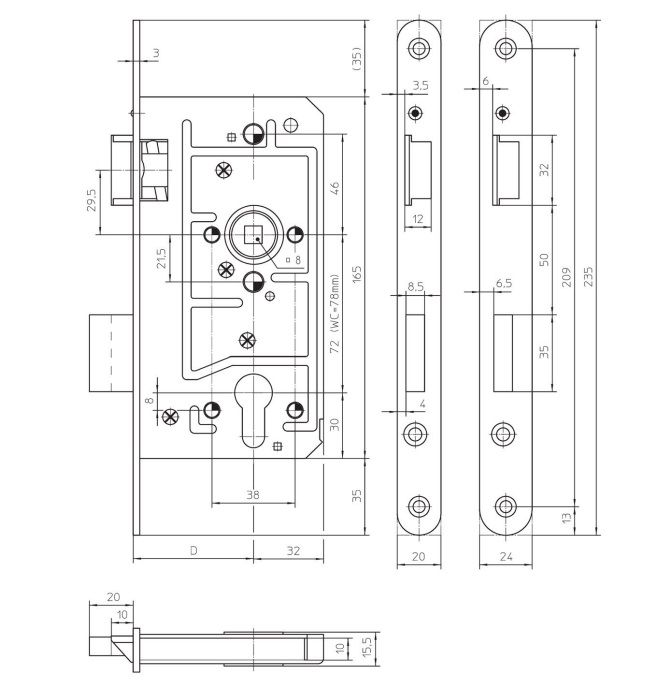

bolt projection 20 mm
centre distance PZ 72 mm
class as per EN 12209 (DIN 18251) class 4 according to DIN 18251 (EN class 3)
compatibility standard German (DIN)
door direction when ordering please indicate door swing direction
face plate width 18 / 20 / 24 mm
face plate finish nerūsējošais tērauds / titāntonis lakots / misiņš matēts / brunēta krāsota
face plate length 235 mm
face plate shape rounded
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
installation type mortise
latch key-retractable
latch material bright nickel-coated
leaf material for wooden and metal doors
load capacity very high
lock bolt double turn
lock bolt material bright nickel-coated
lock case galvanised closed
lock operation mechanical
lock type single-point lock for hinged doors
locking function PZ - with profile cylinder hole
Manufacturer KFV
possible spindle depth 50/55/60/65/70/80 mm
purpose for exterior doors
sound insulation no
Durvju vērtņu virzieni saskaņā ar DIN 107
Vērtnes virzienu nosaka tajā durvju pusē, kur aizvērtā stāvoklī ir redzamas eņģes: redzamas eņģes vērtnes labajā pusē = DIN labā vērtne redzamas eņģes vērtnes kreisajā pusē = DIN kreisā vērtne
Slēgšanas veidi. Slēdzenes un rokturu garnitūras.
Galvenie slēgšanas veidi: PZ - profilciindra atslēgas caurums - izmantojams iekšdurvīm un ārdurvīm BB - atslēgas caurums vienkāršai istabas atslēgai - izmantojams iekšdurvīm WC - slēdzene ar aizgriezni tualetēm / vannasistabām BAC (F) - slēdzene...
Slēdzenes uzbūve un svarīgākie parametri.
Svarīgākie parametri, kas nepieciešami slēdzenes izvēlē: slēgšanas veids  ass dziļums (D) centru attālums priekšplāksnes platums un garums
Durvju furnitūras kopšanas norādījumi.
1. Slēdzeņu un furnitūras virsmas ir regulāri jākopj atbilstoši to materiālam un apstrādei. Metāla virsmām (nerūsējošais tērauds, cinkojums utt.) izmantot tikai atšķaidītus, maigus, ph-neitrālus tīrīšanas līdzekļus. Nekādā gadījumā neizmantot agresīvus...
