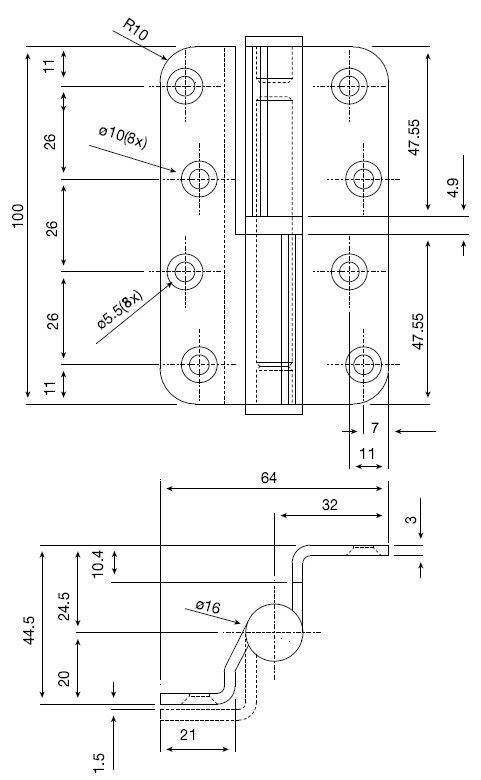

Lift off hinges P10064
Manufacturer - Argenta (Belgium)

    • rounded shape
    • with fixed stainless steel axle and ring
    • height: 100 mm
    • roll diameter: 16 mm, axle diameter: 10 mm
    • material thickness: 3 mm
    • please indicate door swing direction upon order
    • material: stainless steel


    •

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Rebated hinge 100x64, st.steel, left
    Rebated hinge 100x64, st.steel, left
    Code: SB00016715
    Art. Nr.: 31008602
    Price:
    From €17.45
    In Stock: 0 pc.
  2. Rebated hinge 100x64, st.steel, right
    Rebated hinge 100x64, st.steel, right
    Code: SB00016716
    Art. Nr.: 31008601
    Price:
    From €17.45
    In Stock: 43 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote
    Skrūve ar zeņķa galvu, 4x35 mm, nerūsējošs tērauds
    Skrūve ar zeņķa galvu, 4x35 mm, nerūsējošs tērauds
    Code: SB00006990
    Art. Nr.: S17A2-4X35 TX
    Price:
    From €0.85
    In Stock: 84.9 a10
  2. Skrūve ar zeņķa galvu, 4x30 mm, nerūsējošs tērauds
    Skrūve ar zeņķa galvu, 4x30 mm, nerūsējošs tērauds
    Code: SB00006965
    Art. Nr.: S17A2-4X30 TX
    Price:
    From €0.61
    In Stock: 34.76 a10
Manufacturer ARLU
hinge type standard hinge
hinge shape rounded
door construction for rebated doors
door direction when ordering please indicate door swing direction
groove for leaf seal no
anti-intruder protection no
material thickness 3 mm
leaf material wood
load capacity middle
leaf maximum weight 80 kg
suitable for aluminium frames suitable
suitable for steel frames suitable
suitable for industrial frames suitable
suitable for timber frames suitable
anti-corrosion resistance class 3 according to EN 1935 - high
anti-corrosion resistance in accordance with EN 1935 class 3 - high
class as per EN 1935 class 3
corner radius R10
sound insulation no
fire safety suitable for fire and smoke safety doors
adjustment not adjustable
knuckle diameter 16 mm
spindle diameter 10 mm
height 100 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material stainless steel
