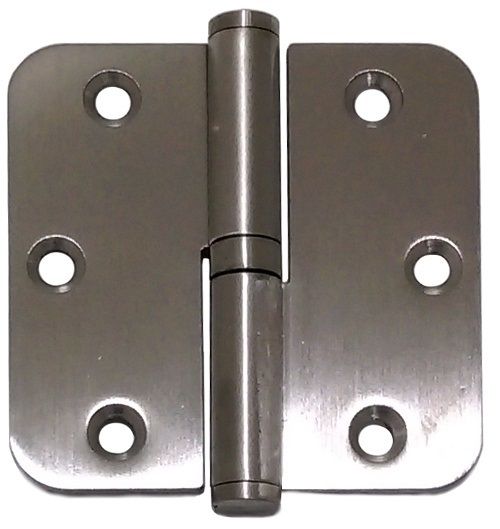

Lift off butt hinges 80/80
Product code
MB00009209
All prices include VAT
From
€5.20
Only %1 left
Lift off butt hinges 80/80
-
- hinge height: 80 mm
- total width: 80 mm
- knuckle diameter: 12 mm
- pin diameter: 7 mm
- material thickness: 2.5 mm
- rounded corners: R 10 mm
- max leaf weight: up to 40 kg (3 hinges per leaf)
- milling width: 32 mm
- please indicate door swing direction upon order
- complies with EN 1935:2002/AC:2003
- material: stainless steel matt SS 202
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
RD807 hinge 80x80, milling widht 33 mm, st.steel, leftCode: SB00016694Art. Nr.: ZA-HR-115NOT AVAILABLE FOR ORDERS! Only the remaining number of items in stock is available for purchase.Price:From €5.20In Stock: 38 pc.Out of stockThe selected product is currently out of stock. -
RD807 hinge 80x80, milling widht 33 mm, st.steel, rightCode: SB00016695Art. Nr.: ZA-HR-116NOT AVAILABLE FOR ORDERS! Only the remaining number of items in stock is available for purchase.Price:From €5.20In Stock: 43 pc.
| hinge type | standard hinge |
|---|---|
| hinge shape | rounded |
| door construction | for non-rebated doors |
| door direction | when ordering please indicate door swing direction |
| class as per EN 1935 | class 2 |
| fire safety | not suitable for fire and smoke safety doors |
| material thickness | 2.5 mm |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 40 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable using additional mounting parts |
| suitable for timber frames | suitable |
| anti-corrosion resistance | class 3 according to EN 1935 - high |
| corner radius | R10 |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| knuckle diameter | 12 mm |
| spindle diameter | 7 mm |
| height | 80 mm |
| width | 80 mm |
| fastening elements | must be ordered separately |
| material | stainless steel |
