Izceļamas gultņu eņģes ARGENTA 89/89A M
Product code
MB00000932-M
All prices include VAT
From
€8.18
From
€8.18
Only %1 left
Izceļamas gultņu eņģes ARGENTA 89/89A
Ražotājs - Argenta (Beļģija)

Ražotājs - Argenta (Beļģija)
-
- durvīm bez pārfalces
- eņģes augstums: 89 mm
- kopējais platums: 89 mm
- rullīša diametrs: 12 mm
- ass diametrs: 7 mm
- materiāla biezums: 2,5 mm
- noapaļoti stūri: R 10 mm
- jauna, patentēta konstrukcija ar iestiprinātu, nodilumizturīgu gultni, kas nevar montāžas laikā noslīdēt no ass
- gultnis sastāv no nerūsējošā tērauda ārējā gredzena (virsmas apstrāde identiska eņģei) un pašeļļojoša, nodilumizturīga polioksimetilēna iekšējā gredzena
- ātrāka un tīrāka durvju montāža
- gultņus var iegādāties arī atsevišķi (biezums 2, 2.5 un 5 mm)
- papildu gultņi izmantojami vērtnes izlīdzināšanai
- vērtnes svars: līdz 48 kg (3 eņģes)
- pasūtot jānorāda vērtnes virziens
- atbilst EN 1935:2002/AC:2003
- materiāls - nerūsējošais tērauds, krāsots melns
- augsta korozijas izturība - klase 4 / EN 1670
- ilgdarbības tests: 200 000 ciklu - klase 7 / EN 1935:2002
- klasifikatora kods pēc DIN EN 1935:
3 7 4 1 1 4 0 11

All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

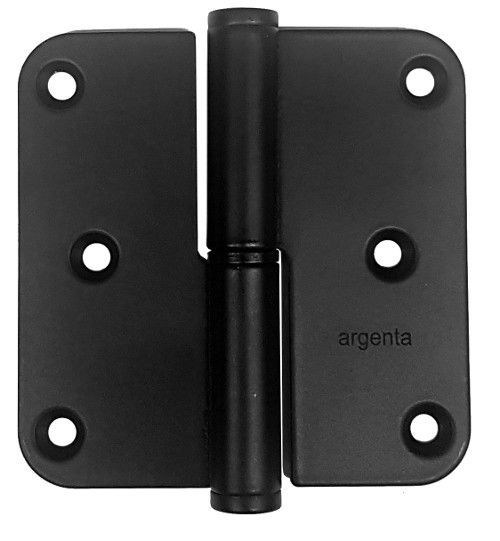

Lift off hinge RFS 89/89A, black, LEFTCode: SB00016654Art. Nr.: 855 38989714Price:From €8.18In Stock: 26 pc.
-
Lift off hinge RFS 89/89A, black, RIGHTCode: SB00016653Art. Nr.: 855 38989713Price:From €8.18In Stock: 17 pc.
width | 89 mm |
---|---|
adjustment | not adjustable |
anti-corrosion resistance | class 4 according to EN 1935 - very high |
anti-corrosion resistance in accordance with EN 1935 | class 5 - ultra high |
anti-intruder protection | no |
base assortment | No |
class as per EN 1935 | class 3 |
corner radius | R10 |
door construction | for non-rebated doors |
door direction | when ordering please indicate door swing direction |
fastening elements | must be ordered separately |
fire safety | suitable for fire and smoke safety doors |
groove for leaf seal | no |
height | 89 mm |
hinge shape | rounded |
hinge type | standard hinge |
installation template | available for sale or rent |
knuckle diameter | 12 mm |
leaf maximum weight | 48 kg |
leaf material | wood |
load capacity | middle |
maintenance | not required (self-lubricating bearings) |
Manufacturer | ARLU |
material | coloured steel |
material thickness | 2.5 mm |
sound insulation | no |
spindle diameter | 7 mm |
suitable for aluminium frames | suitable |
suitable for industrial frames | suitable using additional mounting parts |
suitable for steel frames | suitable |
suitable for timber frames | suitable |
