Lift off butt hinge RDBB807 89/89

Product code
MB00000059
All prices include VAT
From €10.22
From €10.22
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Lift off butt hinge RDBB807 89/89
Manufacturer - BSW (Germany)

    • suitable for doors with high usage and recommended for public buildings
    • with fixed knuckle and ball-bearing rust-proof pin
    • lift off butt hinge with rounded corners
    • with stainless steel washer
    • please indicate door swing direction upon order
    • complies with EN 1935 requirements, CE certificate approved
    • max load: up to 100 kg (2 hinges per leaf)
    • size: 89x89 mm
    • knuckle: 16 mm
    • material thickness:3 mm
    • screws: 4,5 x 40 mm
    • stainless steel hinges 89x89 classification code according to DIN EN 1935: 4 7 5 1 1 4 0 12
    • material:

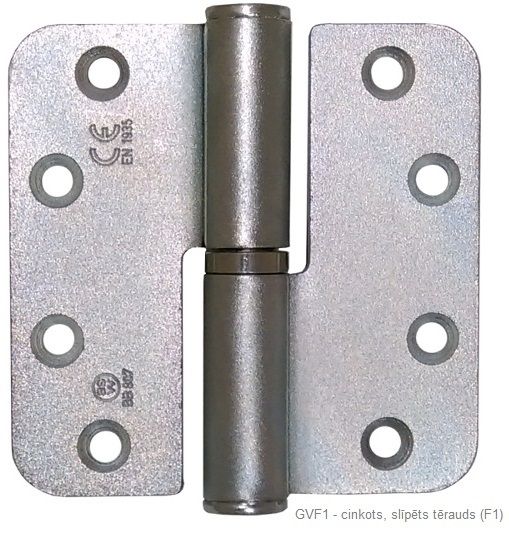

      • stainless steel, blasted, galvanised with aluminium coating F1 (GVF1)

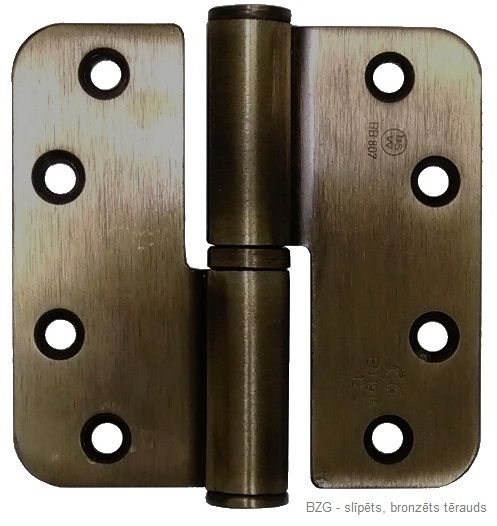

      • steel, bronze-plated satin (BZG)
      • steel, chrome-plated polished (CMP)
      • steel, galvanised (GV)

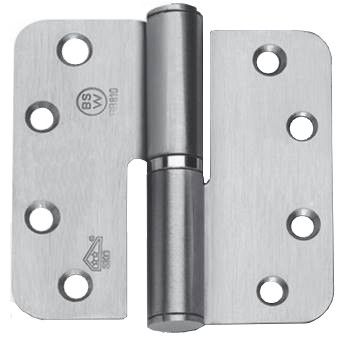

      • stainless steel, matt (STD)

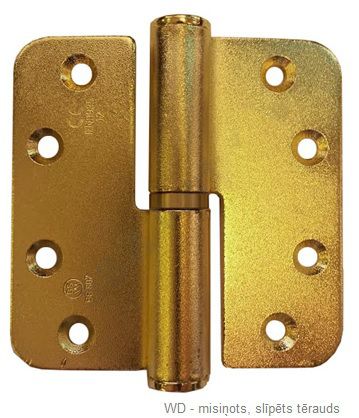

      • steel, brass-plated satin (WD)
      • white (WE)

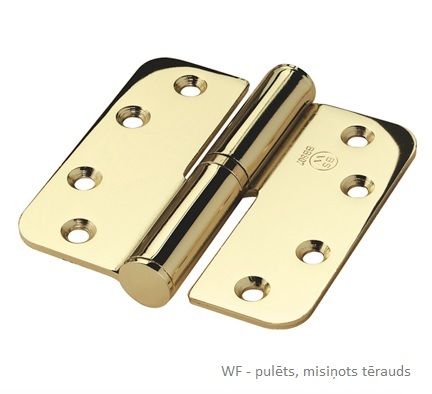

      • steel, brass-plated polished (WF)
      • steel, nickel-plated (NF)

Installation
  • All maximum load data indicated in the Technical Data refer to the use of two hinges on a door set of 2000 x 1000 x 40mm. To calculate the adjusted leaf weight that represents its actual load and determines the choice of hinges, please bear in mind the following additions:
    • use of door closer: +37%
    • automatic operator: +50%
    • door stop (>60% of door width): +50%
    • extra wide door per cm (up to 120cm total width): +1,5%
  • In order to choose appropriate hinges for wider doors and in case of other inquiries please contact our specialists.
  • Using a third hinge generally does not increase the maximum load, as it often is placed in the middle between the top and the bottom hinge to prevent the door leaf from warping or to create a symmetrical look. We recommend installing a third hinge 350 mm below the top hinge for extra wide doors or if using a door closer or automatic operator, to support the top hinge.
  • To achieve the maximum load it is preconditional that:
    • the hinges are fixed in line precisely and professionally;
    • the screws used for installation are those recommended by the manufacturer;
    • the frame is stable and firmly fixed to the wall.



All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Butt hinge RDBB807 89x89 mm, brass-plated polished, LEFT
    Butt hinge RDBB807 89x89 mm, brass-plated polished, LEFT
    Code: SB00019282
    Art. Nr.: 15 807010890891220/N
    Price:
    From €19.48
    In Stock: 27 pc.
  2. Butt hinge RDBB807 89x89 mm, brass-plated, RIGHT
    Butt hinge RDBB807 89x89 mm, brass-plated, RIGHT
    Code: SB00019278
    Art. Nr.: 15 807000890891220/N
    Price:
    From €19.48
    In Stock: 68 pc.
  3. Butt hinge RDBB807 89x89 mm, brass-plated matt, LEFT
    Butt hinge RDBB807 89x89 mm, brass-plated matt, LEFT
    Code: SB00019281
    Art. Nr.: 15 807010890891210/N
    Price:
    From €14.34
    In Stock: 32 pc.
  4. Butt hinge RDBB807 89x89 mm, brass-plated matt, RIGHT
    Butt hinge RDBB807 89x89 mm, brass-plated matt, RIGHT
    Code: SB00019277
    Art. Nr.: 15 807000890891210/N
    Price:
    From €14.34
    In Stock: 38 pc.
  5. RDBB807 butt hinge, 89x89x3mm, 100kg, round corners, bronze-plated steel, left, BSW
    RDBB807 butt hinge, 89x89x3mm, 100kg, round corners, bronze-plated steel, left, BSW
    Code: SB00020124
    Art. Nr.: 15 807010890891330/N
    Price:
    From €22.46
    In Stock: 20 pc.
  6. RDBB807 butt hinge, 89x89x3mm, 100kg, round corners, bronze-plated steel, right. BSW
    RDBB807 butt hinge, 89x89x3mm, 100kg, round corners, bronze-plated steel, right. BSW
    Code: SB00020125
    Art. Nr.: 15 807000890891330/N
    Price:
    From €22.46
    In Stock: 27 pc.

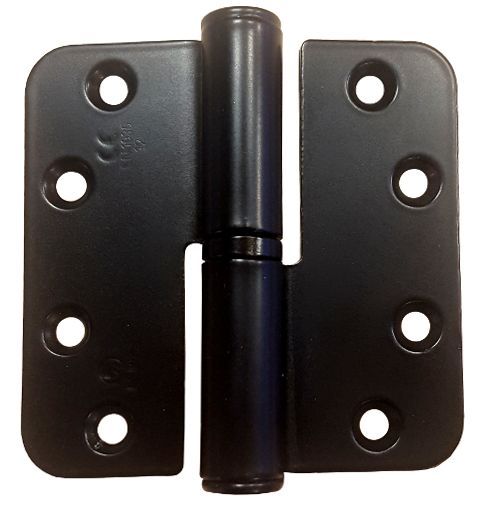

  7. RDBB807 butt hinge, 89x89x3mm, 100kg, round corners, steel, black coloured, left, BSW
    RDBB807 butt hinge, 89x89x3mm, 100kg, round corners, steel, black coloured, left, BSW
    Code: SB00019293
    Art. Nr.: 15 807010890891120/N
    Price:
    From €22.75
    In Stock: 0 pc.
  8. Butt hinge RDBB807 89x89 mm, black matt, RIGHT
    Butt hinge RDBB807 89x89 mm, black matt, RIGHT
    Code: SB00019276
    Art. Nr.: 15 807000890891120/N
    Price:
    From €22.75
    In Stock: 16 pc.
  9. Butt hinge RDBB807 89x89 mm, galvanised F1, LEFT
    Butt hinge RDBB807 89x89 mm, galvanised F1, LEFT
    Code: SB00019279
    Art. Nr.: 15 807010890891020/N
    Price:
    From €10.22
    In Stock: 79 pc.
  10. Butt hinge RDBB807 89x89 mm, galvanised F1, RIGHT
    Butt hinge RDBB807 89x89 mm, galvanised F1, RIGHT
    Code: SB00019275
    Art. Nr.: 15 807000890891020/N
    Price:
    From €10.22
    In Stock: 74 pc.
  11. Butt hinge RDBB807 89x89 mm, stainless steel, LEFT
    Butt hinge RDBB807 89x89 mm, stainless steel, LEFT
    Code: SB00019274
    Art. Nr.: 15 807010890891620/N
    Price:
    From €14.22
    In Stock: 19 pc.
  12. Butt hinge RDBB807 89x89 mm, stainless steel, RIGHT
    Butt hinge RDBB807 89x89 mm, stainless steel, RIGHT
    Code: SB00019273
    Art. Nr.: 15 807000890891620/N
    Price:
    From €14.22
    In Stock: 122 pc.
width 89 mm
adjustment not adjustable
anti-corrosion resistance certified according to EN 1935 - depending on finish
anti-corrosion resistance in accordance with EN 1935 class 5 - ultra high
anti-intruder protection no
class as per EN 1935 class 4
corner radius R10
door construction for non-rebated doors
door direction when ordering please indicate door swing direction
fastening elements must be ordered separately
fire safety suitable for fire and smoke safety doors
groove for leaf seal no
height 89 mm
hinge shape rounded
hinge type standard hinge
installation template available for sale or rent
knuckle diameter 16 mm
leaf maximum weight 100 kg
leaf material wood
load capacity middle
maintenance not required (self-lubricating bearings)
Manufacturer BSW
material steel / stainless steel
material thickness 3 mm
Pamatsortiments Yes
sound insulation no
suitable for aluminium frames suitable
suitable for industrial frames suitable
suitable for steel frames suitable
suitable for timber frames suitable
