Set of strike plates for multi-point locks with hooks and bolts 15-530E/3615-530Q31

Product code
KFV-15-530E/3615-530Q31
From €40.06
Reset selection
Angled security strike plate KFV 15-530E Z   €13.85
Angled security strike plate KFV 3615-530Q   €13.10

Price as configured €40.06

kit
The selected product is currently out of stock.
Central strike plate KFV 15-530E
Manufacturer - KFV (Germany)
    • angled security strike plate for multi-point lock base body
    • adjustable latch seat
    • size: 250 x 10 x 30 mm
    • thickness: 3 mm
    • rounded face plate, R: 8 mm
    • standard strike plate is fitted with adjustable latch seat KFV 115-34 which may be changed to electromagnetic door release or rolling latch lock KFV 115B
    • please indicate door swing direction (left/right) upon order
    • finish: light galvanised

Auxiliary casing strike plate KFV 3615-530Q
Manufacturer - KFV (Germany)
    • angled security strike plate for wooden doors
    • suitable for multi-point lock auxiliary locks with hook and bolt
    • size: 180 x 10 x 30 mm
    • thickness: 3 mm
    • rounded face plate, R: 8 mm
    • adjustable depth
    • please indicate door swing direction (left/right) upon order
    • available finishes: light galvanised


Adjustment module Q (standard set)

  • saves installation time and costs
  • increased adjustment range to 5 mm (+/ 2,5 mm)
  • higher thermal insulation and protection against wind and rain
  • sturdy fixation with 3 screws delays warping under extreme bolt or hook side-pressure
  • elegant design in grey tones
  • fits locks with a hook depth of 8 mm


    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

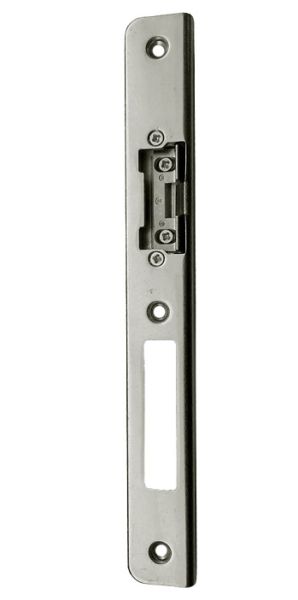

  1. 15-530E adjustable strike plate, lightly galvanised, left
    15-530E adjustable strike plate, lightly galvanised, left
    Code: SB00003587
    Art. Nr.: 3391168
    Price:
    From €13.85
    In Stock: 62 pc.

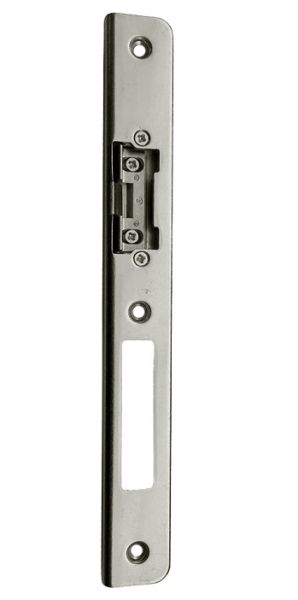

  2. 15-530E adjustable strike plate, lightly galvanised, right
    15-530E adjustable strike plate, lightly galvanised, right
    Code: SB00003426
    Art. Nr.: 3278487
    Price:
    From €13.85
    In Stock: 41 pc.
  3. 3615-530Q/31RS strike plate, lightly galvanised, right
    3615-530Q/31RS strike plate, lightly galvanised, right
    Code: SB00003800
    Art. Nr.: 3478289
    Price:
    From €13.10
    In Stock: 54 pc.
  4. 3615-530Q/31LS strike plate, lightly galvanised, left
    3615-530Q/31LS strike plate, lightly galvanised, left
    Code: SB00003801
    Art. Nr.: 3478290
    Price:
    From €13.10
    In Stock: 82 pc.
width 30 mm
case material wood
door construction for non-rebated and rebated doors
door direction when ordering please indicate door swing direction
installation type flush
lock type (lock points) multi-point
Manufacturer KFV
material steel / stainless steel
product type Strike plate set for multi-point locks
purpose for exterior doors
shape rounded
strike plate compatibility for round bolts + hooks
