Surface-mounted industrial gate lock LAKQ U2

Manufacturer - LOCINOX (Belgium)

  • high-quality gate lock with handle and cylinder
  • suitable for all industrial gates
  • durability of at least 500'000 cycles
  • stainless steel mechanism
  • E-coated lock withstands 1000 hours of salt spray test
  • 20 mm continuous bolt adjustability ensures perfect latching / locking process
  • up to 20 mm continuous adjustment of the daybolt without dismounting the lock
  • easy left or right changing of the self-latching daybolt
  • key-operated self-latching bolt
  • solid stainless steel single-turn deadbolt with 23 mm throw
  • standard set is supplied with handle pair in anodised aluminium
  • 4-hole fixing with two hexagon socket head screws
  • distance between fixing centres: 140 mm
  • centre distance: 60 mm
  • lock: 90 x 160 mm
  • faceplate: 31 mm
  • suitable for square gate profiles of 40-60 mm
  • for a fast and highly precise installation, we recommend using the Drill-Fix drilling caliber
  • lock is available in the following colours:
    • RAL 6005 green
    • RAL 6009 dark green
    • RAL 7016 anthracite
    • RAL 7040 grey
    • RAL 9005 black
    • RAL 9010 white
    • silver tone
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Visma Quote

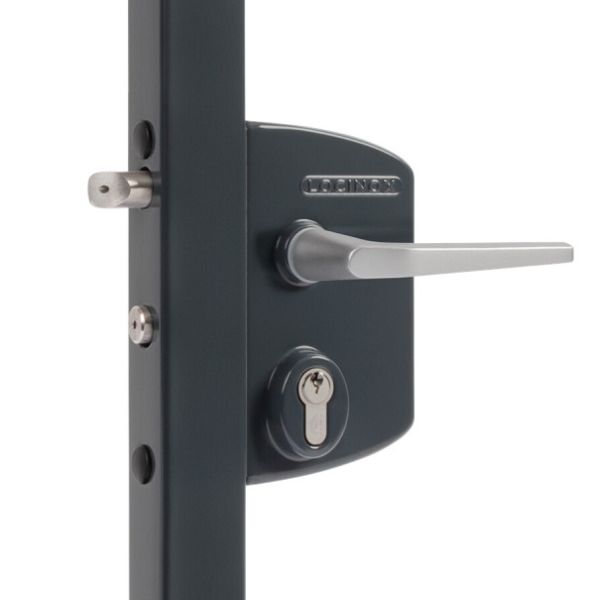

    Gate lock for rectangular profiles 40-60mm, anthracite RAL 7016
    Gate lock for rectangular profiles 40-60mm, anthracite RAL 7016
    Code: SB00020524
    Art. Nr.: LAKQ4040U2L7016
    Price:
    From €80.11
    In Stock: 0 pc.
  2. Visma Quote

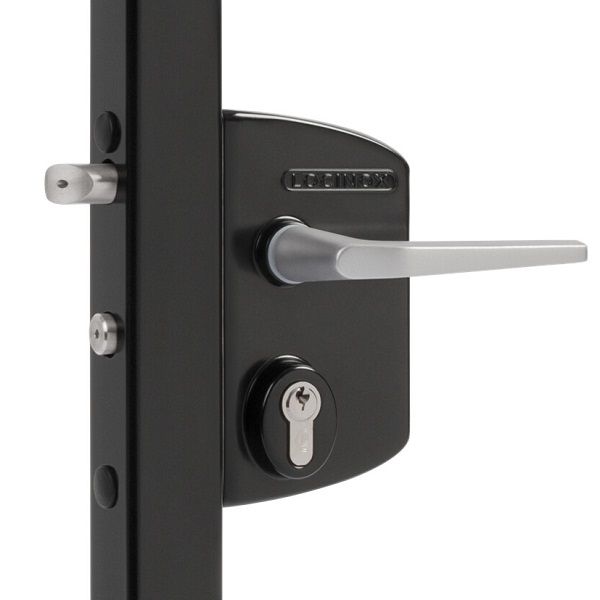

    Gate lock for recatangular profiles 40-60mm, black RAL 9005
    Gate lock for recatangular profiles 40-60mm, black RAL 9005
    Code: SB00020523
    Art. Nr.: LAKQ4040U2L9005
    Price:
    From €85.10
    In Stock: 0 pc.
  3. Visma Quote

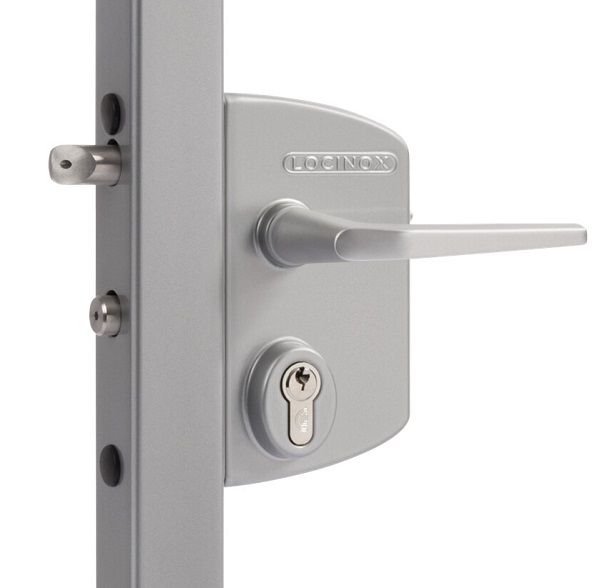

    Gate lock for recatangular profiles 40-60mm, silver
    Gate lock for recatangular profiles 40-60mm, silver
    Code: SB00020526
    Art. Nr.: LAKQ4040U2LZILV
    Price:
    From €88.16
    In Stock: 0 pc.
  4. Visma Quote

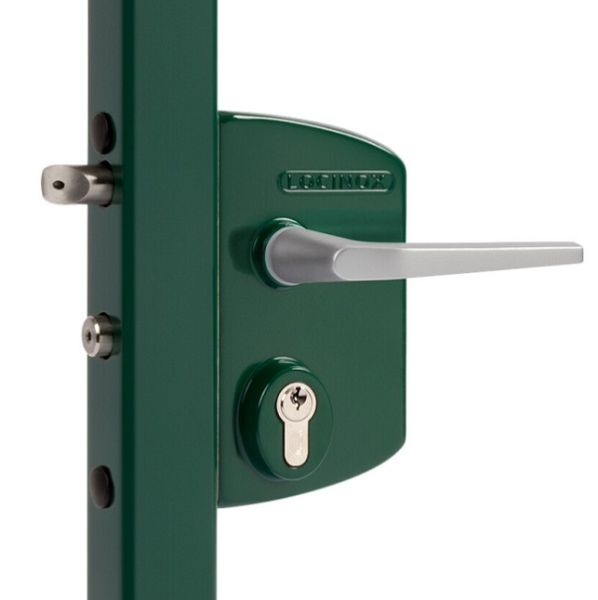

    Gate lock for recatangular profiles 40-60mm, green RAL 6005
    Gate lock for recatangular profiles 40-60mm, green RAL 6005
    Code: SB00020525
    Art. Nr.: LAKQ4040U2L6005
    Price:
    From €80.11
    In Stock: 0 pc.
Manufacturer LOCINOX
purpose for gates
profile shape square
latch self-locking, key-retractable
lock bolt single turn
installation type screw-on
shape rounded
door direction universal use for DIN right and left hand doors
load capacity high
centre distance 60 mm
size 8 x 140 mm
bolt projection 23 mm
face plate width 31 mm
distance between supporting centres 140 mm
material aluminium
