HAWA FRONTSLIDE 60 MATIC hardware system for sliding shutters with motorised control

Product code
FRONTSLIDE-60-M
Hawa View catalogue of manufacturer
main product photo

From €1,719.68

Reset selection

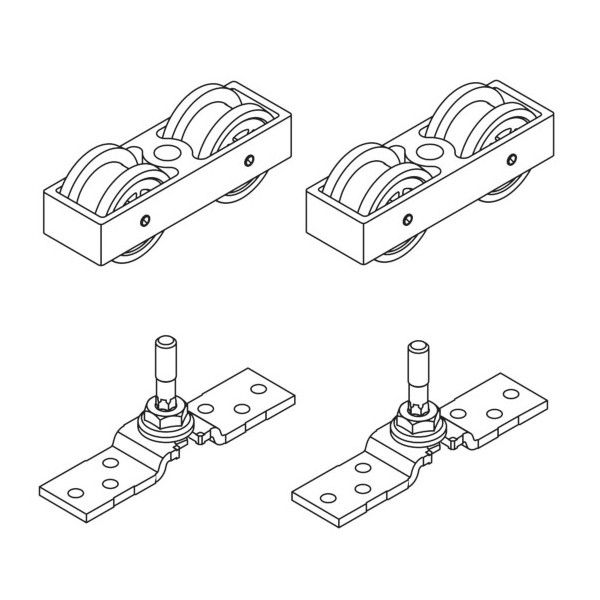

FRONTSLIDE 60 MATIC roller set for 1 door   €137.90
Code: SB00023252
Art. Nr.: 25132
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
FRONTSLIDE 60 A track, anodized aluminum, length as required (price per 1 m)   €68.49
Code: SB00008551
Art. Nr.: 24796
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.

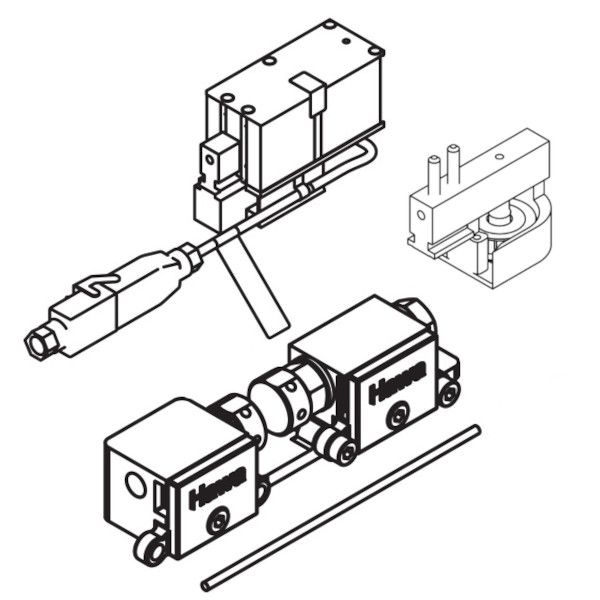

MOTRONIC 60 SMI drive with timing belt lock and direction change roller   €1,454.83
Code: SB00023253
Art. Nr.: 30520
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.
HAWA Timing belt for sliding systems   €58.46

Price as configured €1,719.68

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

HAWA FRONTSLIDE 60 MATIC hardware system for sliding shutters with motorised control

Manufacturer - HAWA (Switzerland)

Whether you have wooden, aluminium or plastic shutters; whether the facade is large or small and whether you need protection against sunlight or restrict visibility, the wide range of HAWA FRONTSLIDE models offers the right solution for every need and every construction situation. It is your go-to solution for saving space and creating an expressive facade image with individual visual accents.

The FRONTSLIDE MATIC versions offer automated shutter system control with a high-quality motor that requires no special maintenance and is recognised as the quietest motor of its kind on the market. The FRONTSLIDE MATIC motor can be integrated into the building automation system using the SMI interface. The automated system enables optimal use of daylight depending on each setting.

  • combines functionality, proven quality and modern design
  • robust, CE-certified mechanism with high wind and corrosion resistance, suitable for outdoor use
  • system tested in 100,000 test cycles
  • takes up very little space, protects large glass facades from the sun and adverse weather conditions
  • freely adjustable protection against visibility and sunlight
  • wide range of options for facade design
  • system can be operated electronically from inside the room
  • guide rail technology ensures smooth sliding without vibration or noise
  • all system components are protected against corrosion and do not require special maintenance
  • easy installation
  • flawless functionality for many years


Technical data

  • hardware system for sliding shutters with a single leaf weighing up to 60 kg and automated control
  • integrates into the general home automation system and control via the SMI interface
  • suitable for wooden, PVC and metal shutters
  • with top roller suspension and top-mounted rail
  • installation on the ceiling or window lintel; optionally with an angled profile for wall mounting
  • can be individually closed/opened in any position; opening range: half the width of the opening
  • equipped with 2 plastic double roller mechanisms with stainless steel M8 suspension bolts
  • anodised aluminum rail, standard sizes: 3500 / 6000 mm or cut to individual size
  • anodised aluminum guide rail, standard sizes 6000 mm or cut to individual size
  • press-on decorative cover strip for the inside and/or outside of the rail in 2 finishes - colourless anodised or untreated, intended for varnishing
  • maximum weight of a single shutter leaf: 60 kg
  • maximum leaf height: up to 3200 mm
  • leaf width: 600 - 3750 mm
  • maximum leaf surface area: 6.24 m2
  • maximum system width: 7500 mm
  • leaf thickness: 25-45 mm
  • height adjustment: +/-2 mm
  • highest wind resistance level: grade 6 according to EN 13659
  • operating force: grade 1 according to EN 13659
  • corrosion resistance: grade 4 according to DIN EN 1670 (very high resistance, suitable for outdoor use in inland climates)


Motor technical data

  • motor type: HAWA MOTRONIC 60 SMI
  • glass fibre reinforced, durable timing belt with high tensile strength
  • shutters can be removed without removing the timing belt
  • safety system for stopping the motor in case of obstruction, protecting the hardware from possible damage
  • power supply: 100-240 VAC, 50/60 Hz, 30W
  • maximum starting voltage: 16 A
  • overvoltage protection category: II
  • protection class: I
  • operational temperature range: -20° C to +60° C
  • pollution degree: 1
  • electrical safety grade: IP 54
  • max. speed: 100 mm/s
  • max. force: 100 N (integrated overload protection)
  • switches and network equipment are not included in the set
