Skylight opener OL 90 N

Product code
MB00009468
GEZE
main product photo
All prices include VAT
From €25.85
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Skylight opener OL 90 N

Manufacturer - GEZE

  • frame surface-mounted manual window opener
  • max. opening angle: 170° for windows of any height
  • adjustable opening angle
  • flat and compact design enables installation in tight spaces
  • built-in leaf locking mechanism
  • protected against unhinging and lockable lever offer additional security
  • simple opener re-setting and unhooking using a release button enables window cleaning from the inside and outside
  • simplified installation with a high degree of pre-assembly
  • suitable for wooden, plastic and aluminium windows


Usage

  • convenient daily ventilation for rooms and staircases
  • suitable for inward-opening bottom-hung windows
  • may also be used on rectangular inward-opening top-hung windows
  • suitable also for more complex designs with specialised shapes such as angled, triangular, round and arched windows, as well as for various window lintels
  • coupling of several windows is possible with the corner angle transmission


Technical data

  • profile size: 242 x 49 x 16 mm
  • min. leaf width: 380 mm
  • min. leaf height: 250 mmn
  • maks. leaf weight: 80 kg
  • hardware step: 54 mm


Set example



Milling examples


CATALOGUES and TECHNICAL DOCUMENTS

GEZE manual window opening systems - product brochure (EN) GEZE manual window opening systems - product brochure (EN)

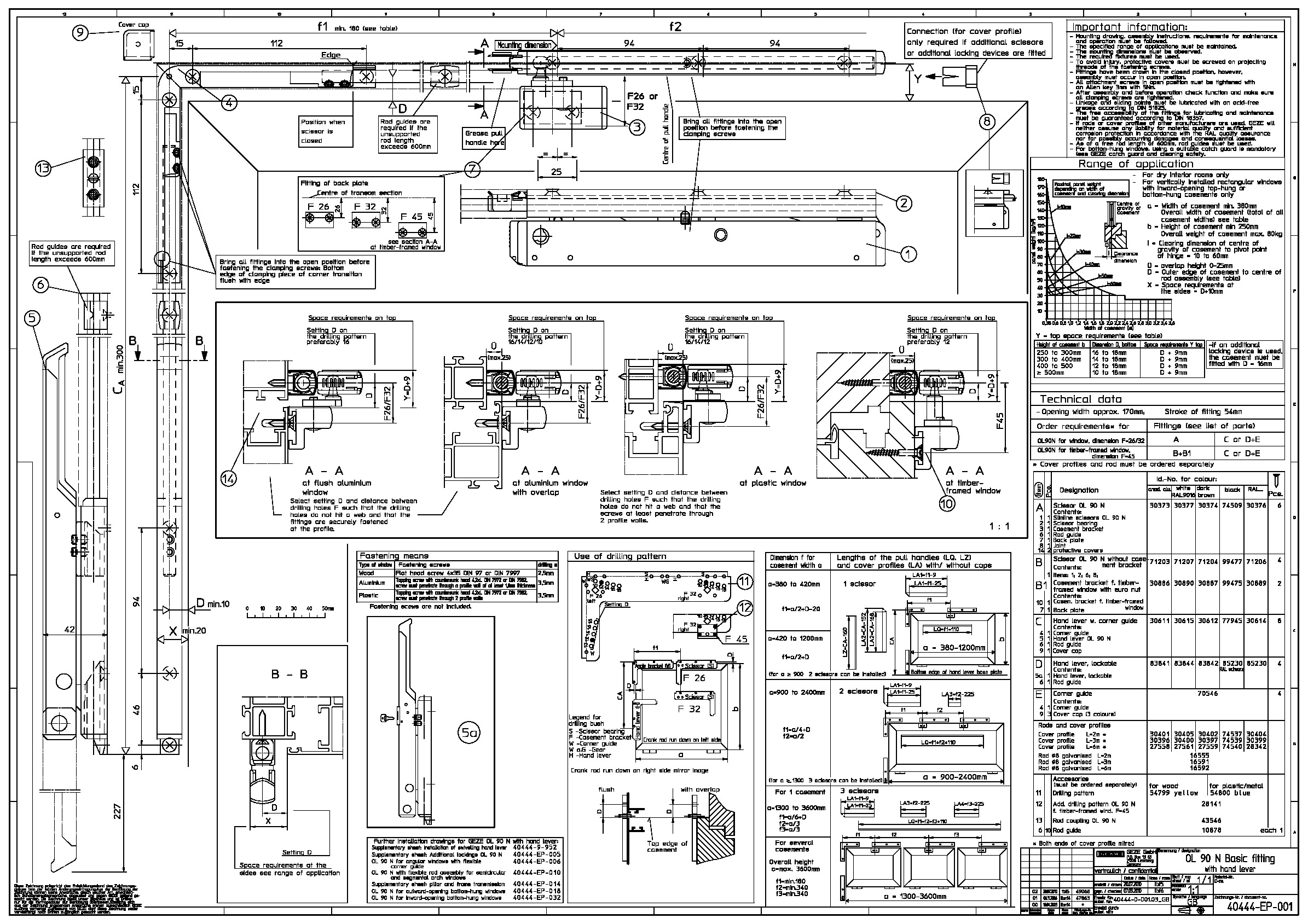

GEZE OL 90 N assembly drawings with standard handle GEZE OL 90 N assembly drawings with standard handle
GEZE OL 90 N - installation instructions for standard windows GEZE OL 90 N - installation instructions for standard windows
GEZE OL 90 N - assembly instructions with flexible transition GEZE OL 90 N - assembly instructions with flexible transition
GEZE OL 90 N - assembly instructions with crank GEZE OL 90 N - assembly instructions with crank

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Skylight opener OL 90 N, white
    Skylight opener OL 90 N, white
    Code: SB00004565
    Art. Nr.: 030377
    Price:
    From €29.96
    In Stock: 2 pc.
  2. Skylight opener OL 90 N, brown
    Skylight opener OL 90 N, brown
    Code: SB00004564
    Art. Nr.: 030374
    Price:
    From €29.96
    In Stock: 3 pc.
  3. Skylight opener OL 90 N, silver tone
    Skylight opener OL 90 N, silver tone
    Code: SB00004563
    Art. Nr.: 030373
    Price:
    From €25.85
    In Stock: 3 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Handle with corner gear for window opening scissors OL 90 N, silver tone
    Handle with corner gear for window opening scissors OL 90 N, silver tone
    Code: SB00004569
    Art. Nr.: 030611
    Price:
    From €33.17
    In Stock: 2 kit
  2. Handle with corner gear for window opening scissors OL 90 N, white
    Handle with corner gear for window opening scissors OL 90 N, white
    Code: SB00004571
    Art. Nr.: 030615
    Price:
    From €37.97
    In Stock: 1 kit
  3. Handle with corner gear for window opening scissors OL 90 N, brown
    Handle with corner gear for window opening scissors OL 90 N, brown
    Code: SB00004570
    Art. Nr.: 030612
    Price:
    From €37.97
    In Stock: 6 kit
  4. Transmission rod for window opening scissors OL 90 N, Ø8 mm x 3000mm, galvanized
    Transmission rod for window opening scissors OL 90 N, Ø8 mm x 3000mm, galvanized
    Code: SB00004504
    Art. Nr.: 016591
    Price:
    From €12.12
    In Stock: 2 pc.
  5. Cover profile for OL 90 N transmission rod, 3000 mm, silver tone
    Cover profile for OL 90 N transmission rod, 3000 mm, silver tone
    Code: SB00004566
    Art. Nr.: 030396
    Price:
    From €18.84
    In Stock: 3 pc.
  6. Cover profile for OL 90 N transmission rod, 3000 mm, white
    Cover profile for OL 90 N transmission rod, 3000 mm, white
    Code: SB00004568
    Art. Nr.: 030400
    Price:
    From €28.16
    In Stock: 1 pc.
  7. Cover profile for OL 90 N transmission rod, 3000 mm, brown
    Cover profile for OL 90 N transmission rod, 3000 mm, brown
    Code: SB00004567
    Art. Nr.: 030397
    Price:
    From €28.16
    In Stock: 2 pc.
  8. Guide for transmission rod OL 90 N
    Guide for transmission rod OL 90 N
    Code: SB00004101
    Art. Nr.: 010878
    Price:
    From €0.77
    In Stock: 0 pc.
    Visma Quote
  9. Flexible transition for window opening scissors OL 90 N, 1000 mm, EV1/white, without accessories
    Flexible transition for window opening scissors OL 90 N, 1000 mm, EV1/white, without accessories
    Code: SB00004132
    Art. Nr.: 022720
    Price:
    From €92.18
    In Stock: 2 pc.
  10. Mounting kit for OL 90 N flexible transition
    Mounting kit for OL 90 N flexible transition
    Code: SB00004171
    Art. Nr.: 030798
    Price:
    From €38.18
    In Stock: 0 kit
    Visma Quote
Manufacturer GEZE
purpose for skylight windows
leaf material for wooden/plastic/aluminium windows
adjustment adjustable opening angle
opening direction inwards
installation type to door frame
leaf maximum weight 80 kg
throw 54 mm
maximum opening angle 170°
body dimensions 242 x 49 x 16 mm
leaf width min. 380 mm
leaf height min. 250 mm
