Window handle Dieckmann 1070
Product code
MB00001136
All prices include VAT
From
€16.47
Only %1 left
Questions and answers
Aluminium window handle Dieckmann 1070
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- 90° stop-in position
- click-on rose covers
- die-cast, fully concealed sub-construction
- concealed screws M5
- handle length from centre: approx. 120 mm
- handle diameter: approx. 20 mm
- distance from rose surface to handle outer edge: approx. 55 mm
- rose size: 75 x 34 mm
- rose thickness: 14.5 mm
- distance between fastening lug centres: 43 mm
- spindle Ø 7 mm, length 35 mm
- material:
-
-
- aluminium anodised, natural aluminium tone (F1)
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

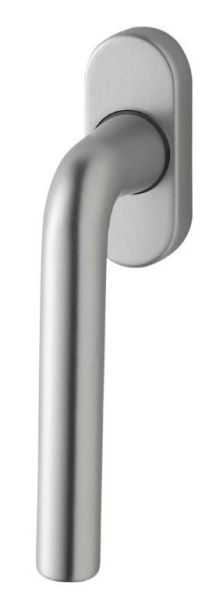

Window handle, aluminium F1Code: SB00011104Art. Nr.: 1070/1035/01Price:From €16.47In Stock: 0 pc.
| Manufacturer | DIECKMANN |
|---|---|
| material | aluminium anodised |
| purpose | for tilt and turn windows |
| fastening type | covered |
| installation type | screw-on base with a click-on rose |
| construction | Vienpusējs rokturis |
| material: sub-construction | plastic |
| handle length (from centre of spindle) | 120 mm |
| function | non-locking |
| rose type | standard |
| backplate/rose shape | oval |
| shape | L-shape |
| backplate/rose size | 34 x 75 mm |
| stop-in positions | 90° |
| spindle length | 35 mm or variable 35-42 mm |
| durability in accordance with EN 13126 | not certified |
| centring lug diameter | 10 mm |
| fastening centre distance | 43 mm |
| distance from leaf surface to outer edge of handle | 69.5 mm |
| backplate/rose thickness | 14.5 mm |
| handle square spindle size | 7 mm |
