Window handle FSB 34 1023 09039 ALU
Product code
MB00001411
All prices include VAT
From
€38.32
From
€38.32
Only %1 left

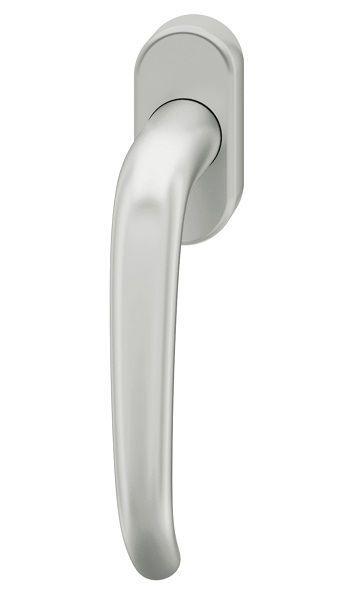

Aluminium window handle with oval rose FSB 34 1023 09039
Manufacturer - FSB (Germany)
Design: Johannes Potente
In the 1950s, the Swiss architect, sculptor and designer Max Bill got together with Ernst Moeckel to fashion a door handle that made design history as the 'Ulm handle'. From this, Johannes Potente created the 1023 model, which has been an alternative to common U-shaped models ever since.
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
Manufacturer - FSB (Germany)
Design: Johannes Potente
In the 1950s, the Swiss architect, sculptor and designer Max Bill got together with Ernst Moeckel to fashion a door handle that made design history as the 'Ulm handle'. From this, Johannes Potente created the 1023 model, which has been an alternative to common U-shaped models ever since.
-
- window handle with oval rose
- stop-in positions
- concealed screws
- fastening lugs: Ø 10 mm
- distance between fastening centres: 43 mm
- click-on rose cover fits onto rose sub-construction
- standard rose size: 32.5 x 70 mm
- rose thickness: 10 mm
- handle length from spindle centre: 123 mm
- total distance from casement surface: 72 mm
- spindle square: 7 mm
- variable spindle length: 24 - 38 mm
- long-term durability 5/180 in accordance with DIN EN 13 126-3
- material: aluminium anodised
- available finishes:
-
-
- F1 natural aluminium tone
- S5 medium dark bronze tone blasted
- S7 dark bronze tone blasted
- S8 black blasted
- powder coated in black RAL9005
- powder coated in white RAL9016
-
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Window handle on oval rose, aluminium F1Code: SB00001771Art. Nr.: 0 34 1023 09039 0105Price:From €38.32In Stock: 0 pc.
| Manufacturer | FSB |
|---|---|
| material | aluminium anodised blasted |
| purpose | for tilt and turn windows |
| fastening type | covered |
| installation type | screw-on base with a click-on rose |
| construction | Vienpusējs rokturis |
| handle length (from centre of spindle) | 123 mm |
| function | non-locking |
| rose type | standard |
| backplate/rose shape | oval |
| shape | L-shape |
| backplate/rose size | 32.5 x 70 mm |
| stop-in positions | 90° |
| spindle length | variable 24-38 mm |
| durability in accordance with EN 13126 | class 5/180 |
| centring lug diameter | 10 mm |
| fastening centre distance | 43 mm |
| distance from leaf surface to outer edge of handle | 72 mm |
| backplate/rose thickness | 10 mm |
| handle square spindle size | 7 mm |
