Window handle FSB 34 1107 09039 ALU

Product code
MB00000316
All prices include VAT
From €48.17
From €48.17
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

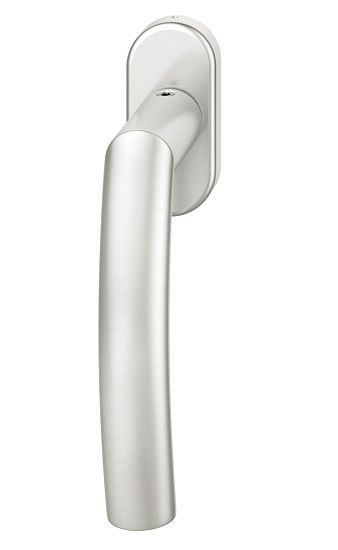

Aluminium window handle with oval rose FSB 34 1107 09039
Manufacturer - FSB (Germany)
Design: Hartmut Weise

Deriving from H. Weise's design handle 1108, also referred to as the 'Brakel Model', the FSB 1107 features the same elegant simplicity as the 1108 model.

    • stop-in positions
    • concealed screws
    • fastening lugs: Ø 10 mm
    • distance between fastening centres: 43 mm
    • click-on rose cover fits onto rose sub-construction
    • standard rose size: 32.5 x 70 mm
    • rose thickness: 10 mm
    • handle length from spindle centre: 124 mm
    • total distance from casement surface: 72 mm
    • spindle square: 7 mm
    • variable spindle length: 24 - 38 mm
    • standard rose shape: oval
    • long-term durability 5/180 in accordance with DIN EN 13 126-3
    • material aluminium anodised:
      • F1-natural aluminium tone
      • F2-new silver tone
      • S4-bronze tone, textured matt
      • S5-medium dark bronze tone
      • S7-dark bronze tone
      • S8-black
      • powder-coated in black (RAL9005), white (RAL9016), anthracite (RAL7016) or grey-brown (RAL8019) tone.


If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Window handle on oval rose, aluminium F1
    Window handle on oval rose, aluminium F1
    Code: SB00001808
    Art. Nr.: 0 34 1107 09039 0105
    Price:
    From €48.17
    In Stock: 0 pc.
backplate/rose shape oval
backplate/rose size 32.5 x 70 mm
backplate/rose thickness 10 mm
centring lug diameter 10 mm
designer Hartmut Weise
distance from leaf surface to outer edge of handle 72 mm
durability in accordance with EN 13126 class 5/180
fastening centre distance 43 mm
fastening type covered
function non-locking
handle length (from centre of spindle) 124 mm
handle square spindle size 7 mm
installation type screw-on base with a click-on rose
Manufacturer FSB
material aluminium anodised blasted
purpose for tilt and turn windows
rose type standard
shape L-shape
spindle length variable 24-38 mm
stop-in positions 90°
