Window handle FSB 34 1146 09039 ALU
Product code
MB00000318
All prices include VAT
From
€46.73
From
€46.73
Only %1 left

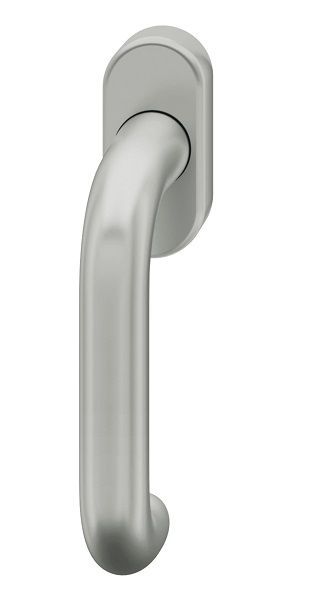

Aluminium window handle with oval rose FSB 34 1146 09039
Manufacturer - FSB (Germany)
In the early 1990s, the plain round rod of the stable-door handle was given a makeover. The shank was conically widened and a hemispherical tip was added to the bent end. Two small but important special features that have given the FSB 1146 model a character all of its own. The outcome was obvious - the model was actively copied throughout the world.
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
Manufacturer - FSB (Germany)
In the early 1990s, the plain round rod of the stable-door handle was given a makeover. The shank was conically widened and a hemispherical tip was added to the bent end. Two small but important special features that have given the FSB 1146 model a character all of its own. The outcome was obvious - the model was actively copied throughout the world.
-
- stop-in positions
- concealed screws
- fastening lugs: Ø 10 mm
- distance between fastening centres: 43 mm
- click-on rose cover fits onto rose sub-construction
- standard rose size: 32.5 x 70 mm
- rose thickness: 10 mm
- handle length from spindle centre: 120 mm
- total distance from casement surface: 71 mm
- spindle square: 7 mm
- variable spindle length: 24 - 38 mm
- standard rose shape: oval
- long-term durability 5/180 in accordance with DIN EN 13 126-3
- material aluminium anodised:
-
-
- F1-natural aluminium tone
- F2-new silver tone
- S4-bronze tone, textured matt
- S5-medium dark bronze tone
- S7-dark bronze tone
- S8-black
- powder-coated in black (RAL9005), white (RAL9016), anthracite (RAL7016) or grey-brown (RAL8019) tone.
-
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Window handle on oval rose, aluminium F1Code: SB00001820Art. Nr.: 0 34 1146 09039 0105Price:From €46.73In Stock: 0 pc.
| backplate/rose shape | oval |
|---|---|
| backplate/rose size | 32.5 x 70 mm |
| backplate/rose thickness | 10 mm |
| centring lug diameter | 10 mm |
| distance from leaf surface to outer edge of handle | 71 mm |
| durability in accordance with EN 13126 | class 5/180 |
| fastening centre distance | 43 mm |
| fastening type | covered |
| function | non-locking |
| handle length (from centre of spindle) | 120 mm |
| handle square spindle size | 7 mm |
| installation type | screw-on base with a click-on rose |
| Manufacturer | FSB |
| material | aluminium anodised blasted |
| purpose | for tilt and turn windows |
| rose type | standard |
| shape | L-shape |
| spindle length | variable 24-38 mm |
| stop-in positions | 90° |
