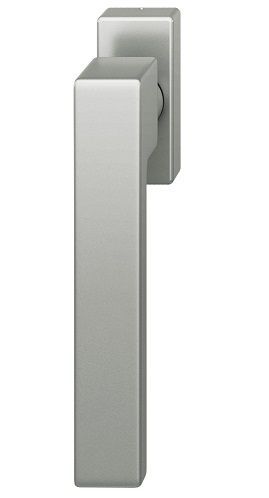

Aluminium window handle with rectangular rose FSB 34 1183 09040
Manufacturer - FSB (Germany)
Design: Hadi Teherani
When it came to the FSB 1183, Hadi Teherani broke with traditional patterns of thought. For framed doors we are familiar with cranked handle shapes on the closing side of the door, and standard lever handles on the other side, the so-called "Wittgenstein solution". Hadi Teherani radically reduced the variety of this type of handle: he achieved the function of the cranked handle – reducing the risk of skinning your thumb on the door frame – by simply shifting the handle's axis of rotation to the left.
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
Manufacturer - FSB (Germany)
Design: Hadi Teherani
When it came to the FSB 1183, Hadi Teherani broke with traditional patterns of thought. For framed doors we are familiar with cranked handle shapes on the closing side of the door, and standard lever handles on the other side, the so-called "Wittgenstein solution". Hadi Teherani radically reduced the variety of this type of handle: he achieved the function of the cranked handle – reducing the risk of skinning your thumb on the door frame – by simply shifting the handle's axis of rotation to the left.
-
- stop-in positions
- concealed screws
- fastening lugs: Ø 10 mm
- distance between fastening centres: 43 mm
- click-on rose cover fits onto rose sub-construction
- standard rose size: 32.5 x 70 mm
- rose thickness: 10 mm
- handle length from spindle centre: 142 mm
- total distance from casement surface: 62 mm
- spindle square: 7 mm
- variable spindle length: 24 - 38 mm
- standard rose shape: recctangular
- long-term durability 5/180 in accordance with DIN EN 13 126-3
- material aluminium anodised:
-
-
- F1-natural aluminium tone
- F2-new silver tone
- S4-bronze tone, textured matt
- S5-medium dark bronze tone
- S7-dark bronze tone
- S8-black
- powder-coated in black (RAL9005), white (RAL9016), anthracite (RAL7016) or grey-brown (RAL8019) tone.
-
If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Window handle on rectangular rose, aluminium F1Code: SB00001830Art. Nr.: 0 34 1183 09032 0105Price:From €82.15In Stock: 0 pc.
| backplate/rose shape | square |
|---|---|
| backplate/rose size | 32.5 x 70 mm |
| backplate/rose thickness | 10 mm |
| centring lug diameter | 10 mm |
| designer | Hadi Teherani |
| distance from leaf surface to outer edge of handle | 62 mm |
| durability in accordance with EN 13126 | class 5/180 |
| fastening centre distance | 43 mm |
| fastening type | covered |
| function | non-locking |
| handle length (from centre of spindle) | 142 mm |
| handle square spindle size | 7 mm |
| installation type | screw-on base with a click-on rose |
| Manufacturer | FSB |
| material | aluminium anodised blasted |
| purpose | for tilt and turn windows |
| rose type | standard |
| shape | L-shape |
| spindle length | variable 24-38 mm |
| stop-in positions | 90° |
