Window handle FSB 34 1289 09039 ALU 013
Aluminium pure window handle on oval rose FSB 34 1289 09039
Manufacturer - FSB (Germany)Design: Markus Michalski and Michael Schmidt
Model 1289 boasts contemporary and minimal aesthetics. Its elegant and nuanced lines at the front of the handle are a delight to the eye, while the well-proportioned curvature on the inside ensures comfortable and ergonomically soft gripping.
Model 1289 Aluminium Pure proves how good sustainability can look. Thanks to the naturalness of the largely untreated surface, Aluminium Pure blends in particularly well with exposed concrete walls and natural wood. Compared to an anodised surface, 37% less energy is consumed during production.
-
-
- window handle on oval rose
- stop-in positions
- concealed screws
- fastening lugs: Ø 10 mm
- distance between fastening centres: 43 mm
- click-on rose cover fits onto rose sub-construction
- standard rose size: 32.5 x 70 mm
- rose thickness: 10 mm
- handle length from spindle centre: 135 mm
- total distance from casement surface: 67 mm
- spindle square: 7 mm
- variable spindle length: 24 - 38 mm
- long-term durability 5/180 in accordance with DIN EN 13 126-3
- material: aluminium pure
-
- Products
- Price
- In Stock
- Quantity
-

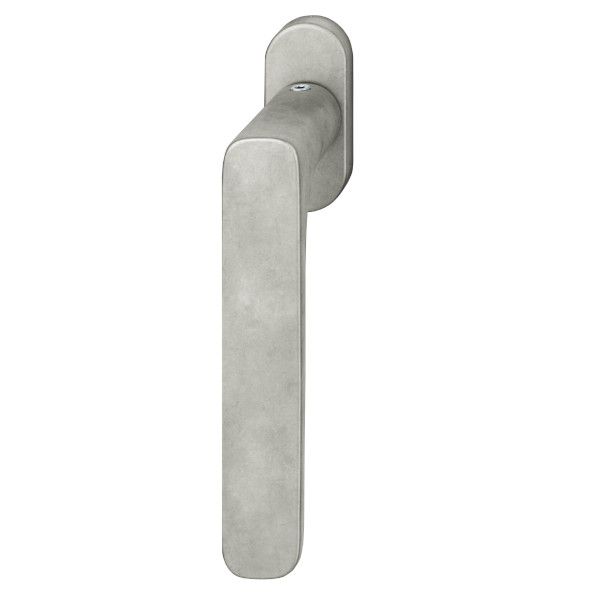

Window handle on oval rose, aluminium pure 013Code: SB00025198Art. Nr.: 0 34 1289 09039 0013Price:From €48.99In Stock: 0 pc.
Manufacturer | FSB |
---|---|
designer | Markus Michalski / Michael Schmidt |
material | Alumīnijs dabīgs |
purpose | for tilt and turn windows |
fastening type | covered |
installation type | screw-on base with a click-on rose |
handle length (from centre of spindle) | 135 mm |
function | non-locking |
rose type | standard |
backplate/rose shape | oval |
shape | L-shape |
backplate/rose size | 32.5 x 70 mm |
stop-in positions | 90° |
spindle length | variable 24-38 mm |
durability in accordance with EN 13126 | class 5/180 |
centring lug diameter | 10 mm |
fastening centre distance | 43 mm |
distance from leaf surface to outer edge of handle | 67 mm |
backplate/rose thickness | 10 mm |
handle square spindle size | 7 mm |
