Window handle STREAM ZINCRAL 484 SK

Product code
MB00001414
LINEA CALI View catalogue of manufacturer
main product photo
All prices include VAT
From €41.62
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Questions and answers
EN 13126 Būvkalumi. Logu un balkona durvju furnitūra - prasības un testa metodes
Window handle STREAM ZINCRAL 484 SK
Manufacturer - LINEA CALI (Italy)

Simple but distinctive lines dominate the design of this modern collection of handles characterized by an elegant un dynamic silhouette.

    • patented Linea Cali design
    • high-quality zinc alloy ZAMAK in various finishes
    • metal mechanism with 4 stop-in positions
    • total length of rose and handle: 162 mm
    • distance between fastening holes: 43 mm
    • rose size: 33 x 73 mm
    • fitted with an innovative anti-intrusion system SmartBlock which obstructs the rotation of the handle, thus preventing the window from being opened from the outside. The  system is activated automatically
    • unblocking does not require a key - the handle is unblocked by pressing the rose and turning the handle 90°. SmartBlock is also activated in airing mode, so you can feel safe while airing a room
    • available finishes:
      • chrome-plated, polished (CR)
      • chrome-plated, satin (CS)
      • matt black (VE)
      • satin anthracite (AS)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

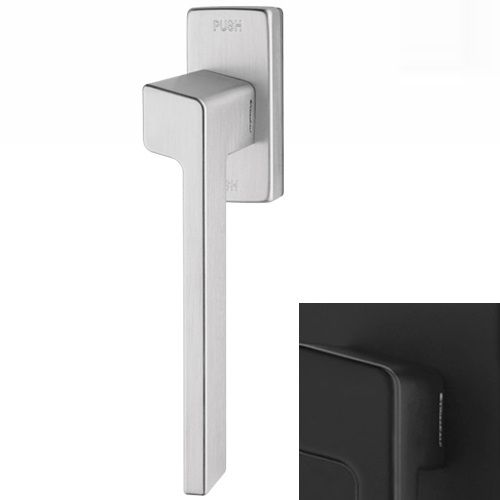

  1. STREAM ZINCRAL window handle with SMARTBLOCK function, matt black
    STREAM ZINCRAL window handle with SMARTBLOCK function, matt black
    Code: SB00010584
    Art. Nr.: 200484SKR742BU00VE
    Price:
    From €41.62
    In Stock: 0 pc.
    Visma Quote

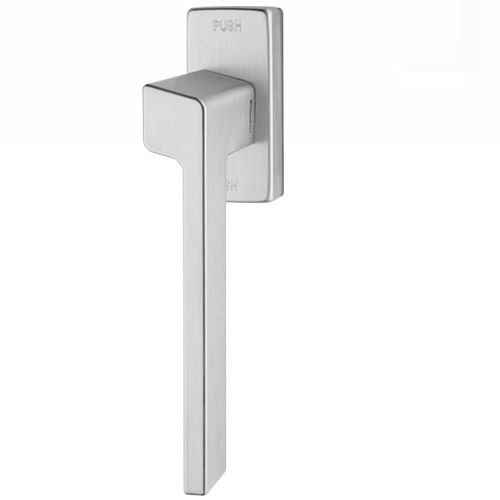

  2. STREAM ZINCRAL window handle with SMARTBLOCK function, satin chrome
    STREAM ZINCRAL window handle with SMARTBLOCK function, satin chrome
    Code: SB00010583
    Art. Nr.: 200484SKR742BU00CS
    Price:
    From €41.62
    In Stock: 0 pc.
    Visma Quote

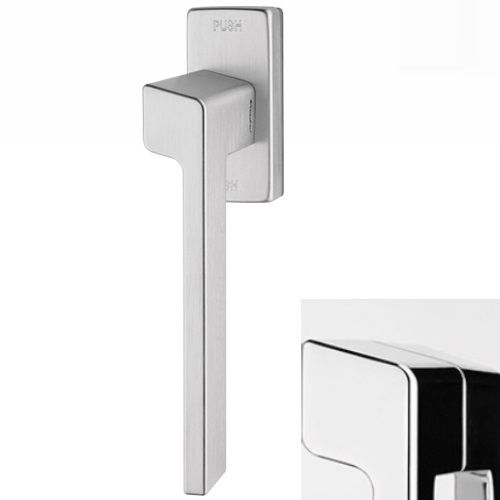

  3. STREAM ZINCRAL window handle with SMARTBLOCK function, polished chrome
    STREAM ZINCRAL window handle with SMARTBLOCK function, polished chrome
    Code: SB00010582
    Art. Nr.: 200484SKR742BU00CR
    Price:
    From €41.62
    In Stock: 0 pc.
    Visma Quote
Manufacturer LINEA CALI
material ZAMAK
purpose for tilt and turn windows
fastening type covered
installation type screw-on base with a click-on rose
construction Vienpusējs rokturis
function self-locking
rose type standard
backplate/rose shape square
shape L-shape
handle total length (from rose/backplate edge) 162 mm
backplate/rose size 33 x 73 mm
stop-in positions 90°
spindle length 32 / 42 / 50 mm
durability in accordance with EN 13126 not certified
fastening centre distance 43 mm
material properties (for specific finishes see tech. data) thick, resistant layer of chrome
EN 13126 Būvkalumi. Logu un balkona durvju furnitūra - prasības un testa metodes
