Magnetic lock KFV 116 1/2

Product code
KFV116
From €41.76
Reset selection
Magnetic lock KFV 116 1/2   €27.84
Strike plate with lining KFV 116 for magnetic lock   €13.92

Price as configured €41.76

kit
The selected product is currently out of stock.

Magnetic lock KFV 116 1/2

Manufacturer – KFV (Germany)

Advantages
  • elegant design with continuous lines for interior doors, with no protruding corners or edges visible
  • in an open position the latch is in line with the lock face plate and becomes virtually invisible
  • the door closes smoothly and easily – on closing, the powerful magnets pull the latch into the frame and secure it
  • easy to clean as the latch does not project above the face plate
  • high resistance against wear and tear, as the latch does not contact the frame profile
  • no special maintenance or lubrication required
  • convenient, straightforward installation with no surplus installation costs
  • when the door is closed, the special strike plate with the magnets in the latch seat is not visible

Technical data
  • magnetic lock for interior doors
  • lock types PZ, BB, WC and BAC/F
  • galvanised, closed lock case
  • suitable for interior doors with low usage
  • rounded face plate, size: 235 x 20 mm, 235 x 18 mm
  • PVC latch with magnet
  • bright, nickel-plated deadbolt
  • holes for affixing rose
  • spindle square Ø 8 mm
  • spindle depth: 55 mm
  • centre distance for PZ and BB locks - 72 mm, for WC locks - 78 mm
  • frame part is horizontally adjustable through a simple 180° turn of the latch backing, allowing the closing pressure to be adjusted by 1 mm
  • suitable for both left and right hand doors
  • available face plate finishes:
    • stainless steel, matt satin
    • stainless steel, black varnished

Lock options

  • 116 ½ PZW cylinders, with double turn bolt, key-retractable latch
  • 116 ½ BB with double turn bolt and one Facon 104 key, latch is not key-retractable
  • 116 ½ WC with 8 mm knob spindle square hole, single turn bolt with projection of 10,5 mm
  • 116 ½ F without bolt, face plate 20 mm, 8 mm spindle square hole


Strike plate types

Standard set (included in the set)

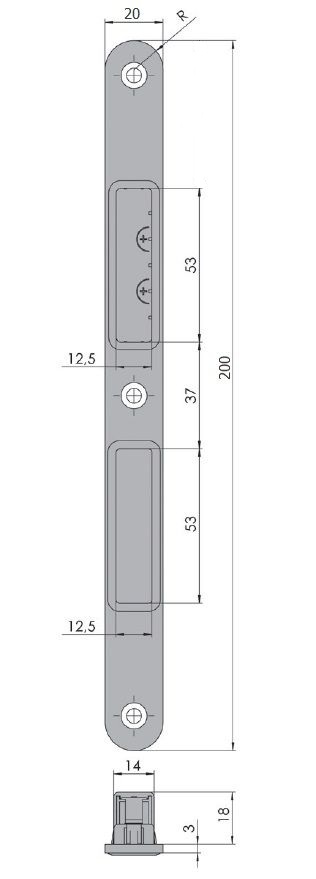

  • strike plate for PZ/BB/WC locks 116-200-20HR/41 - size: 200 x 20 mm, rounded, with latch and bolt seats:
    • stainless steel, matt polished
    • black varnished
    • coloured RAL 9005 (coloured in Latvia)
  • strike plate for BAC lock 116-120-20/41, rounded, with latch seat:
    • stainless steel
Other available options (must be ordered separately)
  • 116-245-20HR/41 - size: 245 x 20 mm, rounded, with latch and bolt seats, stainless steel, matt polished
  • 116-245-18HR/41 - size: 245 x 18 mm, rounded, with latch and bolt seats, stainless steel, matt polished
  • 116-120-20HR/41 - size: 120 x 20 mm, rounded, with latch and bolt seats, stainless steel, matt polished
  • 2514-116/SG - separate latch seat, grey tone

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 116-1/2-PZ 55/72-20 magnetic lock, st.steel black
    116-1/2-PZ 55/72-20 magnetic lock, st.steel black
    Code: SB00004027
    Art. Nr.: 3510017
    Price:
    From €36.25
    In Stock: 53 pc.
  2. 116-1/2-BB 55/72-20 magnetic lock, st.steel black
    116-1/2-BB 55/72-20 magnetic lock, st.steel black
    Code: SB00004026
    Art. Nr.: 3510016
    Price:
    From €36.25
    In Stock: 14 pc.
  3. 116-1/2-WC 55/78-20 magnetic lock, st.steel black
    116-1/2-WC 55/78-20 magnetic lock, st.steel black
    Code: SB00004028
    Art. Nr.: 3510018
    Price:
    From €36.25
    In Stock: 88 pc.
  4. 116-1/2-BAC 55-20 magnetic lock, st.steel black
    116-1/2-BAC 55-20 magnetic lock, st.steel black
    Code: SB00004033
    Art. Nr.: 3510043
    Price:
    From €36.25
    In Stock: 51 pc.
  5. 116-1/2-PZ 55/72-20 magnetic lock, st.steel
    116-1/2-PZ 55/72-20 magnetic lock, st.steel
    Code: SB00003775
    Art. Nr.: 3475257
    Price:
    From €27.84
    In Stock: 81 pc.
  6. 116-1/2-BB 55/72-20 magnetic lock, st.steel
    116-1/2-BB 55/72-20 magnetic lock, st.steel
    Code: SB00003776
    Art. Nr.: 3475258
    Price:
    From €27.84
    In Stock: 127 pc.
  7. 116-1/2-WC 55/78-20 magnetic lock, st.steel
    116-1/2-WC 55/78-20 magnetic lock, st.steel
    Code: SB00003777
    Art. Nr.: 3475259
    Price:
    From €27.84
    In Stock: 165 pc.
  8. 116-1/2-BAC 55-20 magnetic lock, st.steel
    116-1/2-BAC 55-20 magnetic lock, st.steel
    Code: SB00003778
    Art. Nr.: 3475261
    Price:
    From €27.84
    In Stock: 86 pc.
  9. 116-200-20 strike plate for magnetic mortise lock, stainless steel black
    116-200-20 strike plate for magnetic mortise lock, stainless steel black
    Code: SB00004036
    Art. Nr.: 3510077
    Price:
    From €17.04
    In Stock: 74 pc.
  10. 116-200-20 strike plate for magnetic mortise lock, stainless steel
    116-200-20 strike plate for magnetic mortise lock, stainless steel
    Code: SB00003772
    Art. Nr.: 3475204
    Price:
    From €13.92
    In Stock: 163 pc.
  11. 116-120-20 magnetic strike plate for BAC mortise lock, stainless steel
    116-120-20 magnetic strike plate for BAC mortise lock, stainless steel
    Code: SB00003771
    Art. Nr.: 3475203
    Price:
    From €13.92
    In Stock: 33 pc.
  12. Visma Quote
    116-120-20 pretplāksne magn. BAC slēdzenei, melna lakota
    116-120-20 pretplāksne magn. BAC slēdzenei, melna lakota
    Code: SB00003293
    Art. Nr.: 116-120RAL9005
    Price:
    From €17.65
    In Stock: 7 pc.
Manufacturer KFV
lock type single-point lock for hinged doors
lock operation magnetic
installation type mortise
purpose for interior doors
leaf material for wooden and metal doors
load capacity middle
class as per EN 12209 (DIN 18251) not certified
fire safety not suitable for fire safety doors
compatibility standard German (DIN)
bolt projection for WC lock 10.5 mm
possible spindle depth 55 mm
door direction universal use for DIN right and left hand doors
locking function PZ / BB / WC / BAC
centre distance PZ 72 mm
centre distance BB 72 mm
centre distance WC 78 mm
lock case galvanised closed
latch material plastic / magnet
latch key-retractable (PZ)
lock bolt material bright nickel-coated
bolt projection 20 mm
lock bolt PZ, BB - double turn / WC - single turn
sound insulation yes
handle square spindle size 8 mm
bundling options compatible with specific magnetic strike plates
face plate shape rounded
face plate width 20 mm
face plate length 235 mm
face plate finish nerūsējošais tērauds vai melna lakota
