Magnetic lock TOUCH&CLOSE

Product code

TOUCH-CLOSE

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

From €85.99

Reset selection

Lock

Magnetic lock TOUCH & CLOSE €69.56

locking function

colour / finish

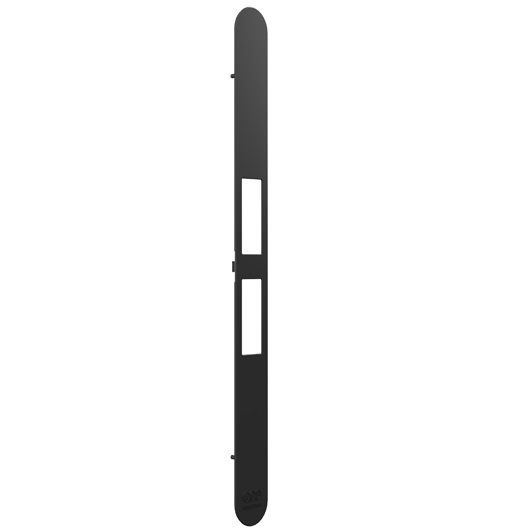

Lock face plate

Face plate for magnetic lock TOUCH & CLOSE €5.09

colour / finish

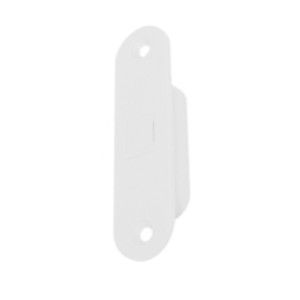

Strike plate

Door magnet strike plate Easy Touch €11.34

colour / finish

Price as configured €85.99

Quantity:

kit

The selected product is currently out of stock.

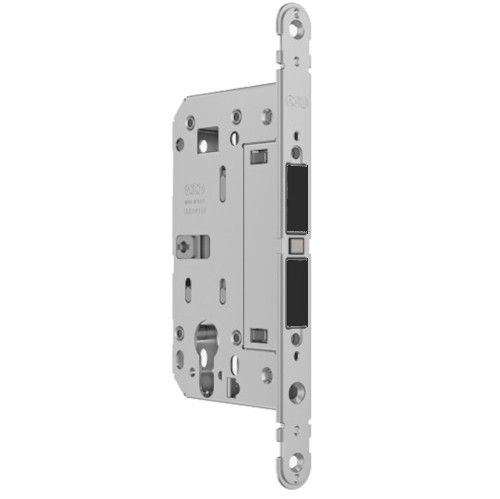

Magnetic lock TOUCH&CLOSE
Manufacturer - AGB

- patented contactless magnetic lock for interior doors with magnetic strike plate
- magnets lock the door contactlessly into closed position
- lock types: PZ with Euro cylinder and WC/bathroom (spindle 8 mm)
- magnetic power adjustable to user's preference, guaranteed regardless of the distance between door leaf and frame, range for adjustment: 20N – 40N
- suitable to use with any type of handle - since the handle is not used for release, options are limitless
- standard latch not required
- minimal design without visible screws and technical elements
- ideal solution for concealed frames where handle has to be concealed or minimal, as well as for built-in doors with handles matching leaf design
- magnet throw adaptable with 2.5 mm hexagonal key
- magnet colours: grey RAL 7036, black matt, white matt
- spindle depth: 50 mm / 60 mm
- lock case height: 132 mm
- cone-shaped bolt with 12 mm throw
- removable cover plate that covers fastening and adjusting screws, cover plate installed with barbs
- face plate: 18 x 196 mm, thickness: 2,7 mm
- face plate colour: chrome-plated matt, black, white
- fastening with 2 screws: 3,5 x 20 mm
- compatible with Easy Touch strike plate: 22 x 82 mm
- strike plate colours: grey, white, black

Functionality

magnets lock the door contactlessly into a closed position
the door is locked with a WC/bathroom knob or with a locking cylinder
opening of unlocked doors: by pushing with a touch or by pulling - with a handle of any shape and function
magnets are active only when the leaf is directly opposite the strike plate
when the door is closed, the magnets are retracted into the leaf along with the strike plate, thus ensuring a perfectly minimal design and avoiding potential issues caused by a protruding latch

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

Magnētiskā slēdzene TOUCH&CLOSE PZ, melna, bez priekšplāksnes
Code: SB00020761

Art. Nr.: SF18TPZZNE

Price:

From €69.56

In Stock: 1 pc.

Quantity:

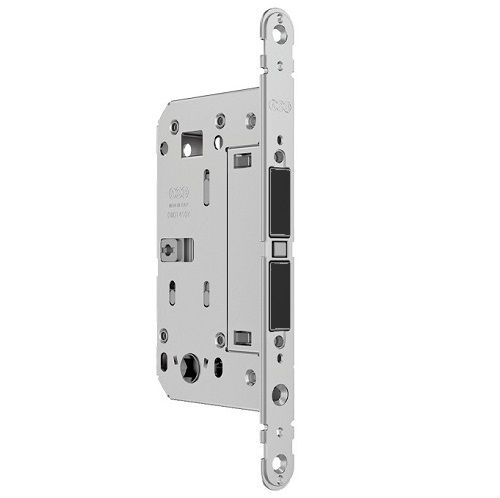

Magnētiskā slēdzene TOUCH&CLOSE WC, melna, bez priekšplāksnes
Code: SB00020721

Art. Nr.: SF18TWZNE

Price:

From €69.56

In Stock: 1 pc.

Quantity:

Priekšplāksne magnētiskajai slēdzenei TOUCH&CLOSE, melna
Code: SB00020722

Art. Nr.: SF18PZNE

Price:

From €5.09

In Stock: 3 pc.

Quantity:

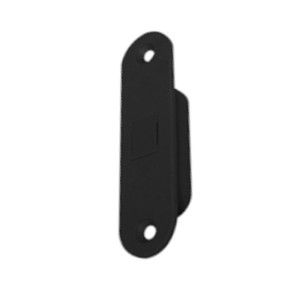

Door magnet strike plate Easy Touch, black
Code: SB00020687

Art. Nr.: PLFTZNEM

Price:

From €11.34

In Stock: 0 pc.

Quantity:

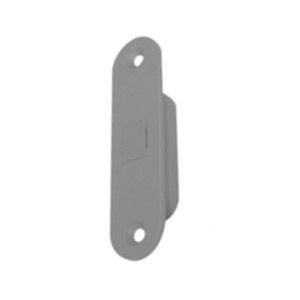

Door magnet strike plate Easy Touch, grey
Code: SB00020686

Art. Nr.: PLFTOCSM

Price:

From €11.34

In Stock: 0 pc.

Quantity:

Door magnet strike plate Easy Touch, white
Code: SB00020688

Art. Nr.: PLFTZBNM

Price:

From €11.34

In Stock: 1 pc.

Quantity:

Additional products

Products
Price
In Stock
Quantity

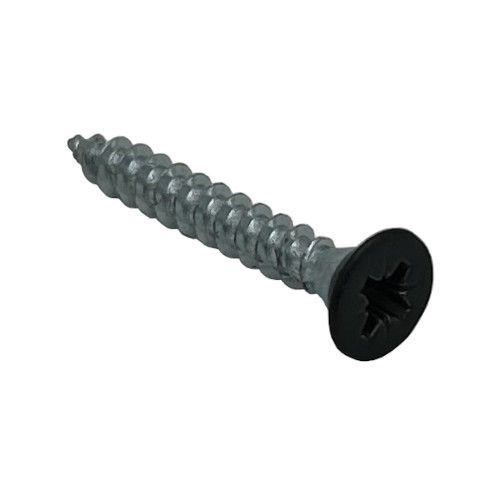

Skrūve ar zeņķa galvu, 4x30 mm, melni krāsota
Code: SB00006945

Art. Nr.: FOR-S17-4x30

Price:

From €0.10

In Stock: 14 pc.

Quantity:

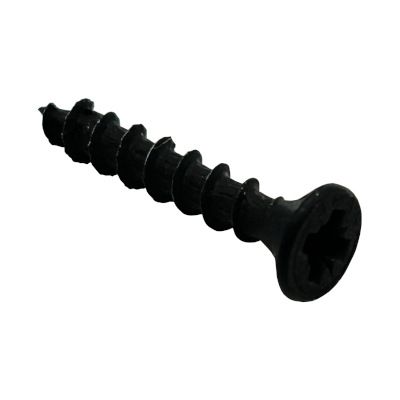

Countersunk head screw, black, 4x25 mm
Code: SB00007216

Art. Nr.: 2250103

Price:

From €0.18

In Stock: 690 pc.

Quantity:

Can be ordered in full packages of 1 pcs.

Technical details

Manufacturer	AGB
face plate finish	matēti hromēta / melna / balta
face plate length	196 mm
face plate shape	rounded
face plate width	18 mm
leaf material	wood
door direction	universal use for DIN right and left hand doors
bolt projection	12 mm
possible spindle depth	50 / 60 mm
magnetic attraction force	adjustable 20-40 N
