Sanitary booth hardware system SM A19 with round frame tubes

Product code
SM-A19
JNF View catalogue of manufacturer
Sanitary booth hardware system SM A19 with round frame tubes | SBUNPARTNERI.lv
From €68.53
  • The basic system configurator includes standard length (2000 mm) frame tubes, panel supports and hinges.
  • Longer tubes and other system components can be selected in the "Additional products" section of the e-shop.
  • Detailed information on system assembly can be found in the "DESCRIPTION" section.
Reset selection
SM.010.A.19 Tubel for fastening panels, Ø19 mm, length 2000 mm, stainless steel satin   €39.47
Code: SB00026238
Art. Nr.: SM010A192000
Out of stock. Estimated delivery time: 6 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
Adjustable panel support for panels 10-13 mm   €22.09
Can be ordered in full packages of pcs.
HPL hinge SM.005/SM.006   €6.97
Can be ordered in full packages of pcs.

Price as configured €68.53

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Sanitary booth hardware system SM A19

Manufacturer - JNF (Portugal)

  • modular stainless steel hardware system for construction of sanitary booth
  • suitable for WC, changing, fitting, and other indoor cabins with hinged doors
  • compatible with high-pressure laminate (HPL) panels with a thickness of 10 mm or 13 mm
  • the system guarantees the necessary stability, but with less impact tham traditional hardware
  • frame tube of round profile Ø19 mm, thickness: 1.2 mm
  • adjustable feet, fixing on the floor through a strong metallic base
  • hinges for HPL panels suitable for medium and heavy loads: standard hinge or self-closing hinge with a spring and adjustable closing force
  • door latches and various shaped handles are available
  • material: stainless steel EN 1.4301 (AISI 304) satin
  • on request: stainless steel with PVD coating: titanium, gold, copper and black

System architecture

  1. Feet
  2. Hinges
  3. Latches
  4. Handles
  5. Hooks
  6. Tube and connectores
  7. Panel holders

1. FEET

  • floor-mounted panel supports with a round profile for panels with a thickness of 10-13 mm
  • adjustable height: SM.017: 120 - 150 mm / SM.017.XL: 120 - 180 mm
  • strong metallic base
  • the height is adjustable even with the base already fixed on the floor and the panel on the support
SM.017
SM.017.XL

2. HINGES

  • SM.006.B - HPL hinge for heavy duty use with high resistance bearings
  • SM.005.B - HPL hinge for medium use, visible holes
  • SM.005.C - Self-closing HPL hinge for medium use, with spring, visible holes
  • SM.005.E - Self-closing HPL hinge for medium use, with spring, concealed fixing (covers included)
  • SM.005.F - HPL hinge for medium use, with spring, concealed fixing (covers included)
SM.006.B
SM.005.B
SM.005.C
SM.005.E/F

3. LATCHES

  • SM.031 Bathroom latch with indicator. Internal latch with handle that simultaneously serves as knob..
  • SM.060 Bathroom latch with indicator.
  • SM.030 Bathroom latch with colour indicator. Emergency open from the outside with coin.
  • SM.029 Bathroom latch with colour indicator. Emergency open from the outside with triangular key.
  • SM.035 Sliding latch/knob
SM.031
SM.060
SM.029 / SM.030
SM.035

4. HANDLES

Various shaped double door knobs with antivandalism fixing.

5. HOOK / DOOR STOP

SM.008 Bag or clothing hanger with a door stop function. Concealed fastening.
IN.75.051.D
IN.75.050.D
IN.75.042
IN.75.041
IN.75.040
SM.008

6. FRAME TUBE AND CONNECTORS

  • Round profile frame tube SM.010.A.19
    • diameter: 19 mm
    • length: 2000 / 3000 / 6000 mm
    • thickness: 1.2 mm
    • tube connector SM.010.C
  • Cylindrical shaped tube connector: SM.032.19 - for connecton at 90º / SM.033.19 - for connecton at 90º and 180º
  • Upper panel holders: SM.022 un SM.022.19
  • Wall mountung tube support SM.011.19
SM.010.A.19 / SM.010.C
SM.032.19
SM.033.19
SM.022
SM.002.19
SM.011.19

7. PANEL HOLDERS

SM.065
SM.004
SM.024
SM.034
SM.014
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. SM.010.A.19 Tubel for fastening panels, Ø19 mm, length 2000 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.010.A.19 Tubel for fastening panels, Ø19 mm, length 2000 mm, stainless steel satin
    Code: SB00026238
    Art. Nr.: SM010A192000
    Price:
    From €39.47
    In Stock: 0 pc.
    Visma Quote
  2. SM.017 Panel support 10-13 mm, adjustable height 120-150 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.017 Panel support 10-13 mm, adjustable height 120-150 mm, stainless steel satin
    Code: SB00019688
    Art. Nr.: SM017
    Price:
    From €22.09
    In Stock: 0 pc.
    Visma Quote

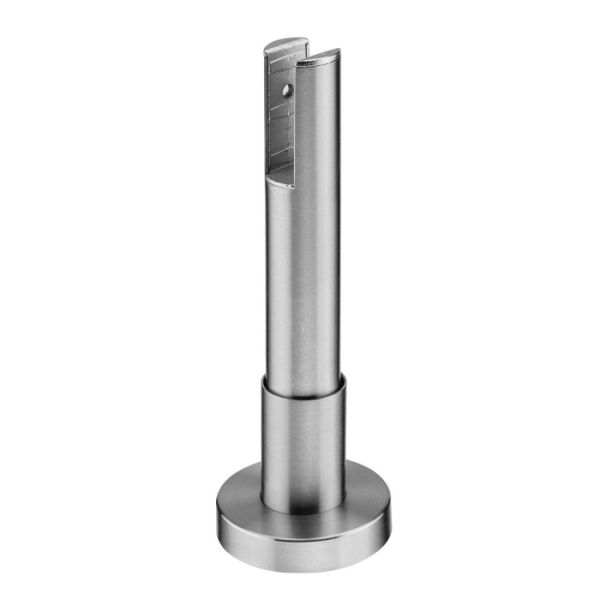

  3. SM.017.XL Panel support 10-13 mm, adjustable height 120-180 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.017.XL Panel support 10-13 mm, adjustable height 120-180 mm, stainless steel satin
    Code: SB00025793
    Art. Nr.: SM017XL
    Price:
    From €28.36
    In Stock: 0 pc.
    Visma Quote
  4. SM.005.E Self-closing hinge with spring for medium use, 90x56 mm, hidden holes, stainless steel satin | SBUNPARTNERI.lv
    SM.005.E Self-closing hinge with spring for medium use, 90x56 mm, hidden holes, stainless steel satin
    Code: SB00026241
    Art. Nr.: SM005E
    Price:
    From €10.77
    In Stock: 0 pc.
    Visma Quote
  5. SM.005.F Hinge without spring for medium use, 90x56 mm, fidden holes, stainless steel satin | SBUNPARTNERI.lv
    SM.005.F Hinge without spring for medium use, 90x56 mm, fidden holes, stainless steel satin
    Code: SB00026240
    Art. Nr.: SM005F
    Price:
    From €10.53
    In Stock: 0 pc.
    Visma Quote
  6. SM.005.C Self-closing hinge with spring, visible holes, 90x52 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.005.C Self-closing hinge with spring, visible holes, 90x52 mm, stainless steel satin
    Code: SB00025080
    Art. Nr.: SM005C
    Price:
    From €10.65
    In Stock: 0 pc.
    Visma Quote
  7. SM.005.B Hinge without spring for medium use, visible holes, 90x52 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.005.B Hinge without spring for medium use, visible holes, 90x52 mm, stainless steel satin
    Code: SB00025796
    Art. Nr.: SM005B
    Price:
    From €6.97
    In Stock: 0 pc.
    Visma Quote
  8. SM.006.B Hinge without spring for high use, visible holes, 90x65 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.006.B Hinge without spring for high use, visible holes, 90x65 mm, stainless steel satin
    Code: SB00025800
    Art. Nr.: SM006B
    Price:
    From €11.57
    In Stock: 0 pc.
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. SM.010.A.19 Tube for fastening panels, Ø19 mm, length 3000 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.010.A.19 Tube for fastening panels, Ø19 mm, length 3000 mm, stainless steel satin
    Code: SB00026237
    Art. Nr.: SM010A193000
    Price:
    From €56.63
    In Stock: 0 pc.
    Visma Quote

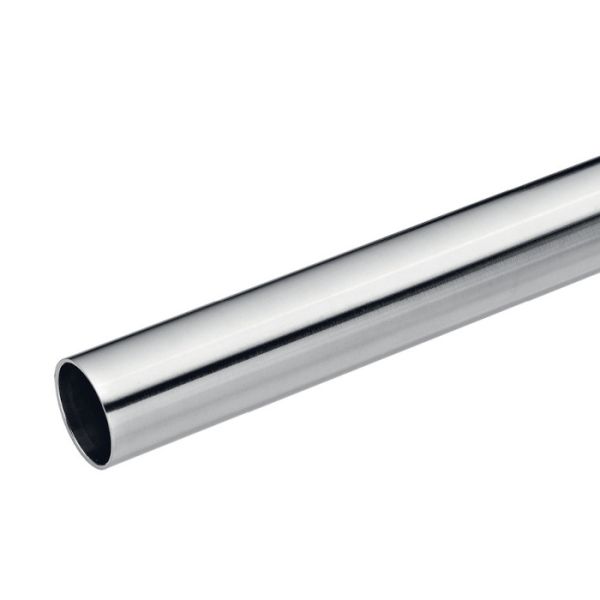

  2. SM.010.A.19 Tube for fastening panels, Ø19 mm, length 6000 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.010.A.19 Tube for fastening panels, Ø19 mm, length 6000 mm, stainless steel satin
    Code: SB00026236
    Art. Nr.: SM010A196000
    Price:
    From €113.11
    In Stock: 0 pc.
    Visma Quote
  3. SM.029 Bathroom latch with indicator, emergency opening from the outside with triangular key, stainless steel satin | SBUNPARTNERI.lv
    SM.029 Bathroom latch with indicator, emergency opening from the outside with triangular key, stainless steel satin
    Code: SB00026229
    Art. Nr.: SM029
    Price:
    From €28.73
    In Stock: 0 pc.
    Visma Quote
  4. SM.030 WC cubicle latch with color indicator, emergency opening with coin, stainless steel | SBUNPARTNERI.lv
    SM.030 WC cubicle latch with color indicator, emergency opening with coin, stainless steel
    Code: SB00023691
    Art. Nr.: SM030
    NAV PASŪTĀMS! Pieejams tikai noliktavā esošais daudzums.
    Price:
    From €29.98
    In Stock: 4 pc.
  5. SM.031 Internal latch/handle with indicator, stainless steel satin | SBUNPARTNERI.lv
    SM.031 Internal latch/handle with indicator, stainless steel satin
    Code: SB00014331
    Art. Nr.: SM031
    Price:
    From €39.11
    In Stock: 0 pc.
    Visma Quote
  6. SM.060 Bathroom latch with indicator, stainless steel satin | SBUNPARTNERI.lv
    SM.060 Bathroom latch with indicator, stainless steel satin
    Code: SB00026221
    Art. Nr.: SM060
    Price:
    From €31.34
    In Stock: 0 pc.
    Visma Quote
  7. SM.035 Sliding bathroom latch, stainless steel satin | SBUNPARTNERI.lv
    SM.035 Sliding bathroom latch, stainless steel satin
    Code: SB00026225
    Art. Nr.: SM035
    Price:
    From €28.73
    In Stock: 0 pc.
    Visma Quote
  8. IN.75.040 Double door knob 30x30 mm, with antivandalism fixing, stainless steel satin | SBUNPARTNERI.lv
    IN.75.040 Double door knob 30x30 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026270
    Art. Nr.: IN75040
    Price:
    From €24.49
    In Stock: 0 pair
    Visma Quote
  9. IN.75.041 Double door knob 30x34 mm, with antivandalism fixing, stainless steel satin | SBUNPARTNERI.lv
    IN.75.041 Double door knob 30x34 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026269
    Art. Nr.: IN75041
    Price:
    From €24.49
    In Stock: 0 pair
    Visma Quote
  10. IN.75.042 Double door knob Ø37 mm, with antivandalism fixing, stainless steel satin | SBUNPARTNERI.lv
    IN.75.042 Double door knob Ø37 mm, with antivandalism fixing, stainless steel satin
    Code: SB00021378
    Art. Nr.: IN75042
    Price:
    From €24.49
    In Stock: 0 pair
    Visma Quote
  11. IN.75.050.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin | SBUNPARTNERI.lv
    IN.75.050.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026267
    Art. Nr.: IN75050D
    Price:
    From €73.42
    In Stock: 0 pair
    Visma Quote
  12. IN.75.051.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin | SBUNPARTNERI.lv
    IN.75.051.D Double door knob 150x32 mm, with antivandalism fixing, stainless steel satin
    Code: SB00026266
    Art. Nr.: IN75051D
    Price:
    From €73.42
    In Stock: 0 pair
    Visma Quote
  13. SM.008 Hook/stop with concealed fixing on wall, 76mm, stainless steel satin | SBUNPARTNERI.lv
    SM.008 Hook/stop with concealed fixing on wall, 76mm, stainless steel satin
    Code: SB00026239
    Art. Nr.: SM008
    Price:
    From €9.27
    In Stock: 0 pc.
    Visma Quote

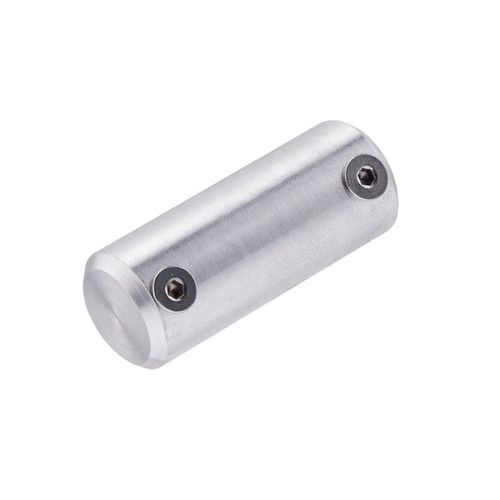

  14. SM.010.C.19 Tube connector Ø19 mm, aluminium | SBUNPARTNERI.lv
    SM.010.C.19 Tube connector Ø19 mm, aluminium
    Code: SB00026235
    Art. Nr.: SM010C19
    Price:
    From €7.09
    In Stock: 0 pc.
    Visma Quote

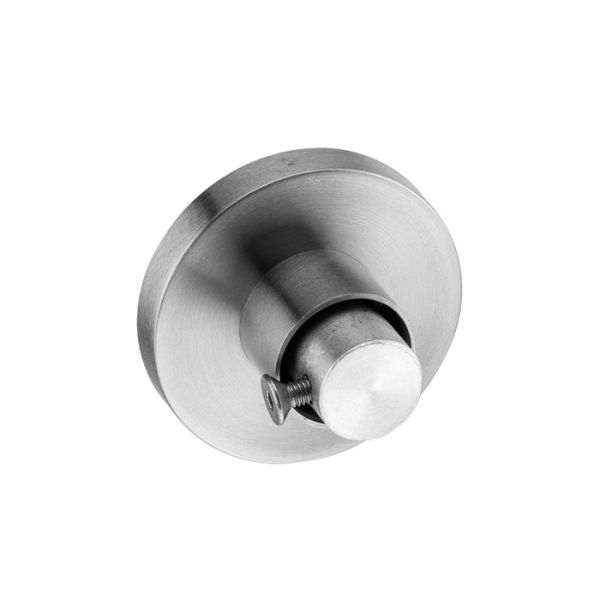

  15. SM.011.19 Wall mounting tube support Ø19 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.011.19 Wall mounting tube support Ø19 mm, stainless steel satin
    Code: SB00026233
    Art. Nr.: SM01119
    Price:
    From €11.66
    In Stock: 0 pc.
    Visma Quote

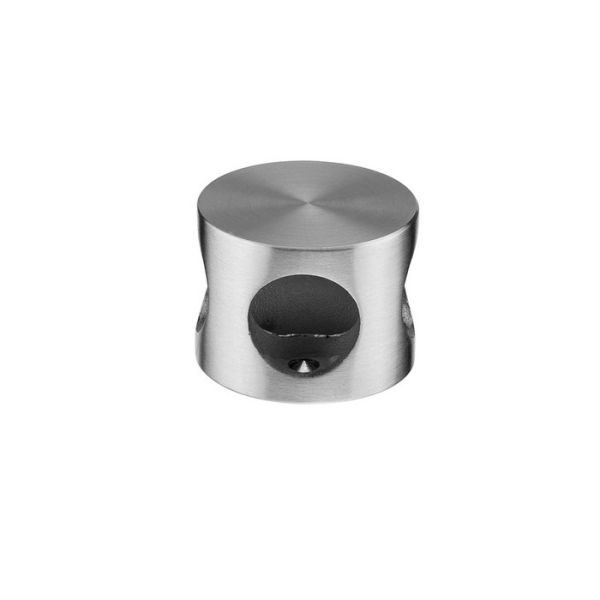

  16. SM.032.19 Tube connector 90º, for Ø19 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.032.19 Tube connector 90º, for Ø19 mm, stainless steel satin
    Code: SB00026228
    Art. Nr.: SM03219
    Price:
    From €20.13
    In Stock: 0 pc.
    Visma Quote

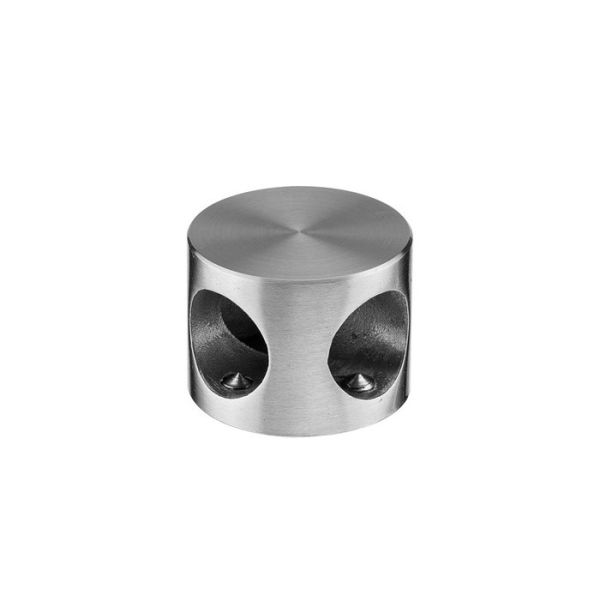

  17. SM.033.19 Tube connector 90º and 180º for Ø19 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.033.19 Tube connector 90º and 180º for Ø19 mm, stainless steel satin
    Code: SB00026227
    Art. Nr.: SM03319
    Price:
    From €20.93
    In Stock: 0 pc.
    Visma Quote

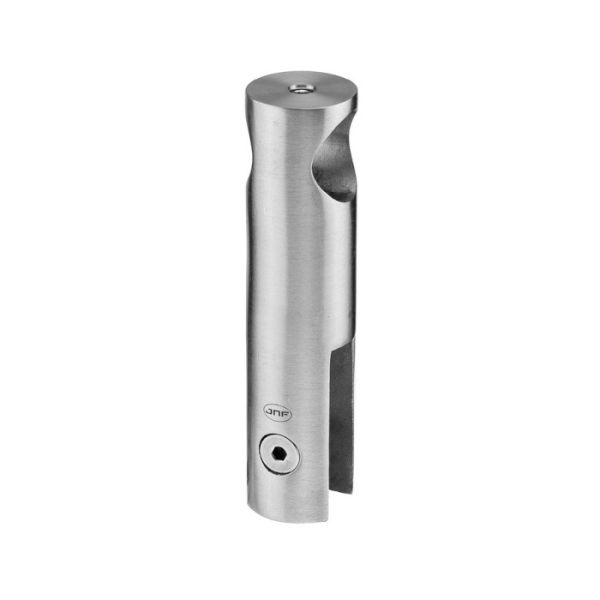

  18. SM.022 Upper panel holder for tube with 13,5 mm panels, stainless steel satin | SBUNPARTNERI.lv
    SM.022 Upper panel holder for tube with 13,5 mm panels, stainless steel satin
    Code: SB00026231
    Art. Nr.: SM022
    Price:
    From €26.67
    In Stock: 0 pc.
    Visma Quote

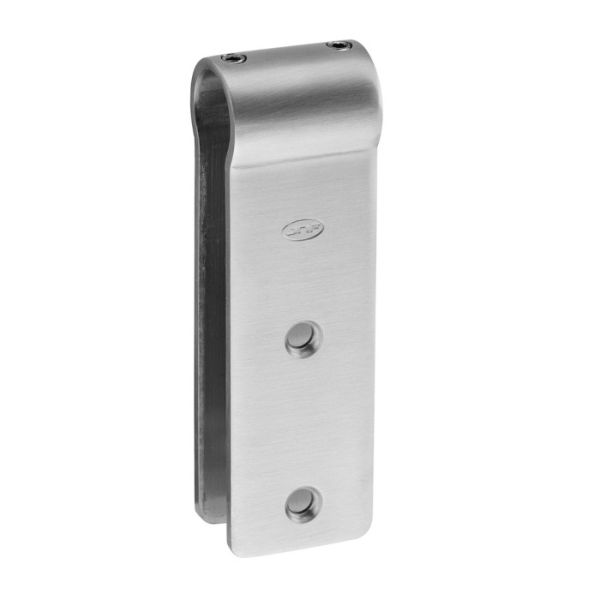

  19. SM.002.19 Upper panel holder for 13mm tube, stainless steel satin | SBUNPARTNERI.lv
    SM.002.19 Upper panel holder for 13mm tube, stainless steel satin
    Code: SB00026243
    Art. Nr.: SM00219
    Price:
    From €6.66
    In Stock: 0 pc.
    Visma Quote
  20. SM.004 Panel holder 57x50 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.004 Panel holder 57x50 mm, stainless steel satin
    Code: SB00026242
    Art. Nr.: SM004
    Price:
    From €2.76
    In Stock: 0 pc.
    Visma Quote
  21. SM.014 L-shape holder for 13mm panels, 54x50 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.014 L-shape holder for 13mm panels, 54x50 mm, stainless steel satin
    Code: SB00026232
    Art. Nr.: SM014
    Price:
    From €3.34
    In Stock: 0 pc.
    Visma Quote
  22. SM.024 Holder for 13 mm panels, 50x50 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.024 Holder for 13 mm panels, 50x50 mm, stainless steel satin
    Code: SB00026230
    Art. Nr.: SM024
    Price:
    From €2.64
    In Stock: 0 pc.
    Visma Quote
  23. SM.024 T-shape holder for 13 mm panels, 68x50x55 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.024 T-shape holder for 13 mm panels, 68x50x55 mm, stainless steel satin
    Code: SB00026226
    Art. Nr.: SM034
    Price:
    From €3.68
    In Stock: 0 pc.
    Visma Quote
  24. SM.065 Side holder for 13 mm panels, 30x32 mm, stainless steel satin | SBUNPARTNERI.lv
    SM.065 Side holder for 13 mm panels, 30x32 mm, stainless steel satin
    Code: SB00025079
    Art. Nr.: SM065
    Price:
    From €12.58
    In Stock: 0 pc.
    Visma Quote
Manufacturer JNF
door type for hinged doors
profile diameter 19 mm
profile shape round
material stainless steel
leaf material HPL laminate
hinge shape rounded
hinge type concealed, self-closing hinge
purpose for sanitary booths
Panel thickness 10 - 13 mm
feet shape cylindrical
