Manual flush bolt ASSA 1396

Product code
ASSA1396

From €39.88

Reset selection
ASSA 1396 manual flush bolt   €39.88
Code: SB00009154
In Stock. Available: 8 gab.

Price as configured €39.88

kit
The selected product is currently out of stock.

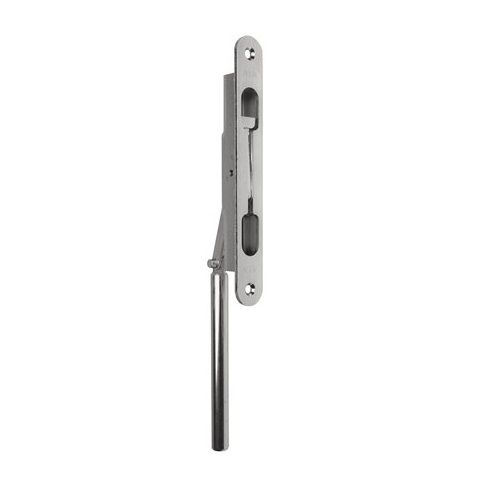

Manual flush bolt ASSA 1396
Manufacturer - ASSA ABLOY

  • manual single-action
  • fixes the passive leaf in wooden, steel or aluminium double doors
  • bolt Ø: 12 mm
  • bolt throw: 25 mm
  • operated by pivot arm
  • face plate: 22 mm
  • adjustable distance between face plate to bolt centre: 30-36 mm
  • material: steel, suitable for fire safety doors
  • surface finish: light galvanised
  • compatible with leaf guide
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. ASSA 1396 manual flush bolt
    ASSA 1396 manual flush bolt
    Code: SB00009154
    Art. Nr.: 356286100057
    Price:
    From €39.88
    In Stock: 8 pc.
  2. Guide tube for flush bolt ASSA 2396
    Guide tube for flush bolt ASSA 2396
    Code: SB00009234
    Art. Nr.: 813741100057
    Price:
    From €11.87
    In Stock: 0 pc.
adjustment adjustable distance from face plate to bolt centre
width 22 mm
base assortment Yes
casing/front plate length 173 mm
deadbolt dimensions Ø12 mm
deadbolt throw 25 mm
fire safety suitable for fire safety doors
flush bolt type upper/lower flush bolt
installation type flush-mounted
leaf material wood/PVS/metal
load capacity increased
Manufacturer ASSA
material steel / stainless steel
operation type manual flush bolt
purpose for double-leaf doors and window profiles
set strike plate / floor bushing must be ordered separately
