Modular security cylinder JNF S22 with knob B7

Product code
S22-B7
JNF View catalogue of manufacturer
main product photo
From €31.75

To purchase a modular cylinder, please specify the required cylinder length in the comment section below the colour/finish option.

The cylinder will be assembled at the SB UN PARTNERI workshop to the desired length by combining the necessary extension modules.

Fee for cylinder assembly: 5 EUR + VAT (please include service item PK67 in your order).

If you choose to purchase the cylinder in an unassembled state, the service fee does not apply.

Reset selection
Modular cylinder JNF S22 with knob connector   €28.14
Oval-shaped cylinder knob B7   €3.61

Price as configured €31.75

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

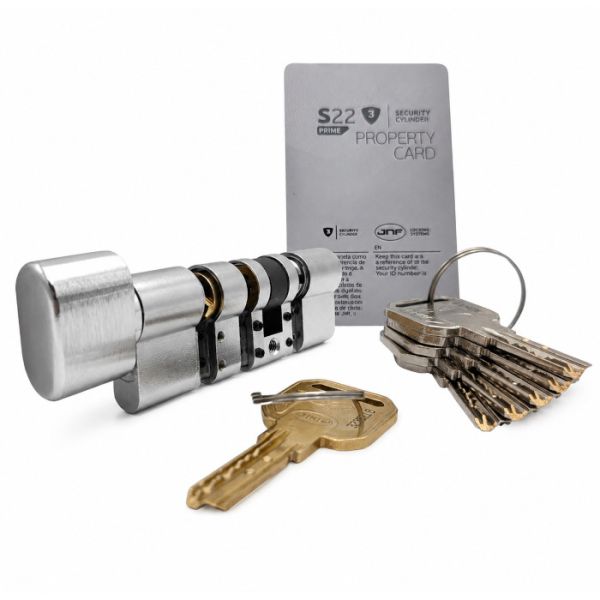

Modular security cylinder JNF S22 with knob B7

Manufacturer - JNF (Portugal)

  • modular european cylinder with oval-shaped knob B7
  • the high-precision modular construction allow a wide range of cylinder lengths while ensuring a fast response to custom requirements
  • the cylinder length is achieved by combining the required number of extension modules
  • 6 spring pins on each locking side
  • drill-, tamper-, torque- and pick-resistant
  • anti-bump technology
  • can be used in Masterkey and key-aliked systems
  • certified in accordance with EN 1303, classification code: 1 6 0 B 0 C 6 A
  • the number of key combinations - 300 000, exceeding the requirements of Grade 6 of EN 1303
  • suitable for use with fire- and smoke-rated doors in accordance with EN 1303
  • high corrosion resistance: grade C according to EN 1303 standard
  • temperature resistance: –25°C to +65°C
  • durability exceeds the EN 1303 Grade 6 requirement of 25,000 operating cycles
  • base cylinder length: 35-35 mm
  • extension increment: 5 mm
  • maximum length of one side: 115 mm
  • maximum total length: 230 mm
  • supplied with 3 brass keys.
  • supplied with 5 brass keys in a sealed package, a key code card, and 1 construction key (allows to change cylinder combination by changing the key without having to replace the cylinder itself, ideal for the construction phase of buildings)
  • key duplication requires a security card, can be ordered through an authorized dealer
  • material: brass / PVD coating for use in particularly harsh environments
  • available finishes:
    • satin nickel
    • titanum black PVD (TB)
    • titanum gold PVD (TG)
    • titanum copper PVD (TCO)
    • titanum chocolate PVD (TCH)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

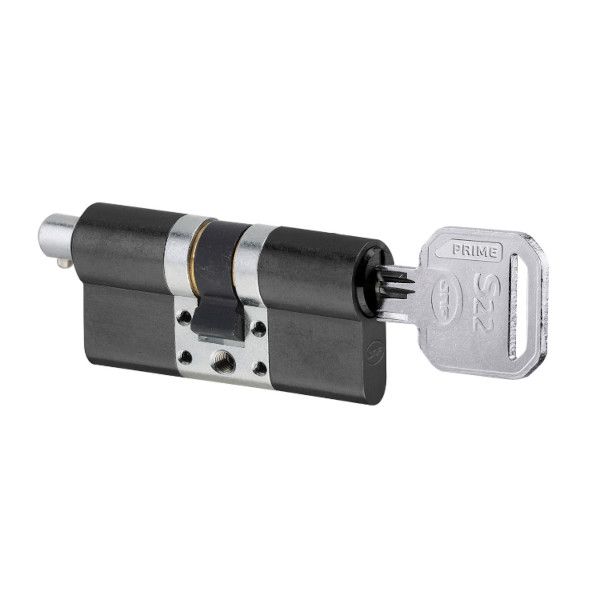

  1. S22 modular cylinder with knob connector P35-35mm, 1+5 keys, black PVD (TB)
    S22 modular cylinder with knob connector P35-35mm, 1+5 keys, black PVD (TB)
    Code: SB00030266
    Art. Nr.: IN19S22P3535SBTB
    Price:
    From €43.20
    In Stock: 0 pc.

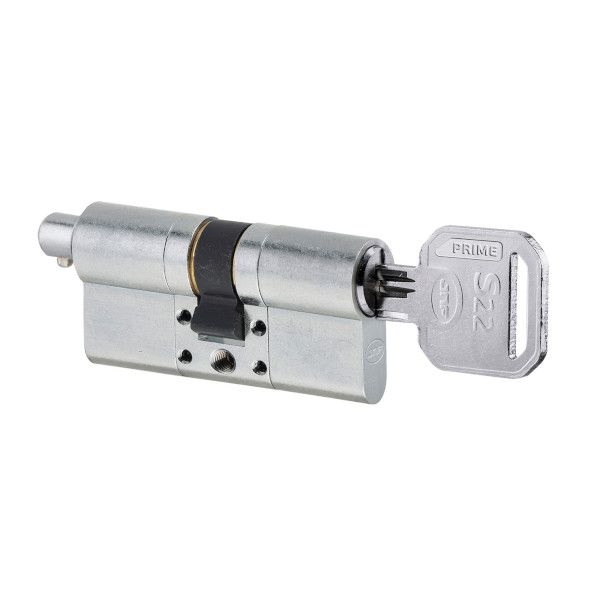

  2. S22 modular cylinder with knob connector P35-35mm, 1+5 keys, satin nickel
    S22 modular cylinder with knob connector P35-35mm, 1+5 keys, satin nickel
    Code: SB00030268
    Art. Nr.: IN19S22P3535SB
    Price:
    From €28.14
    In Stock: 9 pc.

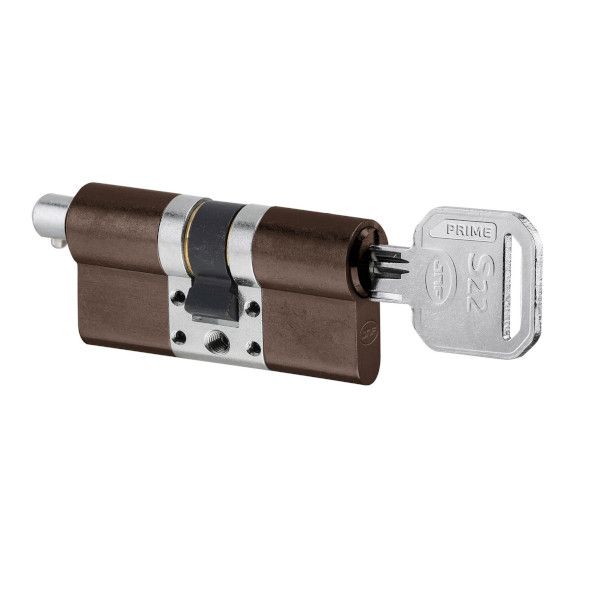

  3. S22 modular cylinder with knob connector P35-35mm, 1+5 keys, chocolate PVD (TCH)
    S22 modular cylinder with knob connector P35-35mm, 1+5 keys, chocolate PVD (TCH)
    Code: SB00030265
    Art. Nr.: IN19S22P3535SBTCH
    Price:
    From €43.20
    In Stock: 0 pc.

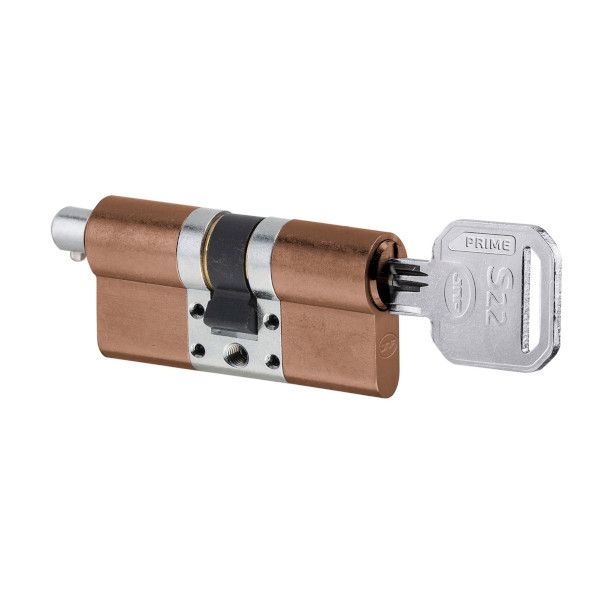

  4. S22 modular cylinder with knob connector P35-35mm, 1+5 keys, copper PVD (TCO)
    S22 modular cylinder with knob connector P35-35mm, 1+5 keys, copper PVD (TCO)
    Code: SB00030264
    Art. Nr.: IN19S22P3535SBTCO
    Price:
    From €43.20
    In Stock: 0 pc.

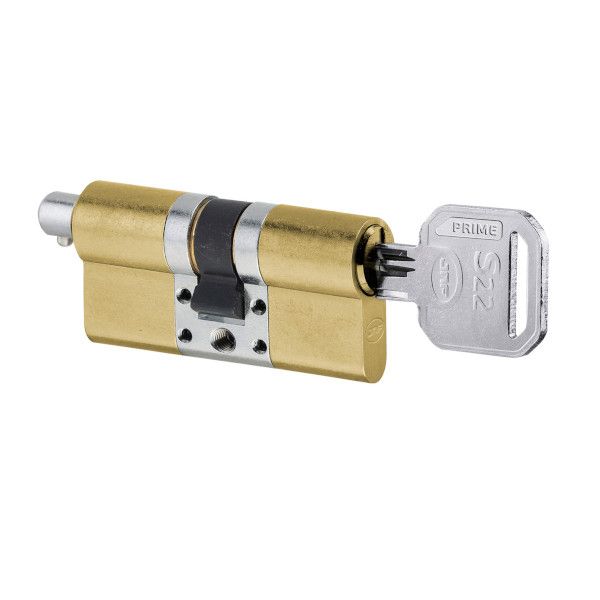

  5. S22 modular cylinder with knob connector P35-35mm, 1+5 keys, gold PVD (TG)
    S22 modular cylinder with knob connector P35-35mm, 1+5 keys, gold PVD (TG)
    Code: SB00030263
    Art. Nr.: IN19S22P3035SBTG
    Price:
    From €43.20
    In Stock: 5 pc.
  6. B7 Oval-shaped cylinder knob, black RAL9005
    B7 Oval-shaped cylinder knob, black RAL9005
    Code: SB00028075
    Price:
    From €5.49
    In Stock: 76 pc.
  7. B7 Oval-shaped cylinder knob, satin nickel
    B7 Oval-shaped cylinder knob, satin nickel
    Code: SB00028016
    Price:
    From €3.61
    In Stock: 73 pc.
  8. B7 Oval-shaped cylinder knob, chocolate PVD (TCH)
    B7 Oval-shaped cylinder knob, chocolate PVD (TCH)
    Code: SB00028204
    Price:
    From €9.49
    In Stock: 3 pc.
  9. B7 Oval-shaped cylinder knob, copper PVD (TCO)
    B7 Oval-shaped cylinder knob, copper PVD (TCO)
    Code: SB00028203
    Price:
    From €9.49
    In Stock: 3 pc.
  10. B7 Oval-shaped cylinder knob, gold PVD (TG)
    B7 Oval-shaped cylinder knob, gold PVD (TG)
    Code: SB00028202
    Price:
    From €9.49
    In Stock: 10 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Service - assembly of JNF modular profile cylinders
    Service - assembly of JNF modular profile cylinders
    Code: PK67
    Price:
    From €6.05
    In Stock: 0 pc.
  2. Service - profile cylinder adaption for equal locking system
    Service - profile cylinder adaption for equal locking system
    Code: PK16
    Price:
    From €9.99
    In Stock: 0 pc.
  3. S11 cylinder key template
    S11 cylinder key template
    Code: SB00028071
    Art. Nr.: IN19S11C
    Price:
    From €0.58
    In Stock: 105 pc.
  4. Service - key duplication
    Service - key duplication
    Code: PK19
    Price:
    From €3.51
    In Stock: 0 pc.
  5. JNF modular cylinder extensor profile 5mm
    JNF modular cylinder extensor profile 5mm
    Code: SB00028154
    Art. Nr.: IN19S1135
    Price:
    From €3.30
    In Stock: 220 pc.
  6. JNF modular cylinder extensor profile 10mm
    JNF modular cylinder extensor profile 10mm
    Code: SB00028155
    Art. Nr.: IN19S11310
    Price:
    From €4.57
    In Stock: 337 pc.
  7. JNF modular cylinder extensor profile 15mm
    JNF modular cylinder extensor profile 15mm
    Code: SB00028156
    Art. Nr.: IN19S11315
    Price:
    From €5.80
    In Stock: 305 pc.
  8. JNF modular cylinder extensor profile 20mm
    JNF modular cylinder extensor profile 20mm
    Code: SB00028157
    Art. Nr.: IN19S11320
    Price:
    From €7.07
    In Stock: 385 pc.
  9. JNF modular cylinder extensor rotor 5mm
    JNF modular cylinder extensor rotor 5mm
    Code: SB00028158
    Art. Nr.: IN19S1155
    Price:
    From €0.76
    In Stock: 229 pc.
  10. JNF modular extensor rotor 10mm
    JNF modular extensor rotor 10mm
    Code: SB00028159
    Art. Nr.: IN19S11510
    Price:
    From €1.02
    In Stock: 342 pc.
  11. JNF modular cylinder extensor rotor 15mm
    JNF modular cylinder extensor rotor 15mm
    Code: SB00028160
    Art. Nr.: IN19S11515
    Price:
    From €1.34
    In Stock: 306 pc.
  12. JNF modular cylinder extensor rotor 20mm
    JNF modular cylinder extensor rotor 20mm
    Code: SB00028161
    Art. Nr.: IN19S11520
    Price:
    From €1.66
    In Stock: 400 pc.
  13. JNF modular cylinder extensor interior preto 5mm
    JNF modular cylinder extensor interior preto 5mm
    Code: SB00028162
    Art. Nr.: IN19S1185
    Price:
    From €0.13
    In Stock: 251 pc.
  14. JNF modular cylinder extensor interior preto 10mm
    JNF modular cylinder extensor interior preto 10mm
    Code: SB00028163
    Art. Nr.: IN19S11810
    Price:
    From €0.13
    In Stock: 350 pc.
  15. JNF modular cylinder extensor interior preto 15mm
    JNF modular cylinder extensor interior preto 15mm
    Code: SB00028164
    Art. Nr.: IN19S11815
    Price:
    From €0.13
    In Stock: 313 pc.
  16. JNF modular cylinder extensor interior preto 20mm
    JNF modular cylinder extensor interior preto 20mm
    Code: SB00028165
    Art. Nr.: IN19S11820
    Price:
    From €0.13
    In Stock: 402 pc.
Manufacturer JNF
profile cylinder type cylinder with knob
door knob shape oval
locking cylinder standard Euro profile cylinder
anti-intruder security class A according to EN 1303
suitable for use in locking systems suitable for Masterkey and equal locking systems
number of locking lugs 6
extension increment 5 mm
number of keys 5 + 1 construction key
fire safety suitable for fire safety doors
cylinder length modular
minimum 1 side length 35 mm
maximum 1 side length 115 mm
maximum total length 230 mm
key duplication can be duplicated at distributor with security card
key duplication at SB UN PARTNERI Customer service centre can be duplicated on site
material brass
anti-corrosion resistance class C according to EN 1303 - very high
material properties (for specific finishes see tech. data) PVD coating - suitable for use in aggressive environments
