Mortise lock for emergency doors SSF FH 61 B+Plug-in-key REVERSE
Product code
MB00010118
All prices include VAT
From
€86.52
Only %1 left

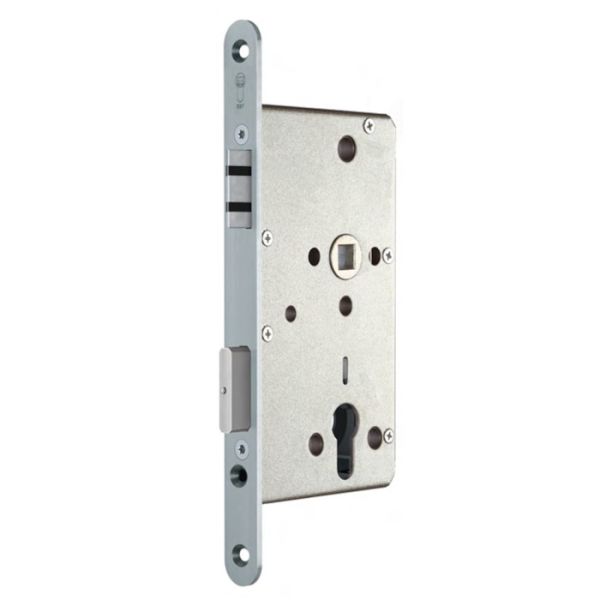

Mortice lock for emergency doors SSF FH61 B REVERSE
Manufacturer - SSF (Germany)
- mortice lock for single-leaf emergency exit and panic doors
- complies with the requirements of EN 179 and EN 1125
- suitable for use in fire-resistant doors
- anti-panic function B REVERSE
- Plug-in-key function – the key may remain in the cylinder; all types of cylinders can be used
- reinforced spring on both sides – handles can be used without an additional spring
- prepared for Euro-profile cylinders (PZ)
- follower and whisper latch made of silicon tombac
- deadbolt head made of die-cast zinc, nickel-plated
- fully enclosed, galvanised lock case
- optional: monitoring points for microswitches
- when the deadbolt is withdrawn, it is withdrawn earlier than the latch
- centre distance: 72 mm
- split follower for a 9 mm square spindle
- follower rotation angle: 30°
- backset: 55, 60 or 65 mm
- ronded faceplate: satin stainless steel
- faceplate dimensions: 20 or 24 × 235 mm
- designed for use with a compatible emergency exit lever handle set to EN 179 or a panic bar to EN 1125
Classification key in accordance with EN 12209
| 3 | M | 5 | 1 | 0 | G | 2 | B | A | 2 | 0 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
FH 61 PZ 65/72/24/9 mortise lock for emergency doors EN179 / 1125, function B+ Plug-in-key REVERSE, stainless steel, LEFTCode: SB00030427Art. Nr.: A6107 5L/541 RD/AP02Price:From €86.52In Stock: 0 pc. -
FH 61 PZ 65/72/24/9 mortise lock for emergency doors EN179 / 1125, function B+ Plug-in-key REVERSE, stainless steel, RIGHTCode: SB00030428Art. Nr.: A6107 5L/542 RD/AP03Price:From €86.52In Stock: 0 pc.
| Manufacturer | SSF |
|---|---|
| Series | FH61 |
| lock type | single-point lock for hinged doors |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors / for exterior doors |
| leaf material | for wooden and metal doors |
| load capacity | high |
| class as per EN 12209 (DIN 18251) | class 4 according to DIN 18251 (EN class 3) |
| suitable for emergency exits | complies with 179 and EN 1125 - emergency/panic door equipment |
| evacuation function | B |
| fire safety | complies with EN standard fire safety requirements |
| Compatibility standard | German (DIN) |
| possible spindle depth | 55 / 60 / 65 mm |
| door direction | when ordering please indicate door swing direction |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 72 mm |
| lock case | galvanised closed |
| latch | key-retractable |
| lock bolt material | nickel-coated |
| bolt projection | 20 mm |
| sound insulation | no |
| handle square spindle size | 9 mm |
| bundling options | lock compatible with split spindle |
| face plate shape | rounded |
| face plate width | 24 mm |
| face plate length | 235 mm |
| face plate finish | nerūsējošais tērauds |
