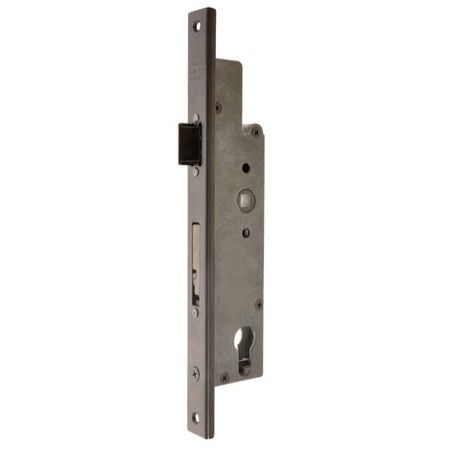

Mortise lock for profile frame doors SOBINCO 062
Product code
MB00010127
All prices include VAT
From
€57.48
Only %1 left
Mortise lock for profile frame doors SOBINCO 062
- locking type: PZ
- centre distance: 92 mm
- lock for profile frame doors
- reversible latch for right- / left-handed doors
- galvanized, enclosed lock case
- nickel-plated latch and deadbolt
- handle spindle follower: 8 mm
- faceplate: square-ended
- backset: 34 mm
- faceplate width: 22 x 6.5 mm
- faceplate length: 274 mm
- suitable for interior doors with medium to high frequency of use, as well as exterior doors
- classification code according to EN 12209: 3 H 7 0 0 C 1 B A 2 0
- available finish: stainless steel
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
SOBINCO 062 profile frame door lock, PZ 34/92/8/U22x6.5 mm, universal, stainless steelCode: SB00017716Art. Nr.: ZP-SO-062Price:From €57.48In Stock: 4 pc.
| door direction | adaptable to leaf direction |
|---|---|
| load capacity | high |
| Compatibility standard | German (DIN) |
| leaf material | for framed doors |
| possible spindle depth | 34 mm |
| purpose | for interior doors / for exterior doors |
| locking function | PZ - with profile cylinder hole |
| lock bolt | single turn |
| centre distance PZ | 92 mm |
| face plate finish | nerūsējošais tērauds |
| face plate length | 274 mm |
| handle square spindle size | 8 mm |
| lock bolt material | nickel-coated |
| lock operation | mechanical |
| lock case | galvanised closed |
| class as per EN 12209 (DIN 18251) | class 3 according to EN 122209 / DIN 18251 |
| latch material | nickel-coated |
| installation type | mortise |
| face plate shape | square |
| face plate width | 22 mm |
| sound insulation | no |
| lock type | single-point lock for hinged doors |
| fire safety | not suitable for fire safety doors |
