Panic fire-rated self-locking lock DINFIR3 E
Product code
MB00009868
All prices include VAT
From
€72.36
Only %1 left

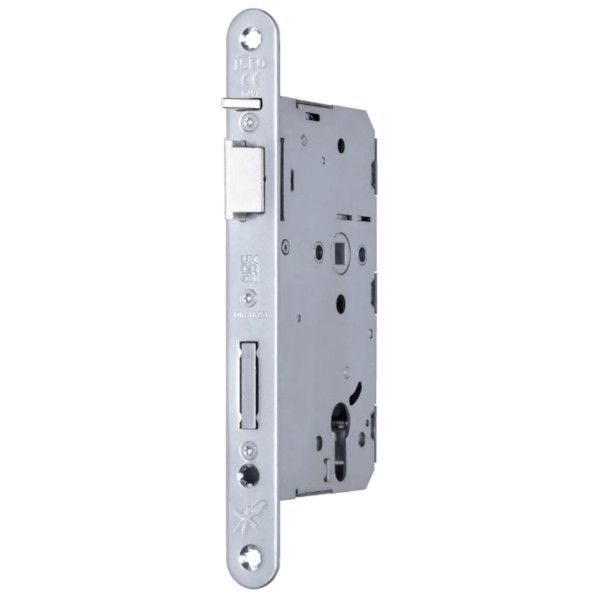

Panic fire-rated self-locking lock DINFIR3 E
Manufacturer - ISEO (Italy)
- panic fire-rated mortise lock with self-locking function
- complies with DIN 18251, EN 12209, EN 1125 and EN 179
- suitable for installation on EN 179 doors and on EN 1125 panic doors, when combined with certified handles
- certified for fire-resistant doors
- panic function E
- operation with European profile cylinder, with DIN cam
- centre distance: 72 mm
- available backsets: 55, 60, 65, 80, 100 mm
- closed, galvanised steel case and lock cover
- nickel-plated sintered steel latch and dead bolt
- 9 mm sintered steel handle follower set with 30° rotation
- 20 mm deadbolt with automatic reset
- caurejoši skrūvju caurumi rokturu garnitūras stiprināšanai
- through-holes for fitting handle and cylinder escutcheons
- the door direction must be specified when ordering
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Panic fire-rated self-locking lock, function E, PZ72/55/20, LEFTCode: SB00026741Art. Nr.: DINFIR3 PZ72/55-20-9-DLS-E-STPrice:From €72.36In Stock: 1 pc. -
Panic fire-rated self-locking lock, function E, PZ72/55/20, RIGHTCode: SB00026742Art. Nr.: DINFIR3 PZ72/55-20-9-DRS-E-STPrice:From €72.36In Stock: 1 pc.
-
Panic fire-rated self-locking lock, function E, PZ72/65/24, LEFTCode: SB00026697Art. Nr.: FH1769II-S-V-P-36-65-72-24-9-DLS-E-STPrice:From €72.36In Stock: 1 pc.
-
Panic fire-rated self-locking lock, function E, E funkcija, PZ72/65/24, RIGHTCode: SB00026698Art. Nr.: FH1769II-S-V-P-36-65-72-24-9-DRS-E-STPrice:From €72.36In Stock: 1 pc.
| Manufacturer | ISEO |
|---|---|
| door direction | when ordering please indicate door swing direction |
| load capacity | high |
| compatibility standard | German (DIN) |
| leaf material | for wooden and metal doors |
| bundling options | not compatible with EMS |
| possible spindle depth | 55 / 60 / 65 / 80 / 100 mm |
| latch material | nickel-coated steel |
| face plate finish | nerūsējošais tērauds |
| bolt projection | 20 mm |
| purpose | for interior doors / for exterior doors |
| locking function | PZ - with profile cylinder hole |
| face plate length | 235 mm |
| suitable for emergency exits | complies with 179 and EN 1125 - emergency/panic door equipment |
| class as per EN 12209 (DIN 18251) | class 3 according to EN 122209 / DIN 18251 |
| lock case | galvanised closed |
| lock operation | self-locking |
| lock bolt | single turn, automatic |
| handle square spindle size | 9 mm |
| evacuation function | E |
| installation type | mortise |
| face plate shape | rounded |
| fire safety | complies with EN standard fire safety requirements |
| lock type | single-point lock for hinged doors |
| sound insulation | no |
| face plate width | 20 / 24 mm |
| centre distance PZ | 72 mm |
